60×60 IP44 IP54 IP65 Integrated Waterproof Led Panel Light 60cmx60cm 54W

The IP65 integrated LED panel light is designed for applications in dusty or wet / damp environments where before this was just not possible with normal LED panels. This Panel Series is also designed to the good energy saving panel with 50,000 hours long life, and 90% uniformity across the emitting surface. It enables customers to recover initial investment quickly and greatly reduce the maintenance cost



  • Item: 600x600 IP65 Integrated LED Panel Light
  • Power: 36W /40W /48W /54W /60W /72W /80W
  • Input Voltage: AC220-240V/ AC85~265V
  • Color Temperature: Warm White, Natural White, Cool White
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Project Case

    Product Video

    1. Product Features of 60x60 IP65 Integrated Waterproof LED Panel Light.

    •IP65 led panel light can be apply in dusty, wet and damp environments. For waterproof led ceiling panel light, there are dimmable & CCT tunable, RGB&RGBW, UGR<19 functions for options.

    •IP65 integrated led panel light is different from normal frame led panel, it’s easy to be installed.

    •It uses high brightness low decay Epistar SMD2835/4014 led chips with better heat dissipation.

    •It uses PMMA light guide plate with light transmittance up to 95%. What's more, PMMA LGP will not turn yellow after using long years.

    •It uses PS diffusion plate with transmittance up to 92%.

    •We provide three years warranty for led panel light and led driver.



    2. Product Specification:

    Model No

    PL-6060-36W

    PL-6060-40W

    PL-6060-48W

    PL-6060-54W

    Power Consumption

    36 W

    40 W

    48 W

    54 W

    Luminous Flux (Lm)

    2880~3240lm

    3200~3600lm

    3840~4320lm

    4320~4860lm

    LED Qty(pcs)

      192 pcs

    204 pcs

    252 pcs

    300 pcs

    LED Type

    SMD 2835

    Color Temperature (K)

    2800 - 6500K

    Color

    Warm/Natural/Cool White

    Light Efficiency (lm/w)

    >80lm/w

    Dimension

    598*598*12mm

    Beam Angle (degree)

    >120°

    CRI

     >80Ra

    Power Factor

    >0.95

    Input Voltage

    AC85V - 265V

    Frequency Range (Hz)

    50 - 60Hz

    Working Environment

     Indoor

    Material of Body

    Aluminum alloy frame and PS Diffuser

    Frame Color RAL

    Pure white/RAL9016; Silver

    IP Rating

    IP65

    IK Grade

    IK06

    Operating Temperature

    -20°~65°

    Dimmable Solution

      Dali/0~10V/PWM/Triac Optional

    Life span

    50,000hours

    Warranty

    3 Years

    3. LED Panel Light Pictures:

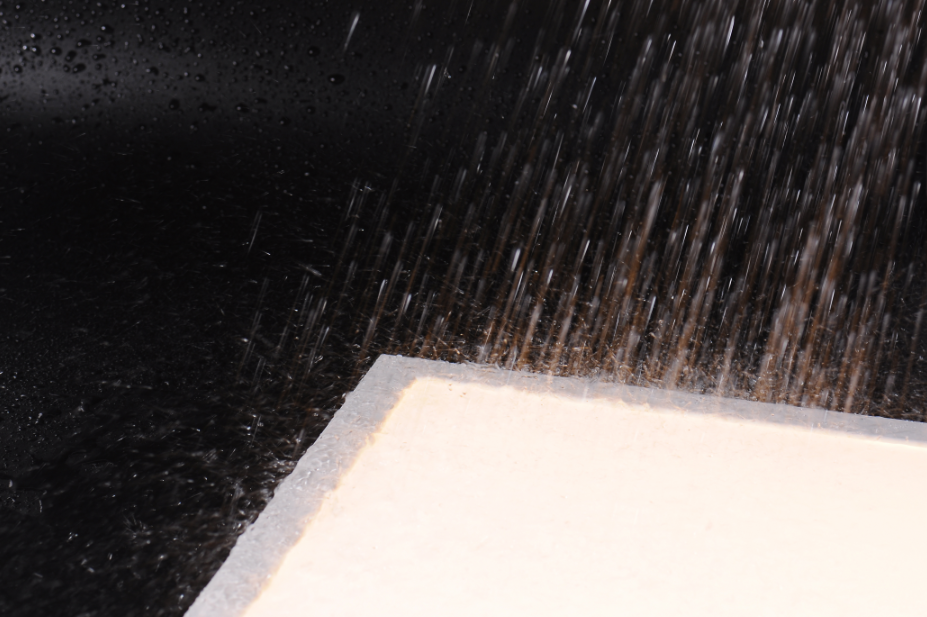

    1. IP65 led panel

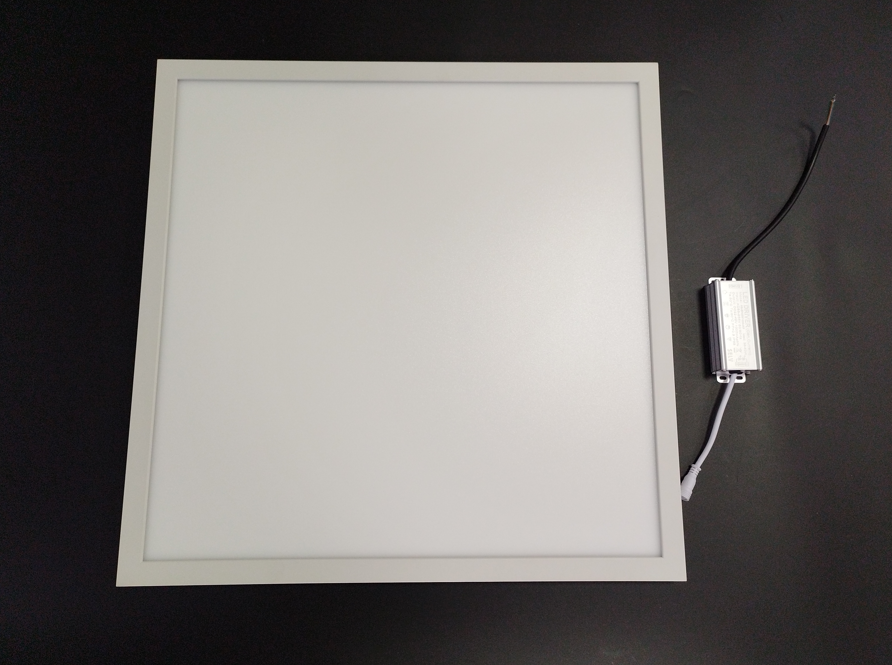

    2. IP65 led panel lamp

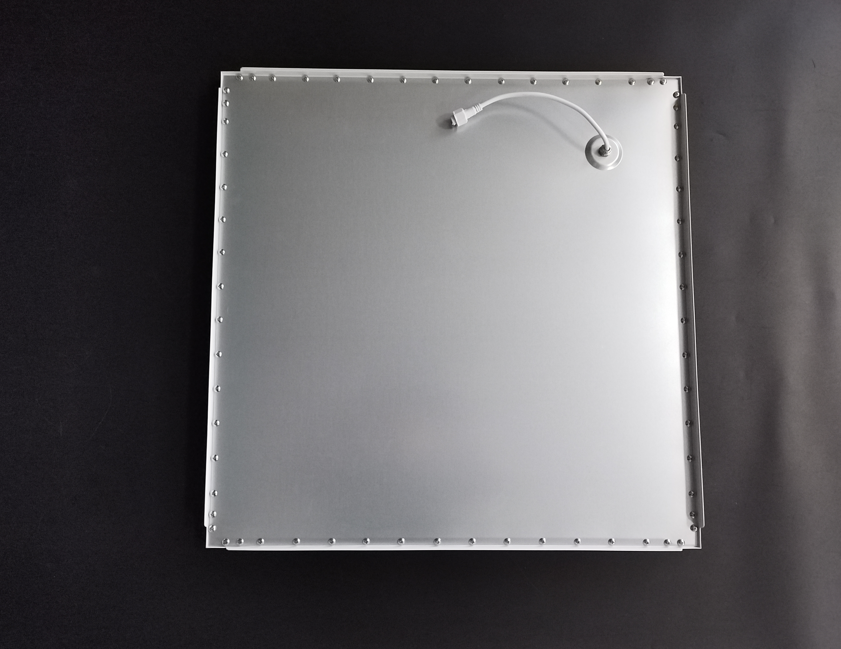

    3. ip65 wateproof led panel

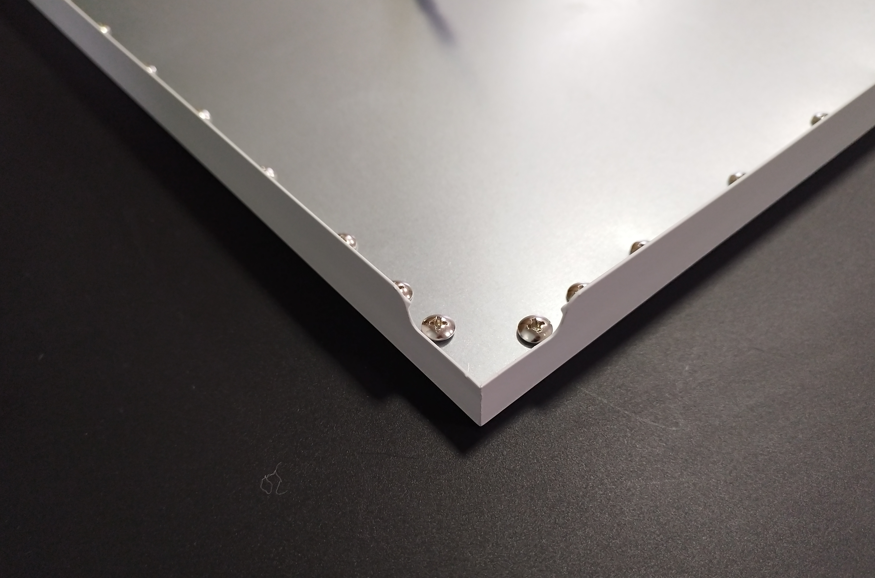

    4. ip65 rating led panel

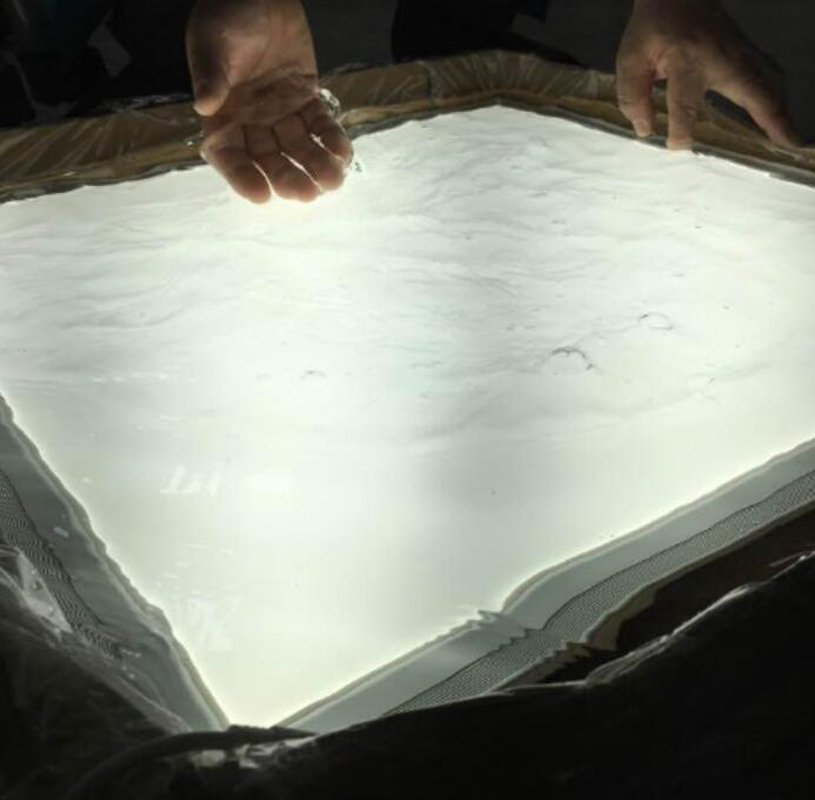

     6. Lightman Waterproof led panel light

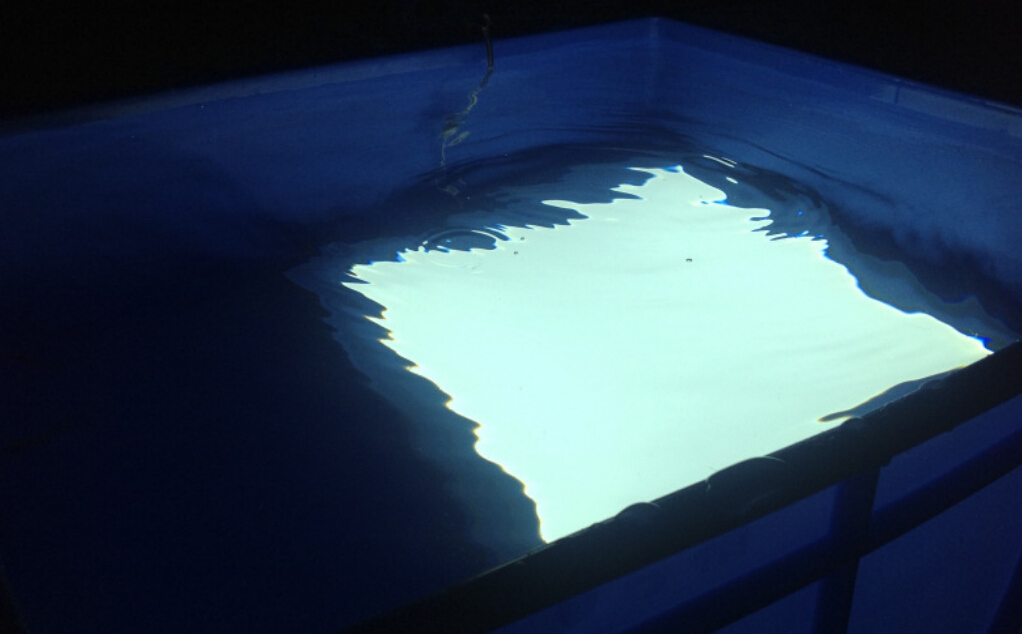

    7. ip65 wateproof led panel test


  • Previous:
  • Next:

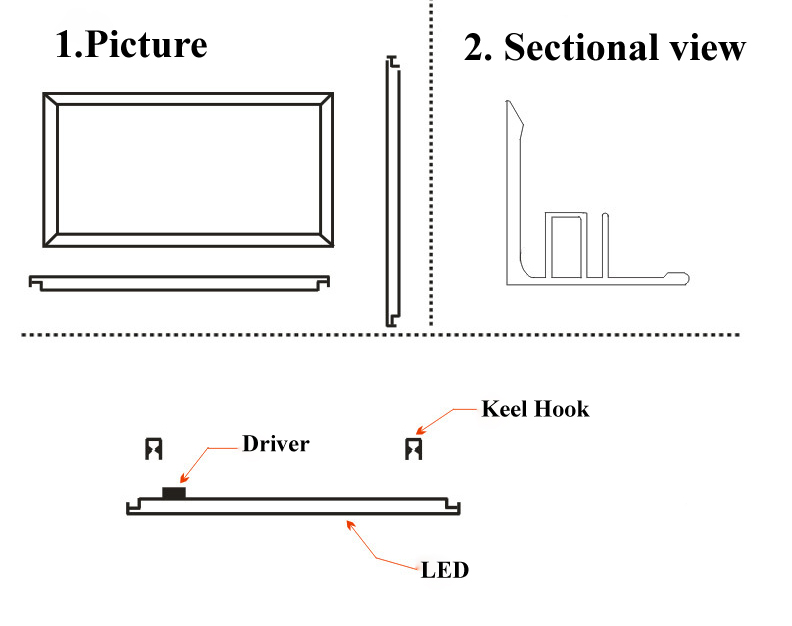

  • 8. installation guide

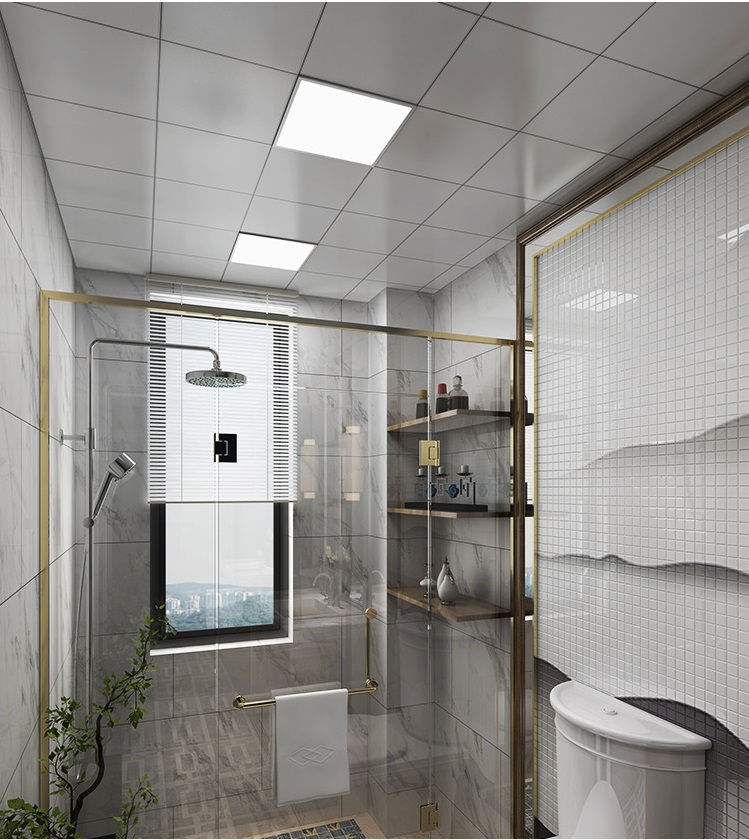

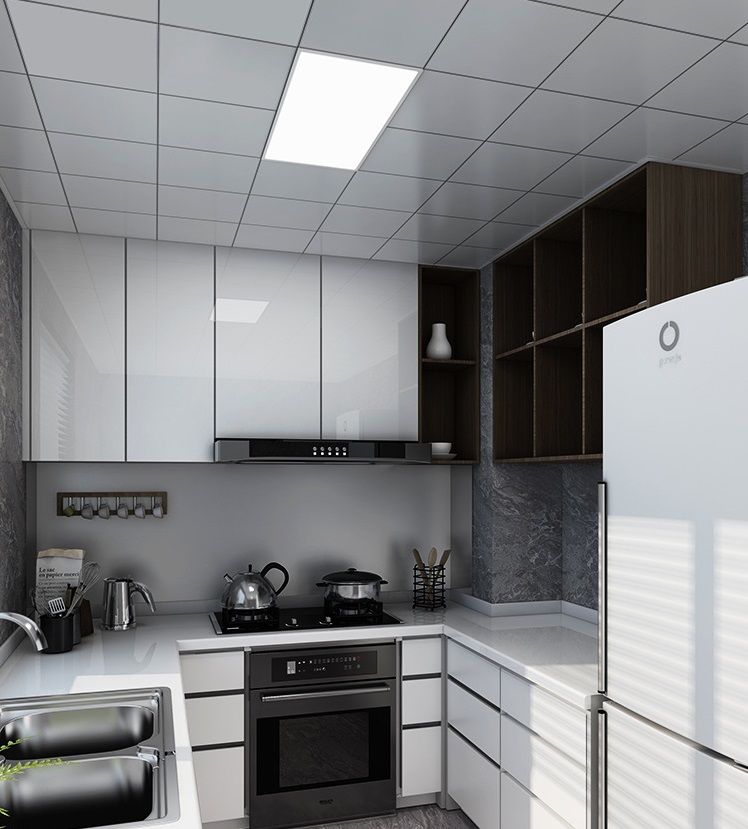

    9. IP65 led panel light project 10. waterproof led panel 600x600
