30×30 DMX512 Control Color Changing RGB RGBW RGBWW LED Panel Lighting

Laser engraved RGB&RGBW&RGBWW led panel light is a kind of LED lighting product, which has the advantages of simple structure, convenient installation, adjustable color, brightness and various modes. Its structure is mainly composed of LED lamp beads, controller, transparent panel, reflective material and heat dissipation material. And we can engrave different patterns according to customers requirement. So laser engraved RGB&RGBW&RGBWW led panel light can be widely used in home lighting, commercial lighting, entertainment venues, festivals and other occasions.

Item: Engraved RGB&RGBW&RGBWW LED Panel Light

Size: 600x600, 600x1200, 300x1200, 620x620, 300x600, 300x300.

Working Voltage: DC12V /DC24V

Dimmable: Color Changing RGB&RGBW&RGBWW Dimmable

Lifespan: ≥50000 Hours

Send email to us Download as PDF

Products categories

Product Detail

Installation Guide

Project Case

Product Video

1.Product Introduction of Engraved RGB&RGBW&RGBWW LED Panel Light.

•RGB&RGBW&RGBWW led panel light fixtures can be use 2.4G control system with anti interference ability. It can adjust the brightness and colors in the same time.

•For RGB&RGBW&RGBWW led panel light DMX512, it is connected with the USB interface of the computer and uses the computer’s operating interface to achieve the purpose of controlling the lamps. The operation is simple and the use is convenient.

• Compatible with IR/Wireless/Bluetooth/Zigbee/Tuya/DMX/WIFI control system.

• We can custom laser engrave different patterns according to customers requirement.

•We can provide 3 years warranty for multi color led panel lamp.

2. Product Parameter:

Model No	PL-6060-36W-RGB	PL-6262-40W-RGB	PL-30120-40W-RGB
Power Consumption	36W	40W	40W
Dimension (mm)	59559511mm	62062011mm	119529511mm
LED Qty (pcs)	175pcs	182pcs	182pcs
LED Type	SMD5050
Color	Multi Colors
Beam Angle (degree)	>120°
CRI	>80
LED Driver	Constant Voltage LED Driver
Output Voltage	DC12 / 24V
Input Voltage	AC 85V - 265V, 50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame
IP Rating	IP20
Operating Temperature	-25°~70°
Dimmable Way	RGB dimming
Installation Option	Recessed/Suspended/Surface Mounted
Life span	50,000hours
Warranty	3Years

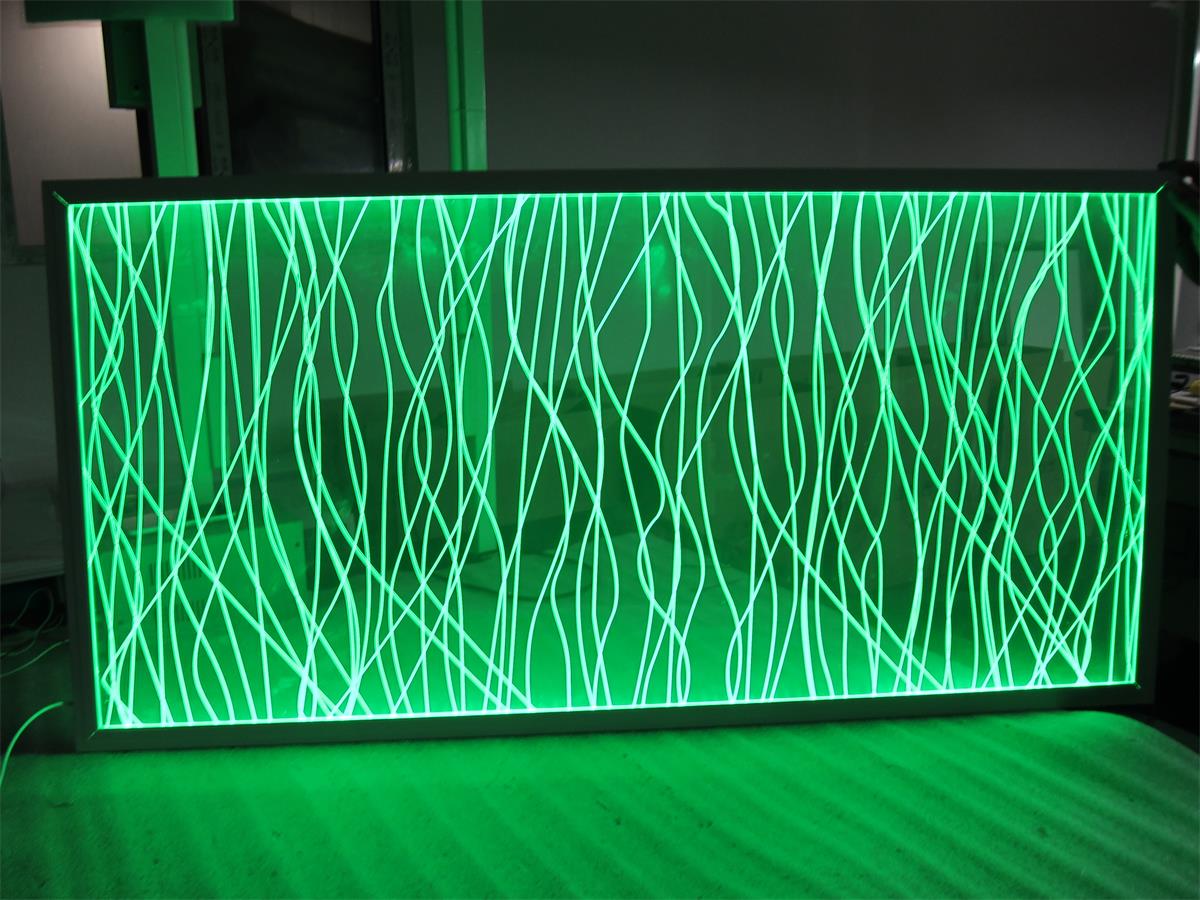

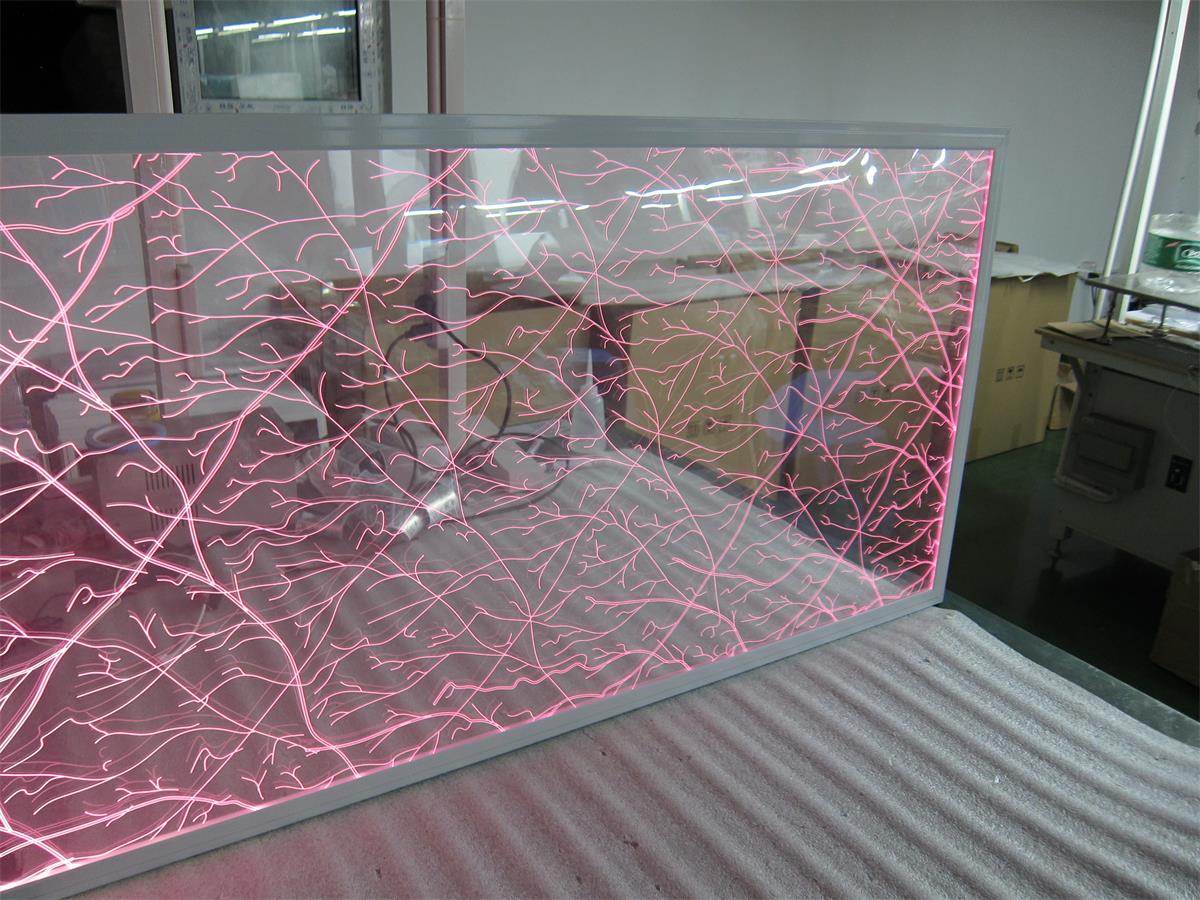

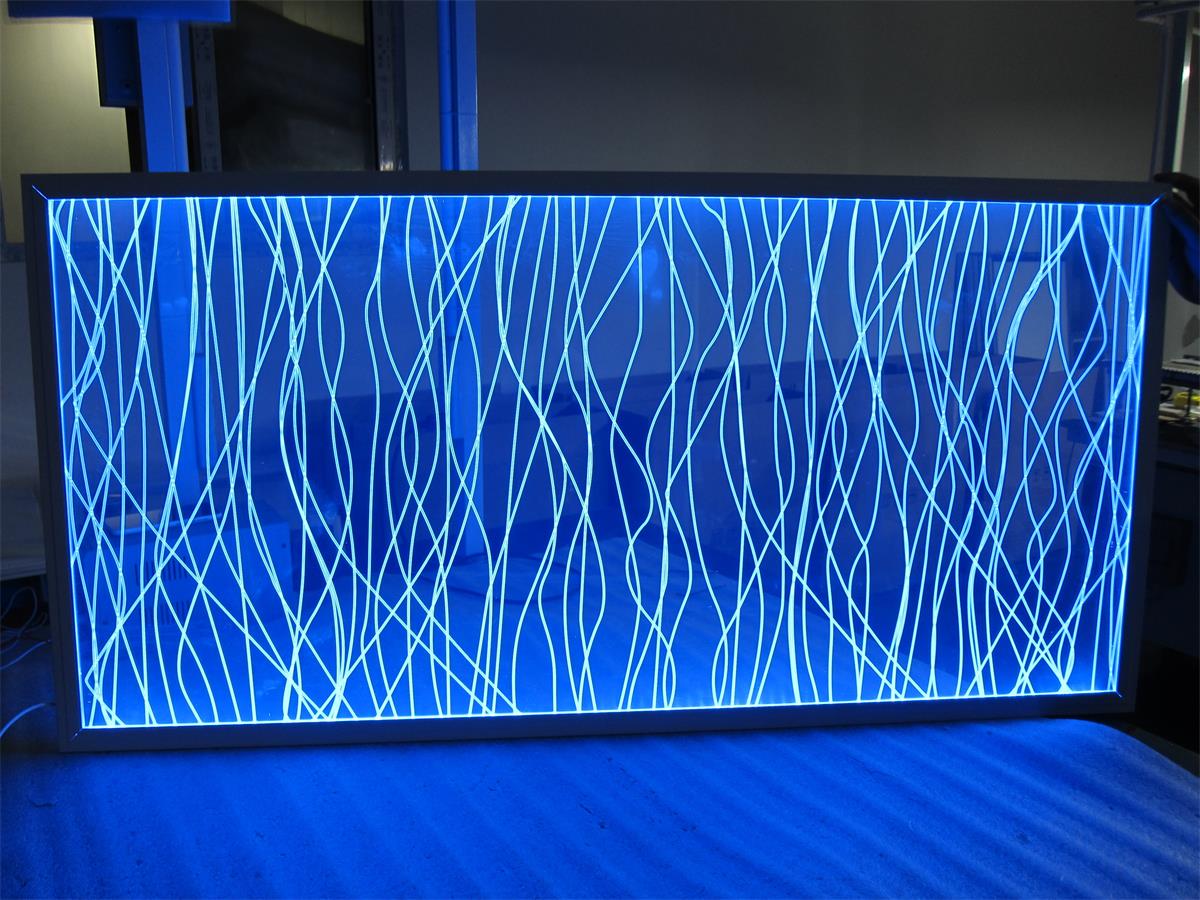

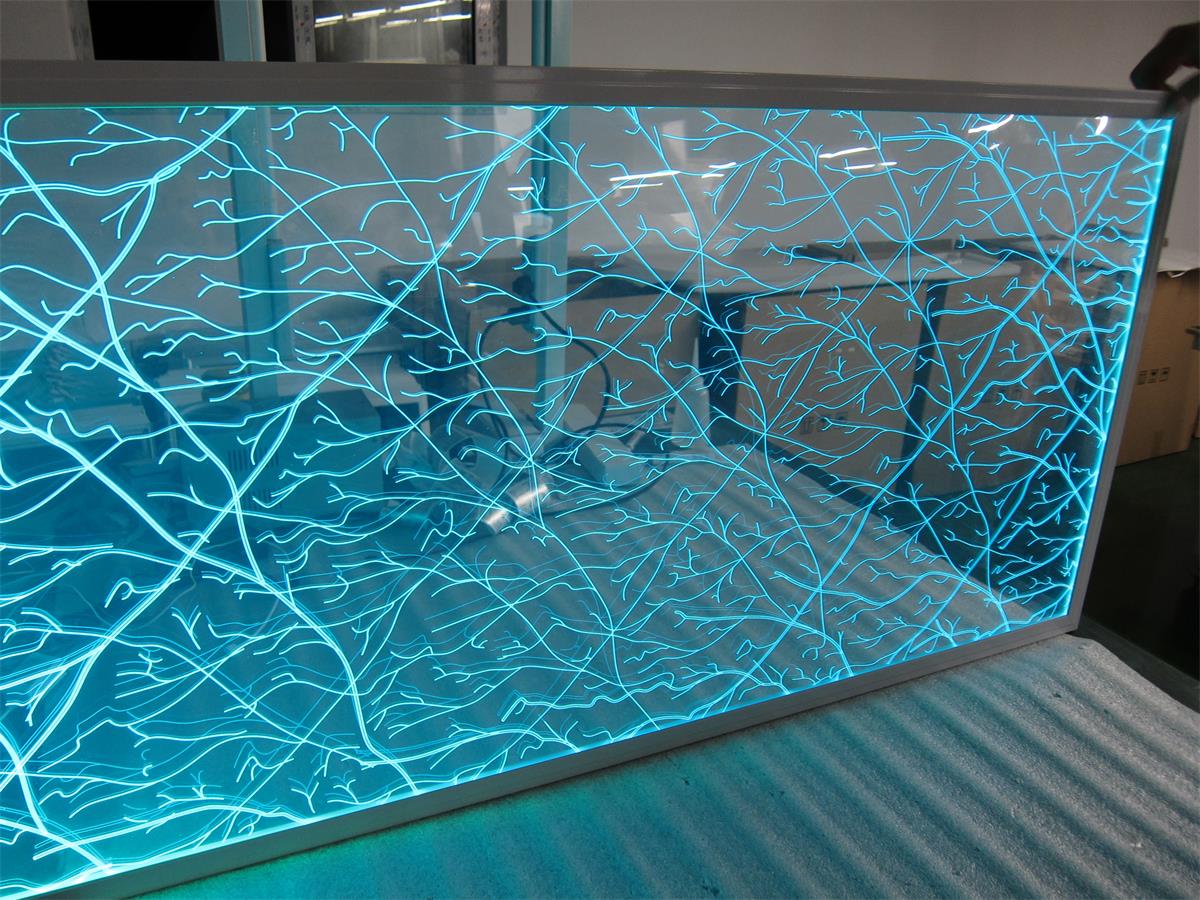

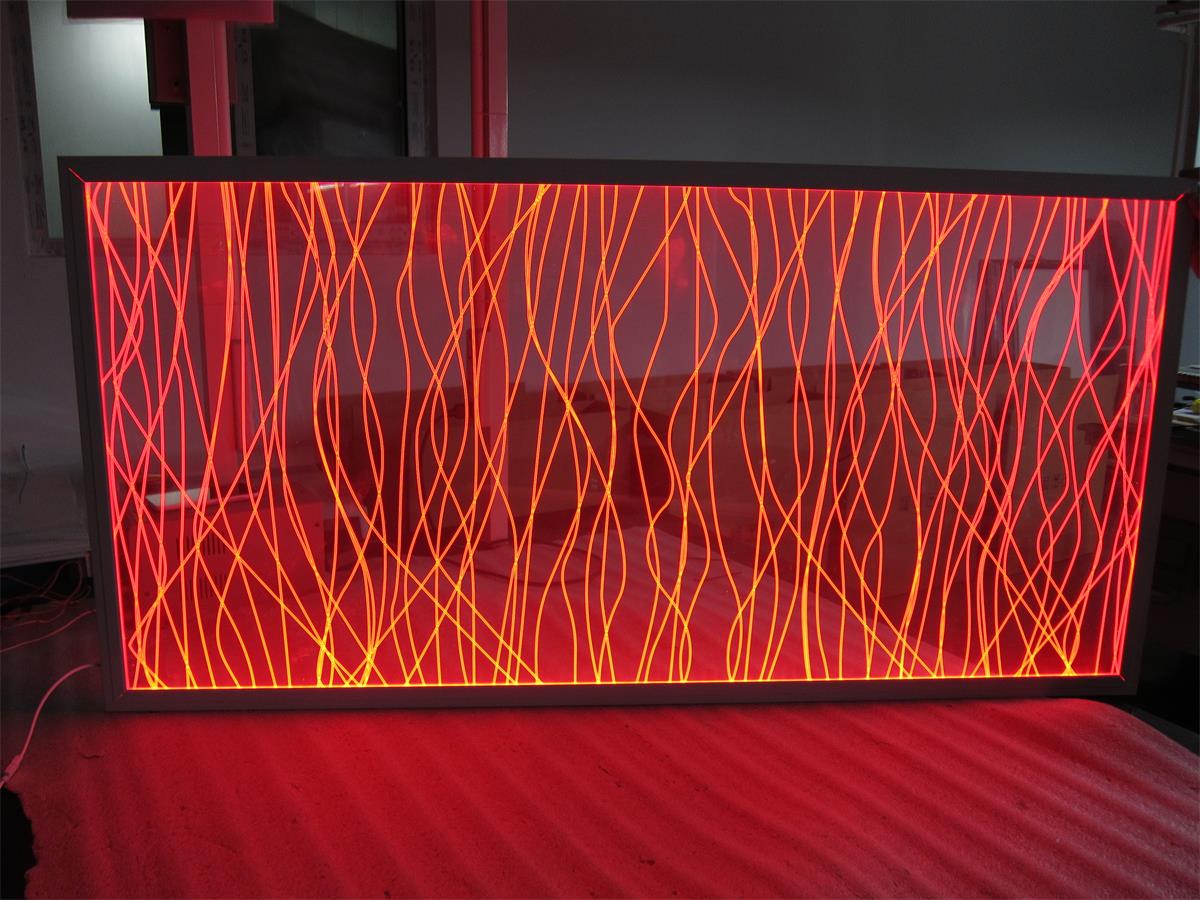

3.LED Panel Light Pictures:

Previous: 295x595mm Engraved RGB RGBW LED Wall Mounted Panel Light Fixtures

Next: 60×60 IP44 IP54 IP65 Integrated Waterproof Led Panel Light 60cmx60cm 54W

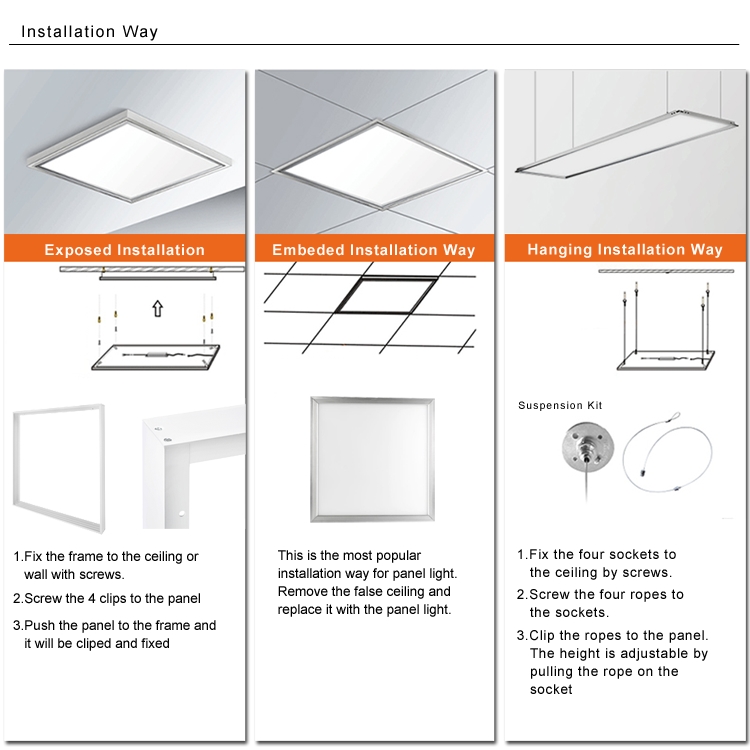

For led panel light, there are ceiling recessed, surface mounted, suspended installation, wall mounted etc installation ways for options with corresponding installation accessories. Customer can choose according to their requirements.

Suspension Kit:

The suspended mount kit for LED panel allows panels to be suspended for a more elegant look or where there is no traditional T-bar grid ceiling present.

Items included in the Suspended Mount Kit:

Items	PL-SCK4				PL-SCK6
	3030	3060	6060	6262	3012	6012
	X 2				X 3
	X 2				X 3
	X 2				X 3
	X 2				X 3
	X 4				X 6

Surface Mount Frame Kit:

This surface mount frame is perfect to install Lightman LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the three frame sides to the ceiling. The LED panel is then slid in. At last complete the installation by screwing the remaining side.

The surface mount frame has enough depth to accommodate the LED driver, which should be placed in the centre of the panel to get good heat dissipation.

Items included in the Surface Mount Frame Kit:

Items	PL-SMK3030	PL-SMK6030	PL-SMK6060	PL-SMK6262	PL-SMK1230	PL-SMK1260
Frame Dimension	302x305x50 mm	302x605x50 mm	602x605x50 mm	622x625x50mm	1202x305x50mm	1202x605x50mm
Frame A	L302 mm X 2 pcs	L302mm X 2 pcs	L602 mm X 2 pcs	L622mm X 2 pcs	L1202mm X 2 pcs	L1202 mm X 2 pcs
Frame B	L305 mm X 2 pcs	L305 mm X 2 pcs	L605mm X 2 pcs	L625 mm X 2 pcs	L305mm X 2 pcs	L605mm X 2 pcs
	X 8 pcs
	X 4 pcs			X 6 pcs

Ceiling Mount Kit:

The ceiling mount kit is specially designed, the other way to install SGSLight TLP LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings or wall. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the clips to the ceiling / wall, and the corresponding clips to the LED panel. Then couple the clips . At last complete the installation by placing the LED driver at the back of the LED panel.

Items included in the Ceiling Mount Kits:

Items	PL-SMC4				PL-SMC6
	3030	3060	6060	6262	3012	6012
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6
	X 4				X 6

Spring Clips:

The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

Items included:
