5inch 7inch 9inch 12inch PIR Sensor Round LED Panel Ceiling Light

Round led panel light has PIR sensor function. Divided into two modes, day and night. When someone walks into the sensing area, the light is on; when the person walks out of the sensing area for a certain time, the light is automatically turned off. Besides, it has CCT adjustable function.

Item: PIR Sensor Round LED Panel Light

Size: 5inch/7inch/9inch/12inch

Power: 6W/12W/18W/24W

Color Temperature: 3CCT

Lifespan: ≥50000 Hours

Send email to us Download as PDF

Products categories

Product Detail

Installation Guide:

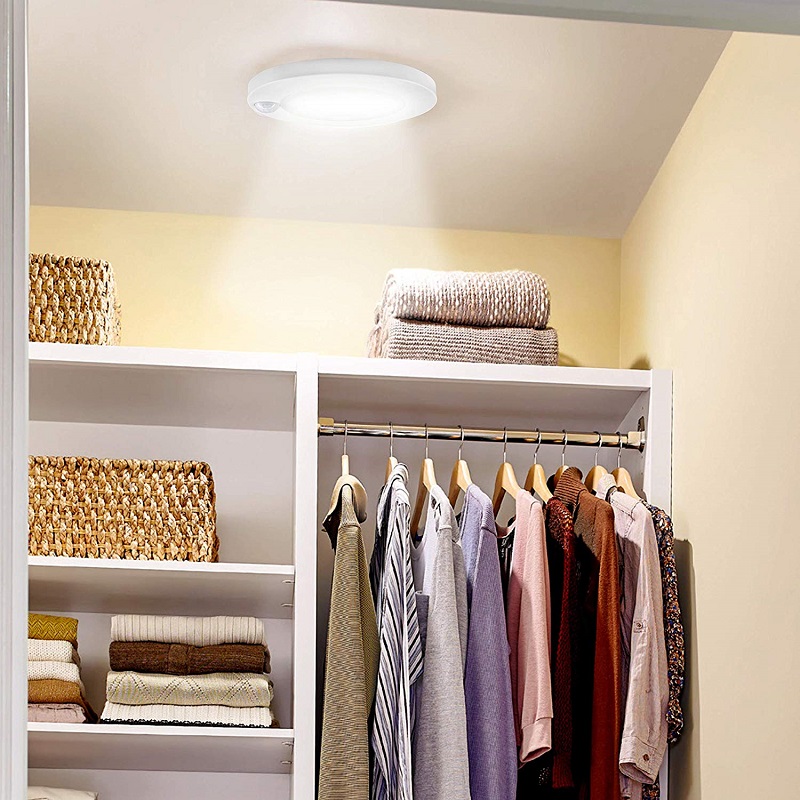

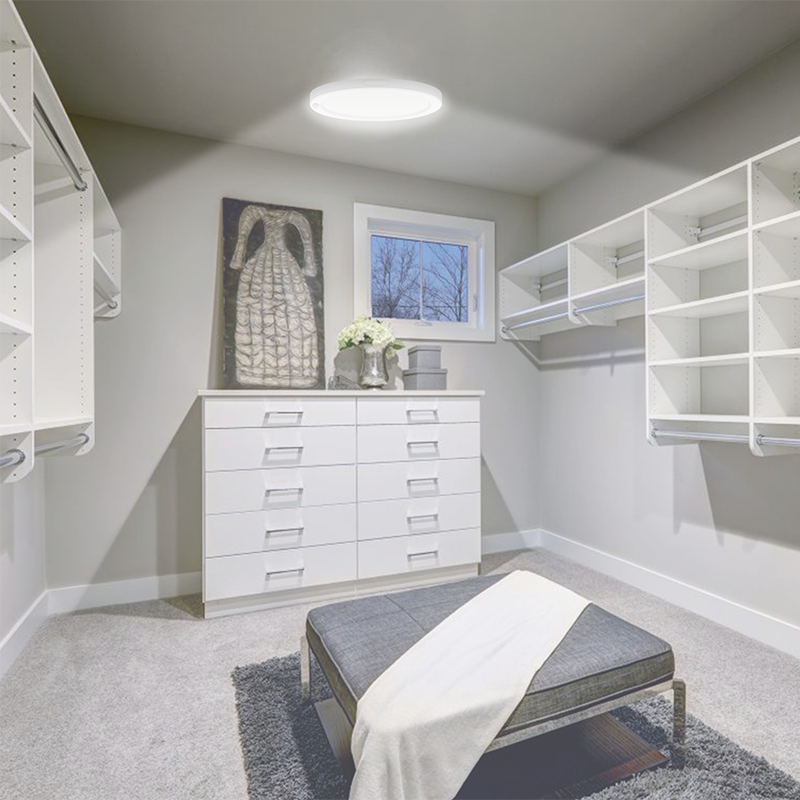

Project Case :

Product Video:

1.Product Introduction of PIR Sensor Round LED Panel Light.

• PIR sensor round led panel light thickness is only 18mm.

• The best 2835 SMD led, pure gold line chip, higher brightness, longer life.

• Divided into two modes, day and night. When someone walks into the sensing area, the light is on; when the person walks out of the sensing area for a certain time, the light is automatically turned off.

• CCT adjustable function.

• Different sizes and powers for options.

• Easy Installation: surface mounted.

2. Product Parameter:

Model No	Power	Product Size	LED Chip	Lumens	Input Voltage	CRI	Warranty
DPL-MT-R5-6W	6W	5inch	SMD2835	>480Lm	AC85~265V 50/60HZ	>80	3 Years
DPL-MT-R7-12W	12W	7inch	SMD2835	>960Lm	AC85~265V 50/60HZ	>80	3 Years
DPL-MT-R9-18W	18W	9inch	SMD2835	>1440Lm	AC85~265V 50/60HZ	>80	3 Years
DPL-MT-R12-24W	24W	12inch	SMD2835	>1920Lm	AC85~265V 50/60HZ	>80	3 Years
