White Black Body PIR Sensor Round LED Panel Downlight

Round led panel light has PIR sensor function. Divided into two modes, day and night. When someone walks into the sensing area, the light is on; when the person walks out of the sensing area for a certain time, the light is automatically turned off. Besides, it has CCT adjustable function.


  • Item: PIR Sensor Round LED Panel Light
  • Size: 5inch/7inch/9inch/12inch
  • Power: 6W/12W/18W/24W
  • Color Temperature: 3CCT
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide:

    Project Case :

    Product Video:

    1.Product Introduction of PIR Sensor Round LED Panel Light.

    • PIR sensor round led panel light thickness is only 18mm.

    • The best 2835 SMD led, pure gold line chip, higher brightness, longer life.

    • Divided into two modes, day and night. When someone walks into the sensing area, the light is on; when the person walks out of the sensing area for a certain time, the light is automatically turned off.

    • CCT adjustable function.

    • Different sizes and powers for options.

    • Easy Installation: surface mounted.

    2. Product Parameter:

    Model No Power Product Size LED Chip Lumens Input Voltage CRI Warranty
    DPL-MT-R5-6W 6W 5inch SMD2835 >480Lm AC85~265V

    50/60HZ

    >80 3 Years
    DPL-MT-R7-12W 12W 7inch SMD2835 >960Lm AC85~265V

    50/60HZ

    >80 3 Years
    DPL-MT-R9-18W 18W 9inch SMD2835 >1440Lm AC85~265V

    50/60HZ

    >80 3 Years
    DPL-MT-R12-24W 24W 12inch SMD2835 >1920Lm AC85~265V

    50/60HZ

    >80 3 Years

    3.PIR Sensor LED Panel Light Pictures:

    1. sensor round led panel 2. sensor led panel 3. sensor panel led 4. PIR sensor round led panel 5. sensor led panel


  • Previous:
  • Next:

  • 6. installation guide

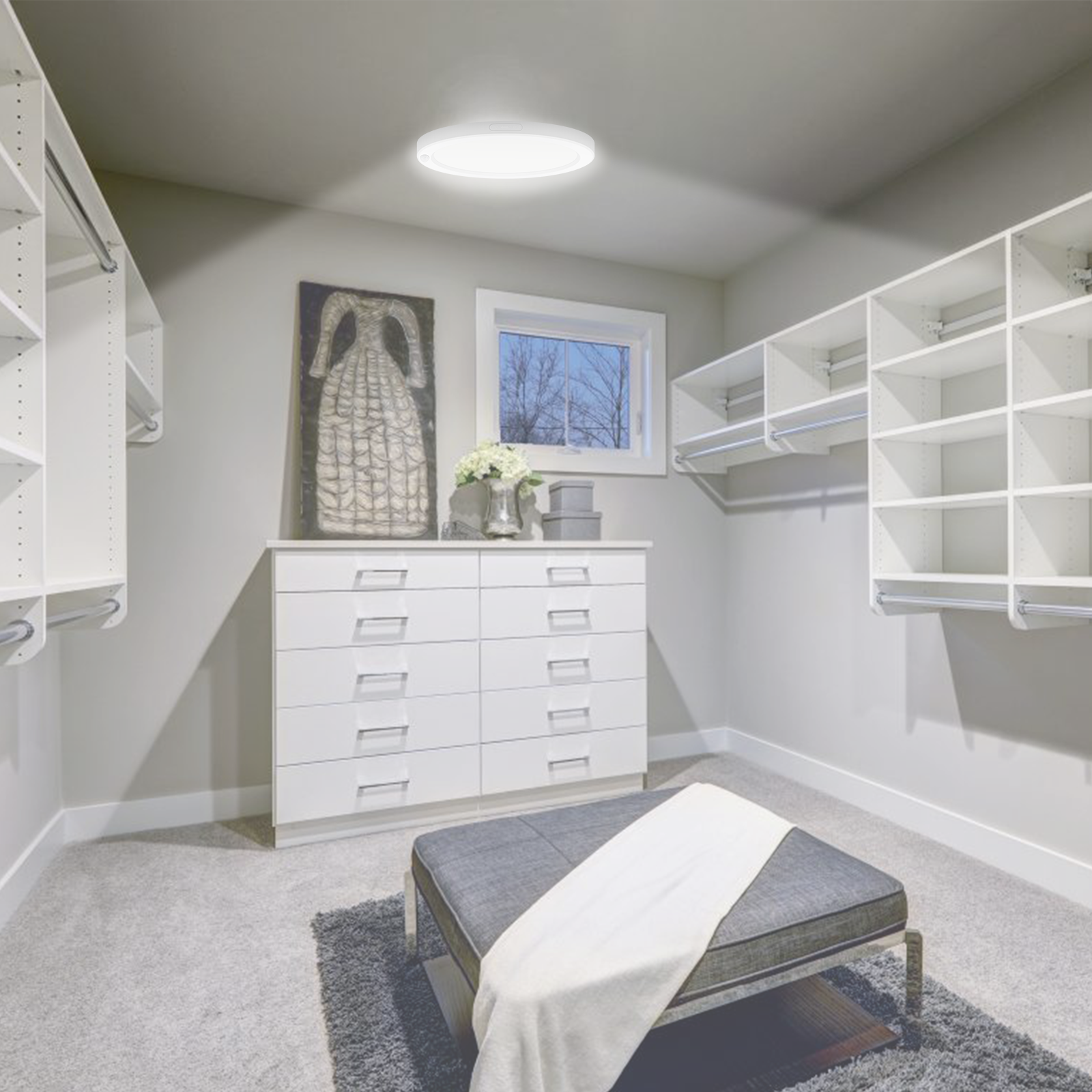

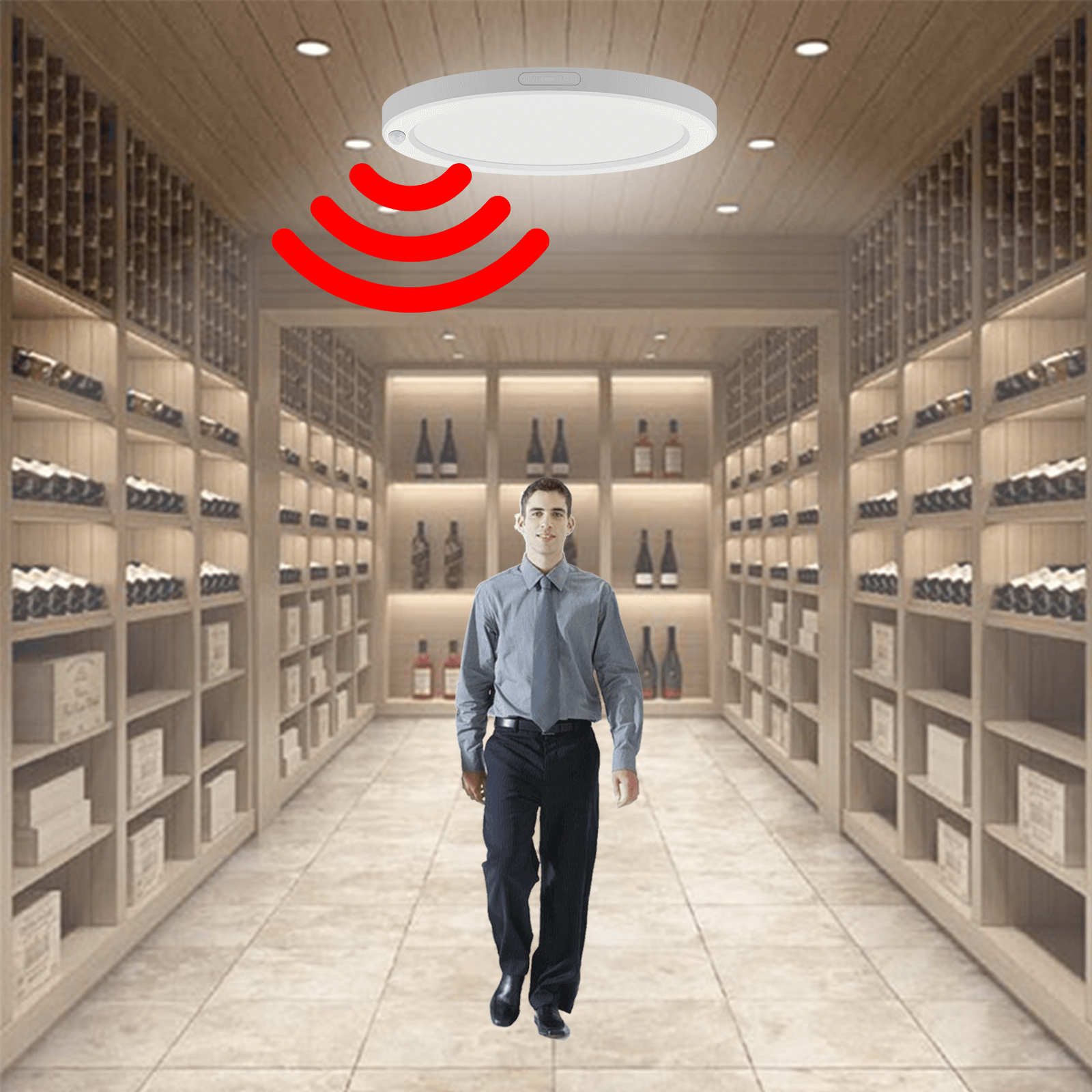

    7. surface led panel 8. 6w round led panel
