Philips 36W Aluminum Frame Recessed LED Panel Ceiling Light 600×600

The LED panel light is designed to be good energy saving panel with high efficiency, 50,000 hours long life, and 90% uniformity across the emitting surface. It is widely used for commercial lighting, office lighting, hospital lighting, clean room lighting etc.


  • Item: 600x600 LED Panel Light
  • Power: 36W /40W /48W /54W /60W /72W /80W
  • Input Voltage: AC85~265V / AC220V-240V, 50-60Hz
  • Color Temperature: Warm White, Natural White, Cool White
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Project Case

    Product Video

    1. Product Features of 60x60 LED Panel Light 36W.

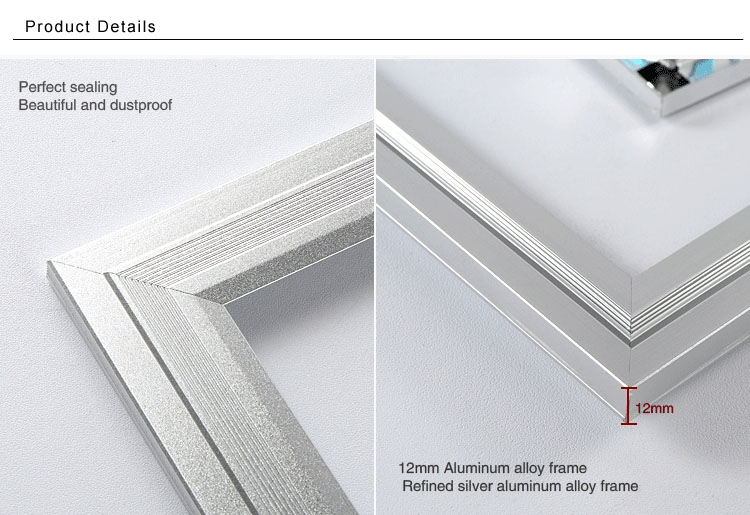

    •Lightman adopts A6063 aviation aluminum material frame with anti-oxidation treatment for rustproof and moisture-proof.

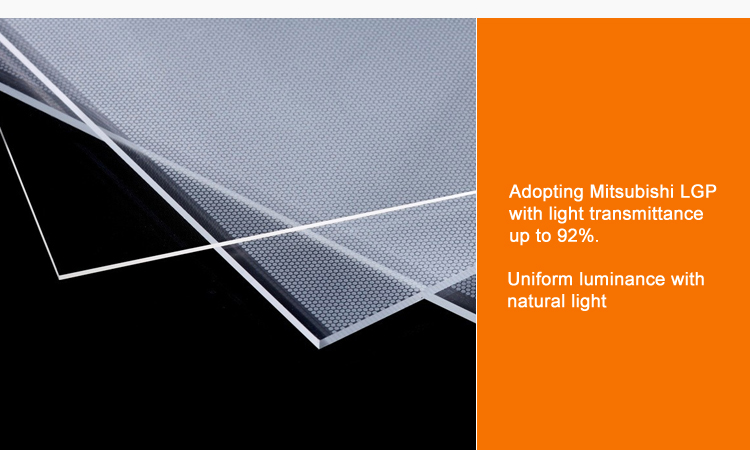

    •Lightman adopts Mitsubishi light guide plate with light transmittance up to 90%.

    •Lightman adopts fireproof PS diffuser with transmittance up to 90%.

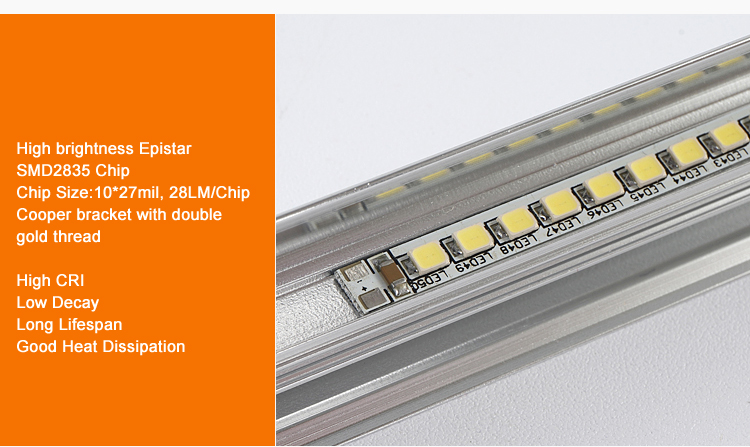

    •Lightman adopts high brightness low decay 26lm-28lm 0.2w Epistar SMD 2835 led chip with better heat dissipation.

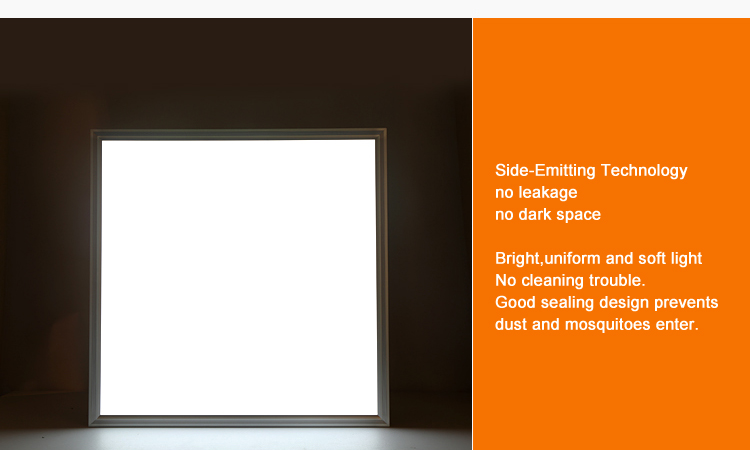

    •Lightman led panel lights uses good sealing design which prevents dust and mosquitoes enter. No cleaning trouble.

    •Different sizes of led panel light for your options. Diversity in shape (square, rectangle).

    •No flicker, No UV, No lead and No glare.

    •Easy to install. Ideal to be built into system ceilings, offices, and can be used as a suspended light fixture.

    •We provide three or five years warranty for led panel light.



    2. Product Specification:

    Model No

    PL-6060-36W

    PL-6060-40W

    PL-6060-48W

    PL-6060-54W

    Power Consumption

    36 W

    40 W

    48 W

    54 W

    LED Qty(pcs)

    204pcs

    204 pcs

    252 pcs

    280 pcs

    LED Type

    SMD 2835

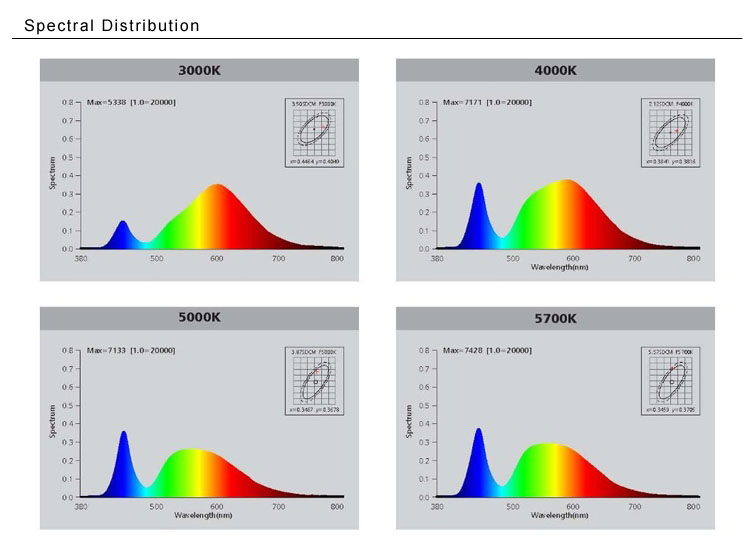

    Color Temperature (K)

    2700 - 6500K

    Color

    Warm/Natural/Cool White

    Light Efficiency (lm/w)

    85lm/w~120lm/W

    Dimension

    595x595x10mm

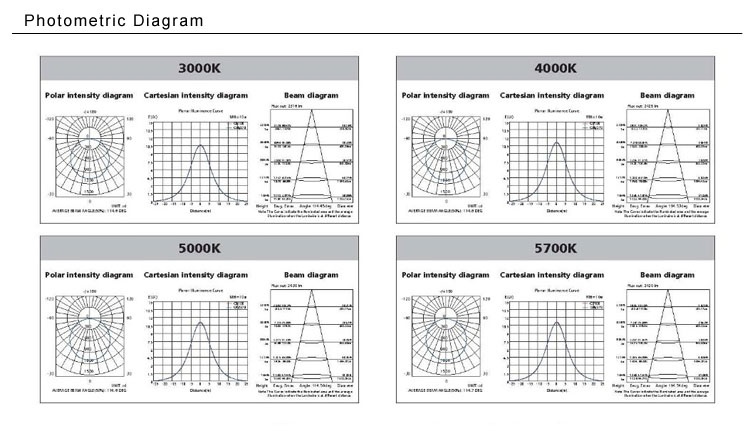

    Beam Angle (degree)

    >120°

    CRI

     >80Ra / >90Ra

    Power Factor

    >0.95

    Input Voltage

    AC180V - 260V/100~240Vac

    Frequency Range (Hz)

    50 - 60Hz

    Working Environment

     Indoor

    Material of Body

    Aluminum alloy frame and PS Diffuser

    Frame Color RAL

    Pure white/RAL9016; Silver

    IP Rating

    IP20

    IK Grade

    IK06

    Operating Temperature

    -20°~65°

    Dimmable Solution

      Dali/0~10V/PWM/Triac Optional

    Life span

    60,000hours

    Warranty

    3 Years or 5 Years



    3. LED Panel Light Pictures:


  • Previous:
  • Next:

  • For led panel light, there are ceiling recessed, surface mounted, suspended installation, wall mounted etc installation ways for options with corresponding installation accessories. Customer can choose according to their requirements.

    12. Installation Guide

    Surface Mount Frame Kit:

    This surface mount frame is perfect to install Lightman LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

    First screw the three frame sides to the ceiling.  The LED panel is then slid in.  At last complete the installation by screwing the remaining side.

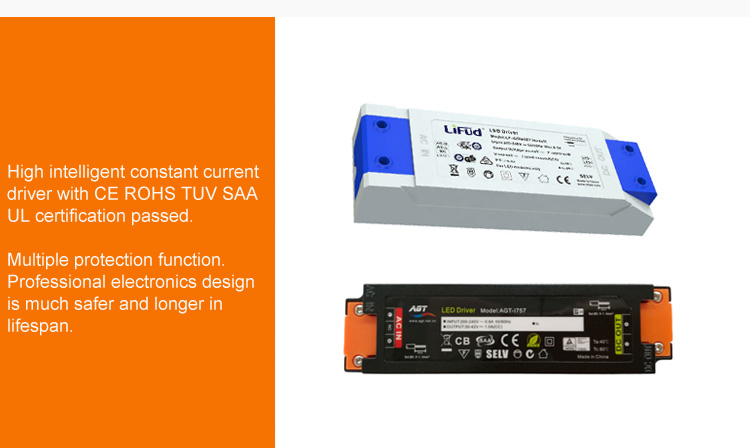

    The surface mount frame has enough depth to accommodate the LED driver, which should be placed in the centre of the panel to get good heat dissipation.

    Items included in the Surface Mount Frame Kit:

    Items

    PL-SMK3030

    PL-SMK6030

    PL-SMK6060

    PL-SMK6262

    PL-SMK1230

    PL-SMK1260

    Frame Dimension

    302x305x50mm

    302x605x50mm

    602x605x50mm

    622x625x50mm

    1202x305x50mm

    1202x605x50mm

    Frame A
    Frame A

    L302 mm
    X 2 pcs

    L302mm
    X 2 pcs

    L602 mm
    X 2 pcs

    L622mm
    X 2 pcs

    L1202mm
    X 2 pcs

    L1202 mm
    X 2 pcs

    Frame B
    Frame B

    L305 mm
    X 2 pcs

    L305 mm
    X 2 pcs

    L605mm
    X 2 pcs

    L625 mm
    X 2 pcs

    L305mm
    X 2 pcs

    L605mm
    X 2 pcs

    Frame c

    X 8 pcs

    Frame d

    X 4 pcs

    X 6 pcs



    Suspension Kit:

    The suspended mount kit for LED panel allows panels to be suspended for a more elegant look or where there is no traditional T-bar grid ceiling present.

    Items included in the Suspended Mount Kit:

    Items

    PL-SCK4

    PL-SCK6

    3030

    3060

    6060

    6262

    3012

    6012

    3333

    X 2

    X 3

    4444

    X 2

    X 3

    5555

    X 2

    X 3

    6666

    X 2

    X 3

    7777

    X 4

    X 6



    Ceiling Mount Kit:

    The ceiling mount kit is specially designed, the other way to install SGSLight TLP LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings or wall.  It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

    First screw the clips to the ceiling / wall,  and the corresponding clips to the LED panel.  Then couple the clips .  At last complete the installation by placing the LED driver at the back of the LED panel.

    Items included in the Ceiling Mount Kits:

    Items

    PL-SMC4

    PL-SMC6

    3030

    3060

    6060

    6262

    3012

    6012

    111

    X 4

    X 6

    222

    X 4

    X 6

    333

    X 4

    X 6

    444

    X 4

    X 6

    555

    X 4

    X 6

    666

    X 4

    X 6

    777

    X 4

    X 6



    Spring Clips:

    The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

    First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

    Items included:

    Items

    PL-RSC4

    PL-RSC6

    3030

    3060

    6060

    6262

    3012

    6012

    777

    X 4

    X 6

    777

    X 4

    X 6


    Platform Corridor Picture

    LED Panel Light Office Lighting (Germany)

    15. suspended 60x60 led flat panel light in office-Application

    LED Panel in Supermarket (UK)

    14. 600x600mm led office panel light-Application

    LED Panel Light in store (Belgium)

    13. led panel light for hospital lighting-Application

    LED Flat Panel Light in Clinic (UK)
