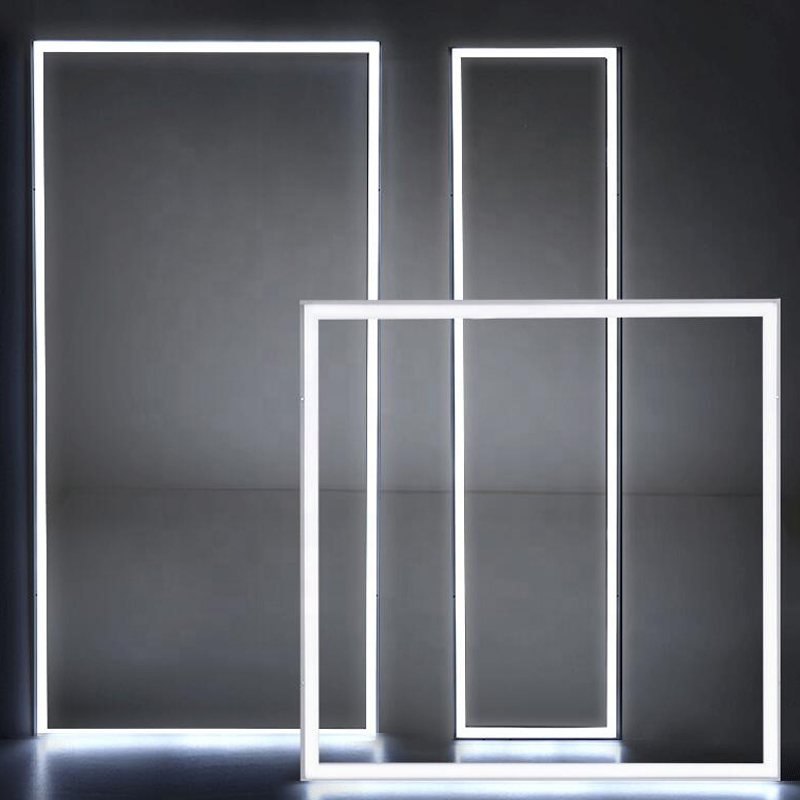

CE TUV Certified SMD2835 LED Chip Recessed LED Frame Panel Lamp 30×120

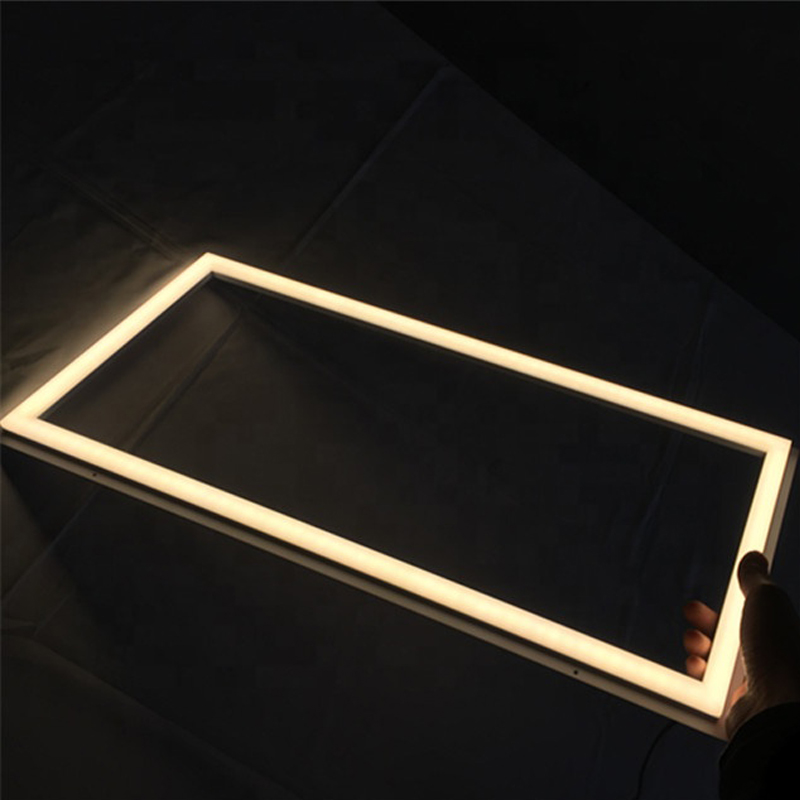

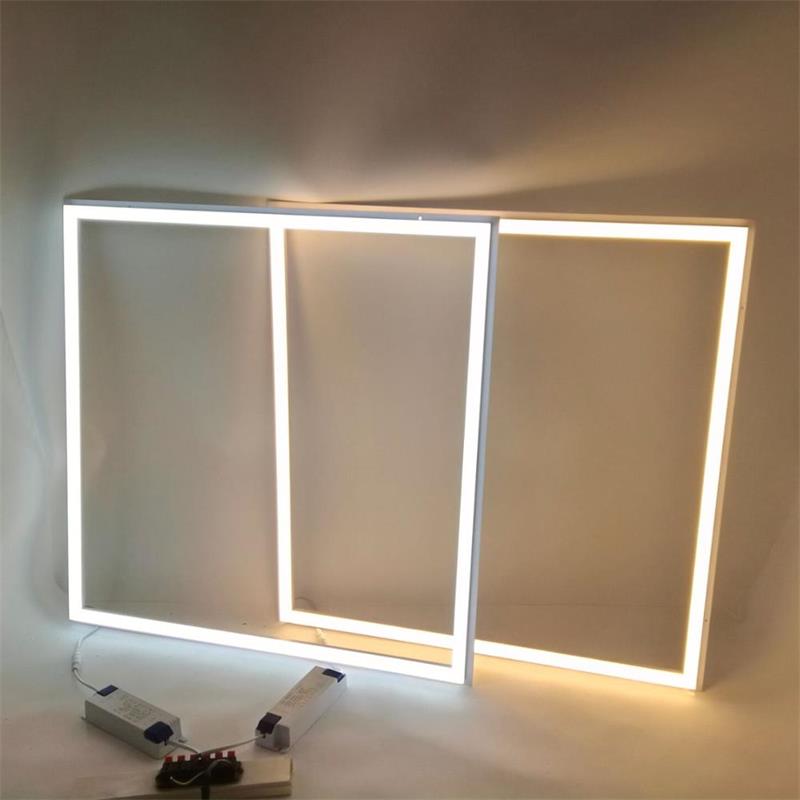

This innovative LED frame panel light features a lightweight aluminum frame, designed to prevent light leakage. The frame houses LED chips for soft illumination. The Light Emitting Surface Glare-Guard Technology which reduces glare by 60% while keeping the same light distribution from a flat panel. Easy mounting in standard size T-bar ceilings. Standard ceiling tiles can be mounted onto the center cavity of the fixture. This newest LED Frame light provides high levels of energy saving LED diffuse light for use in private offices, open office areas, upscale retail applications, public circulation areas, and classrooms.

Item: 300x1200 LED Frame Panel Light

Power: 36W /40W /48W /54W /60W /72W /80W

Input Voltage: AC85~265V / AC220V-240V, 50-60Hz

Color Temperature: Warm White, Natural White, Cool White

Lifespan: ≥50000 Hours

Send email to us Download as PDF

Products categories

Product Detail

Installation Guide

Project Case

Project Video

1. Product Features of 30×120 LED Frame Panel Light.

•Lightman adopts A6063 aviation aluminum material frame with anti-oxidation treatment for rustproof and moisture-proof.

•Lightman adopts high brightness low decay Epistar SMD 2835 led chip with better heat dissipation.

•LED panel lights is designed to be good energy saving with high lumen efficacy.

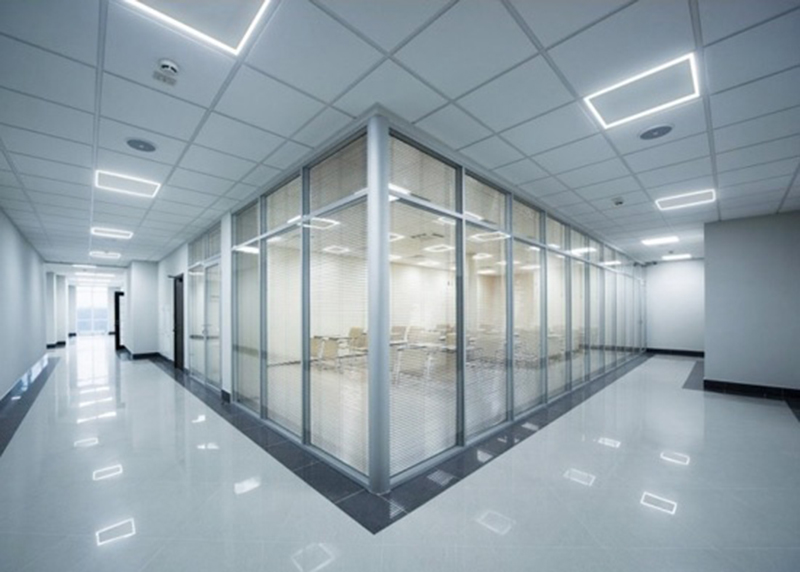

• It is suitable to be used in offices, retail stores, hospitals, schools, hallways and lobbies, meeting rooms, restaurants, etc.

2. Product Specification:

Model No	PL-30120-36W	PL-30120-40W	PL-30120-48W	PL-30120-54W
Power Consumption	36 W	40 W	48 W	54 W
Luminous Flux (Lm)	2880～3240lm	3200～3600lm	3840-4320lm	4320-4860lm
LED Qty(pcs)	192pcs	204 pcs	252 pcs	280 pcs
LED Type	SMD 2835
Color Temperature (K)	2700 - 6500K
Color	Warm/Natural/Cool White
Dimension	295x1195x11mm
Beam Angle (degree)	>120°
Light Efficiency (lm/w)	>80lm/w
CRI	>80
Power Factor	>0.95
Input Voltage	AC 85V - 265V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame
Dimmable	Optional
Life span	50,000hours
Warranty	3Years
