60×120 600×1200 Custom Laser Engraved Different Patterns RGB RGBW LED Flat Panel Light

Laser engraved RGB&RGBW&RGBWW led panel light is a kind of LED lighting product, which has the advantages of simple structure, convenient installation, adjustable color, brightness and various modes. Its structure is mainly composed of LED lamp beads, controller, transparent panel, reflective material and heat dissipation material. And we can engrave different patterns according to customers requirement. So laser engraved RGB&RGBW&RGBWW led panel light can be widely used in home lighting, commercial lighting, entertainment venues, festivals and other occasions.


  • Item: Engraved RGB&RGBW&RGBWW LED Panel Light
  • Size: 600x600, 600x1200, 300x1200, 620x620, 300x600, 300x300.
  • Working Voltage: Working Voltage
  • Dimmable: Color Changing RGB&RGBW&RGBWW Dimmable
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Project Case

    Product Video

    1.Product Introduction of Engraved RGB&RGBW&RGBWW LED Panel Light.

    •RGB&RGBW&RGBWW led panel light fixtures can be use 2.4G control system with anti interference ability. It can adjust the brightness and colors in the same time.

    •For RGB&RGBW&RGBWW led panel light DMX512, it is connected with the USB interface of the computer and uses the computer’s operating interface to achieve the purpose of controlling the lamps. The operation is simple and the use is convenient.

    • Compatible with IR/Wireless/Bluetooth/Zigbee/Tuya/DMX/WIFI control system.

    • We can custom laser engrave different patterns according to customers requirement.

    •We can provide 3 years warranty for multi color led panel lamp.

    2. Product Parameter:

    Model No

    PL-6060-36W-RGB

    PL-6262-40W-RGB

    PL-30120-40W-RGB

    Power Consumption

    36W

    40W

    40W

    Dimension (mm)

         595*595*11mm

    620*620*11mm

    1195*295*11mm

    LED Qty (pcs)

            175pcs

    182pcs

    182pcs

    LED Type

    SMD5050

    Color

    Multi Colors

    Beam Angle (degree)

     >120°

    CRI

      >80

    LED Driver

    Constant Voltage LED Driver

    Output Voltage

    DC12 / 24V

    Input Voltage

    AC 85V - 265V, 50 - 60Hz

    Working Environment

     Indoor

    Material of Body

    Aluminum alloy frame

    IP Rating

    IP20

    Operating Temperature

    -25°~70°

    Dimmable Way

    RGB dimming

    Installation Option

    Recessed/Suspended/Surface Mounted

    Life span

    50,000hours

    Warranty

    3Years

    3.LED Panel Light Pictures:

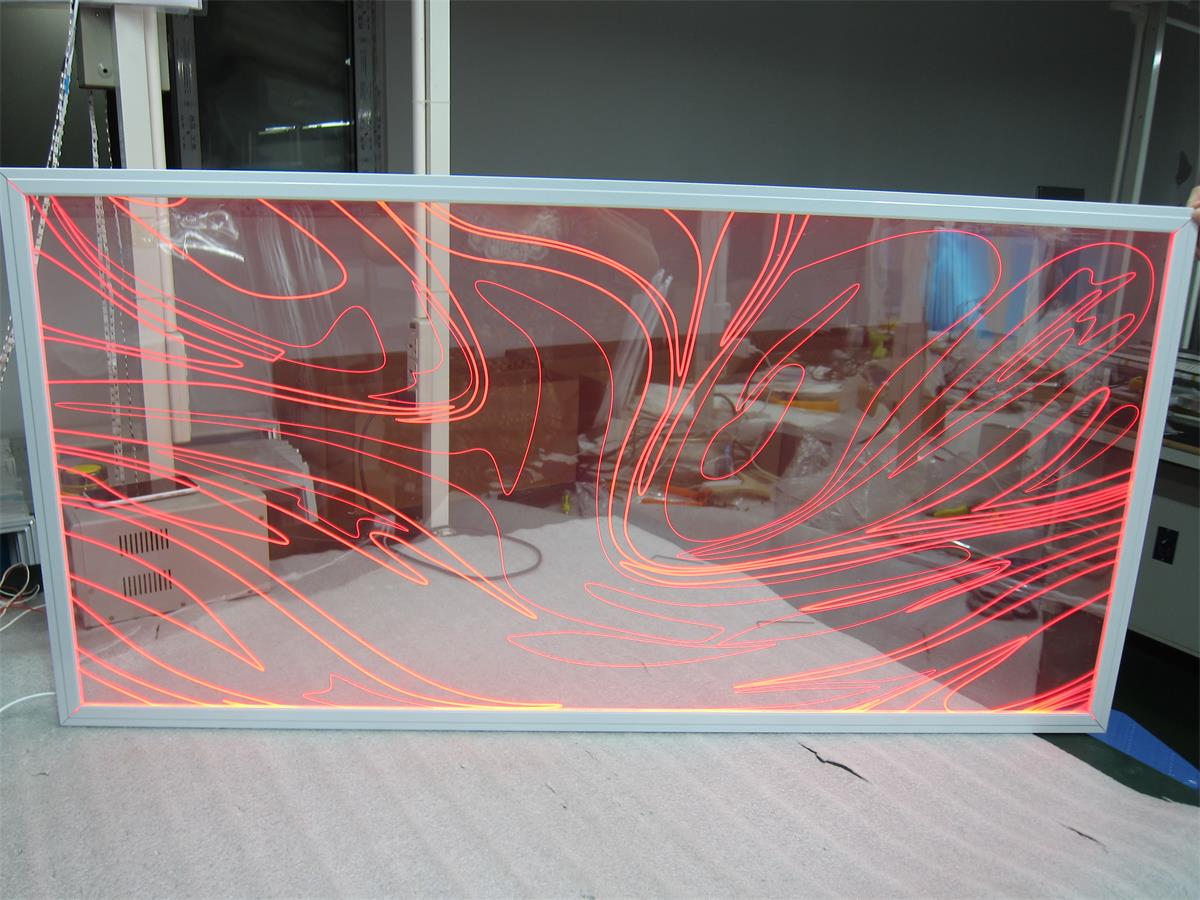

    1. Engraved RGB led panel

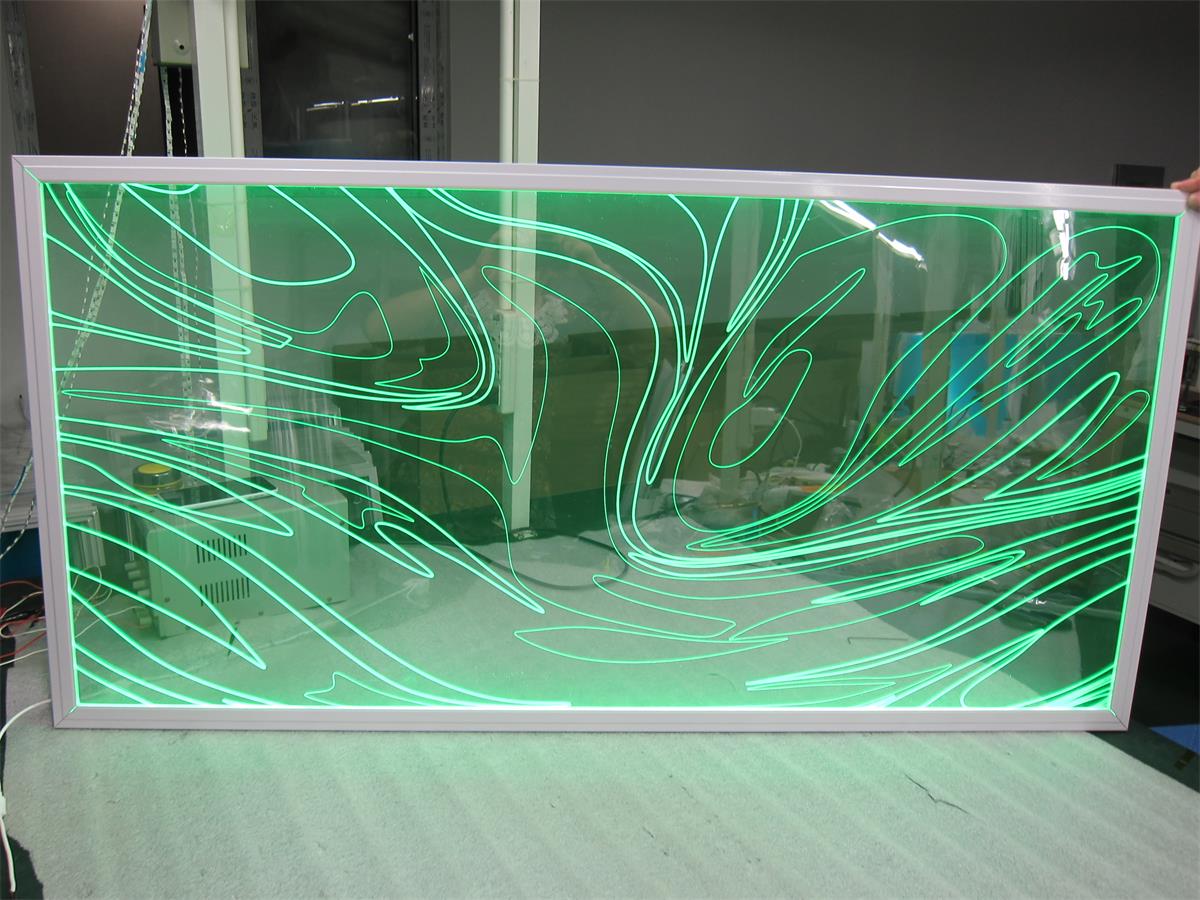

    2. Engraved RGB led panel lamp

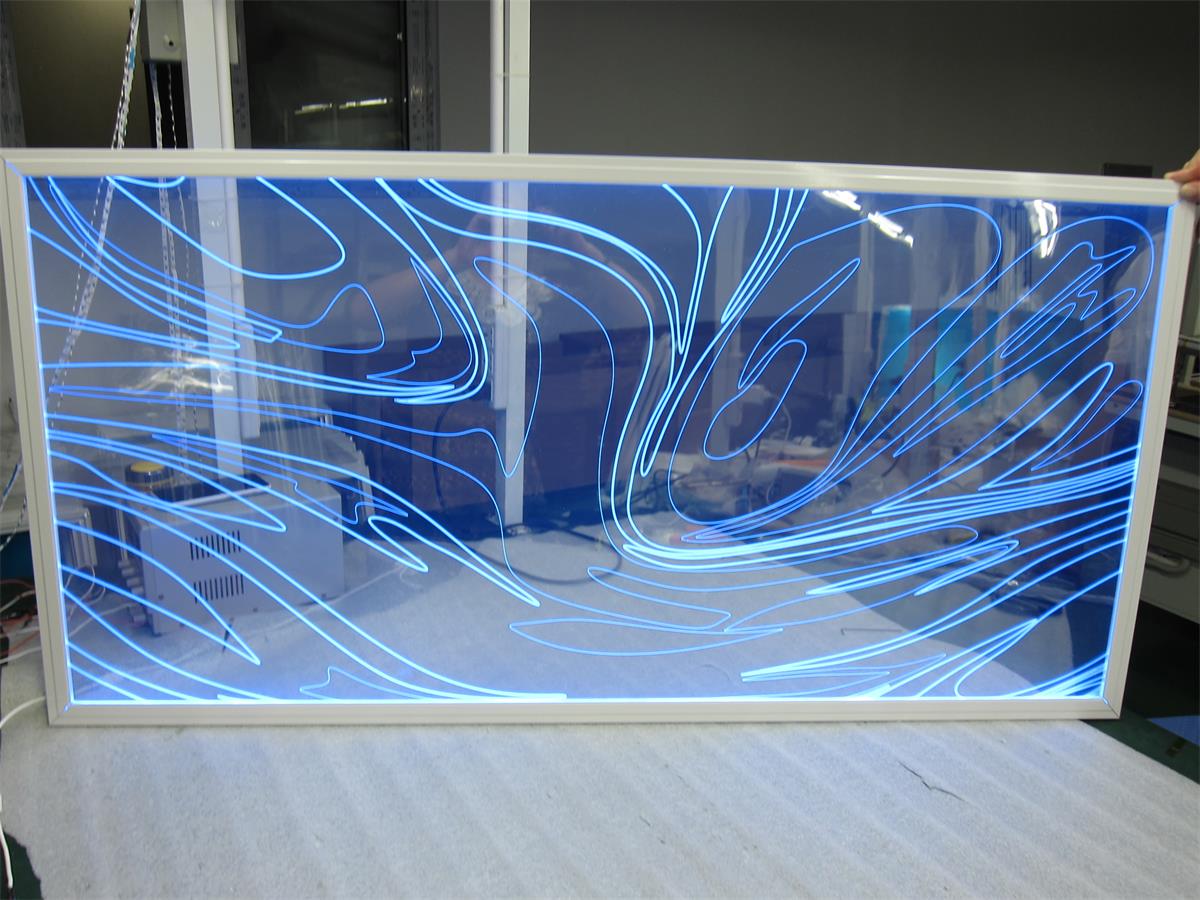

    3. Laser Engraved RGB led panel

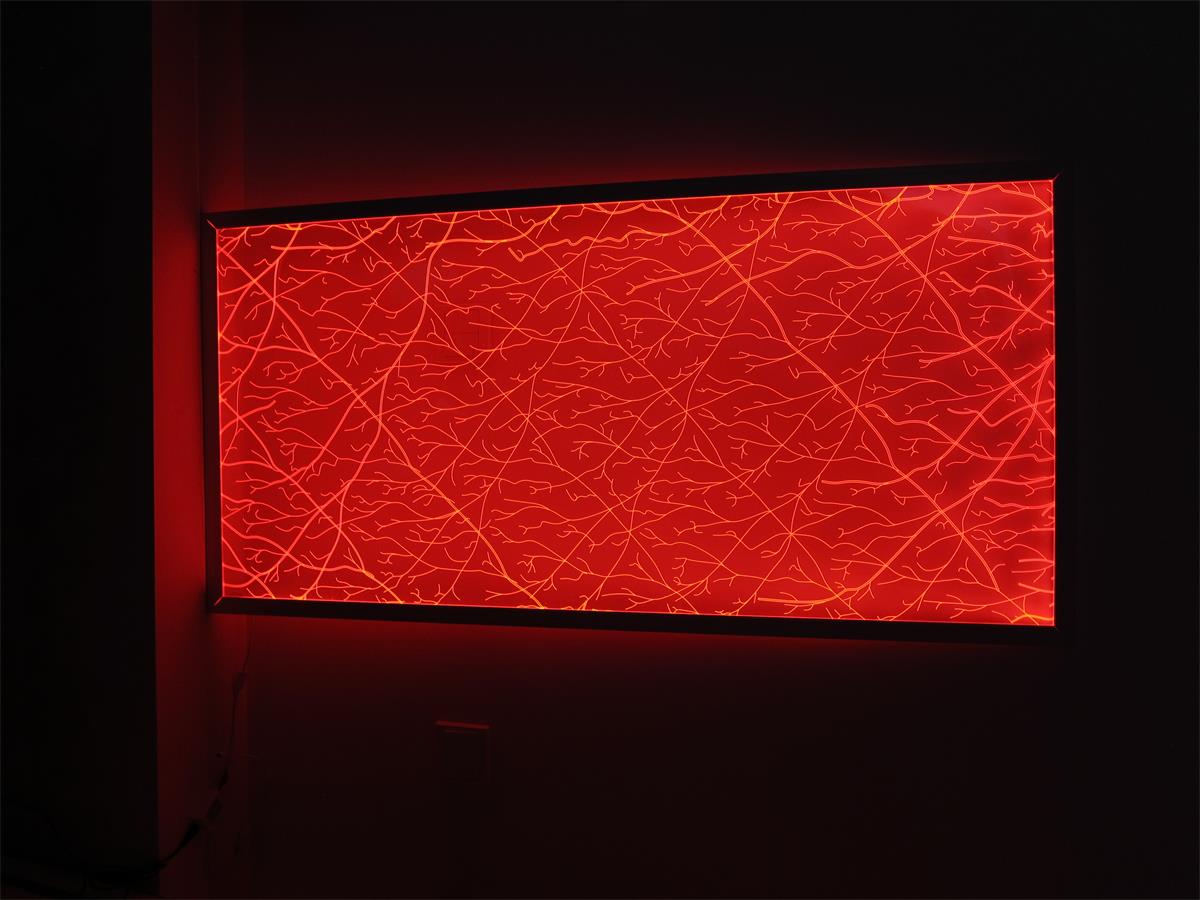

    4. custom RGB led panel

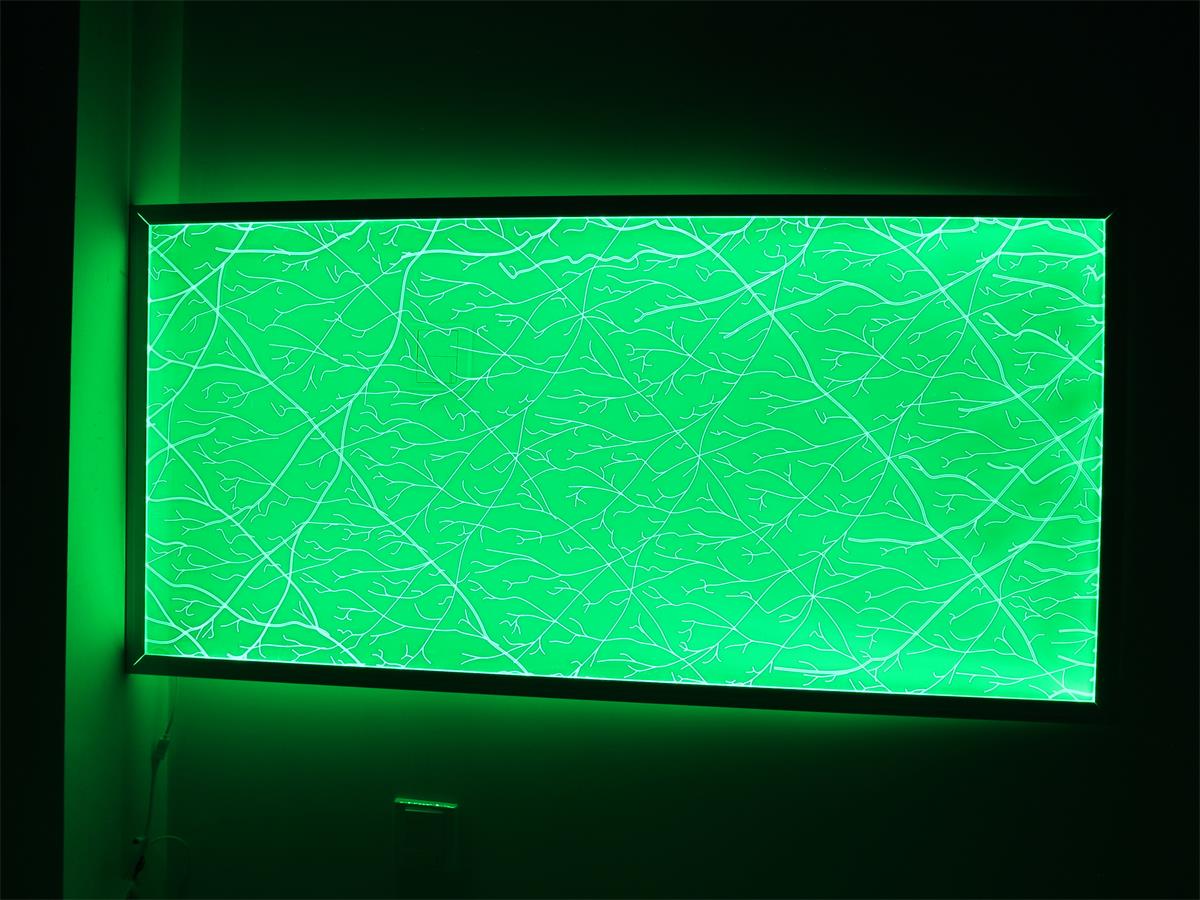

    5. engraved rgbw led panel

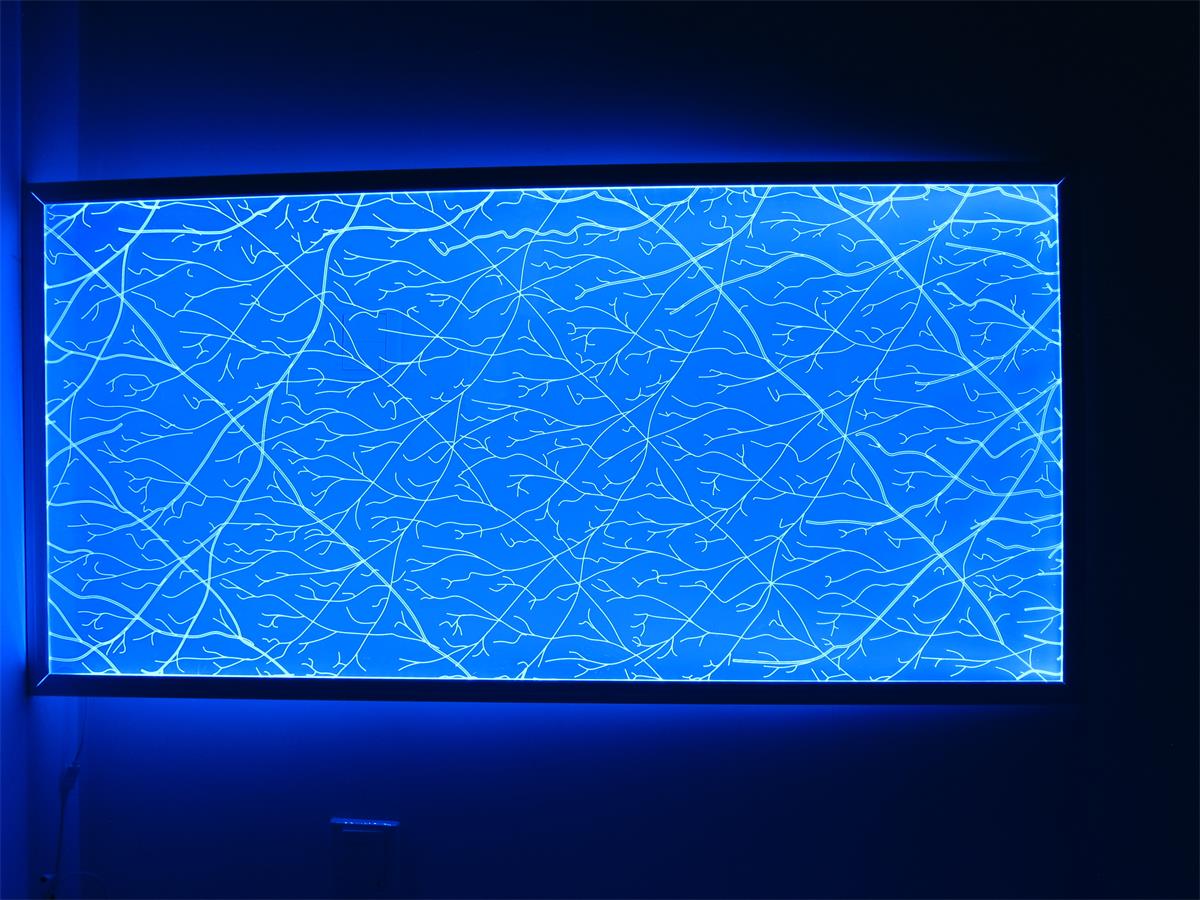

    6. engraved rgb dimmable led panel


  • Previous:
  • Next:

  • For led panel light, there are ceiling recessed, surface mounted, suspended installation, wall mounted etc installation ways for options with corresponding installation accessories. Customer can choose according to their requirements.

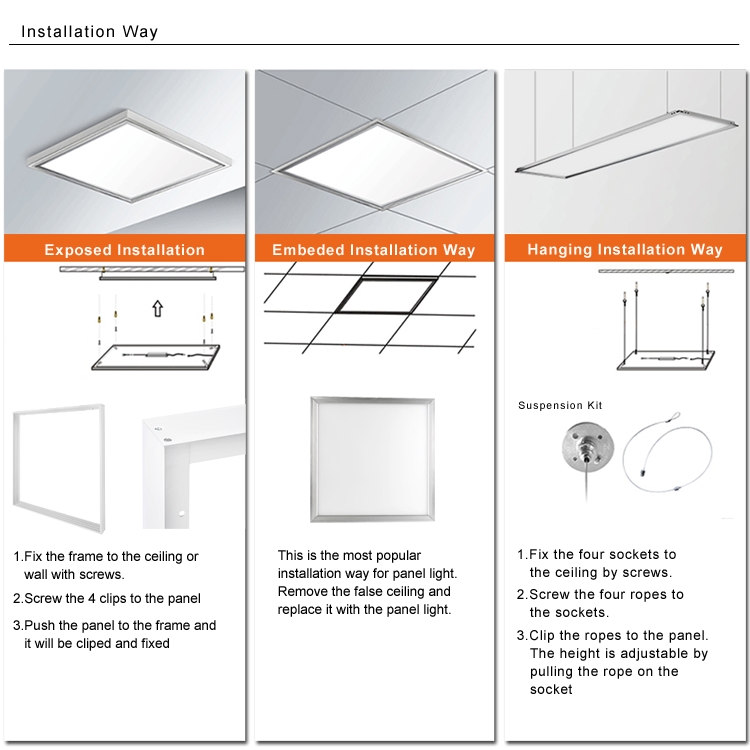

    7. Installation Guide

    Suspension Kit:

    The suspended mount kit for LED panel allows panels to be suspended for a more elegant look or where there is no traditional T-bar grid ceiling present.

    Items included in the Suspended Mount Kit:

    Items

    PL-SCK4

    PL-SCK6

    3030

    3060

    6060

    6262

    3012

    6012

    eydtr (2)

    X 2

    X 3

    eydtr (3)

    X 2

    X 3

     eydtr (4)

    X 2

    X 3

     eydtr (5)

    X 2

    X 3

    eydtr (6)

    X 4

    X 6

    Surface Mount Frame Kit:

    This surface mount frame is perfect to install Lightman LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

    First screw the three frame sides to the ceiling.  The LED panel is then slid in.  At last complete the installation by screwing the remaining side.

    The surface mount frame has enough depth to accommodate the LED driver, which should be placed in the centre of the panel to get good heat dissipation.

    Items included in the Surface Mount Frame Kit:

    Items

    PL-SMK3030

    PL-SMK6030

    PL-SMK6060

    PL-SMK6262

    PL-SMK1230

    PL-SMK1260

    Frame Dimension

    302x305x50  mm

    302x605x50 mm

    602x605x50 mm

    622x625x50mm

    1202x305x50mm

    1202x605x50mm



    eydtr (7)
    Frame A

    L302 mm
    X 2 pcs

    L302mm
    X 2 pcs

    L602 mm
    X 2 pcs

    L622mm
    X 2 pcs

    L1202mm
    X 2 pcs

    L1202 mm
    X 2 pcs

    eydtr (8)
    Frame B

    L305 mm
    X 2 pcs

    L305 mm
    X 2 pcs

    L605mm
    X 2 pcs

    L625 mm
    X 2 pcs

    L305mm
    X 2 pcs

    L605mm
    X 2 pcs

    eydtr (9)

    X 8 pcs

    eydtr (10)

    X 4 pcs

    X 6 pcs

    Ceiling Mount Kit:

    The ceiling mount kit is specially designed, the other way to install SGSLight TLP LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings or wall.  It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

    First screw the clips to the ceiling / wall,  and the corresponding clips to the LED panel.  Then couple the clips .  At last complete the installation by placing the LED driver at the back of the LED panel.

    Items included in the Ceiling Mount Kits:

    Items

    PL-SMC4

    PL-SMC6

    3030

    3060

    6060

    6262

    3012

    6012

     eydtr (11)

    X 4

    X 6

    eydtr (12)

    X 4

    X 6

    eydtr (13)

    X 4

    X 6

     eydtr (14)

    X 4

    X 6

    eydtr (15)

    X 4

    X 6

    eydtr (16)

    X 4

    X 6

     eydtr (17)

    X 4

    X 6

    Spring Clips:

    The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

    First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

    Items included:

    Items

    PL-RSC4

    PL-RSC6

    3030

    3060

    6060

    6262

    3012

    6012

     eydtr (18)

    X 4

    X 6

    eydtr (19)

    X 4

    X 6


    8. rgb led panel

    9. RGB led panel project
