54W Square LED Slim Ceiling Panel Light 60x60cm With 5 Years Warranty

Lightman most efficient way of illumination and lighting, with an estimated energy efficiency of 80%-90% when compared to traditional lighting and conventional light bulbs. And high light uniformity(more than 90%) and cost efficient. LED Panel Light is ideal for EMC energy-saving projects in places of office work and educational locations, health-care and retail environments.


  • Item: 600x600 LED Panel Light
  • Power: 36W /40W /48W /54W /60W /72W /80W
  • Input Voltage: AC85~265V / AC220V-240V, 50-60Hz
  • Color Temperature: Warm White, Natural White, Cool White
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Project Case

    product video

    1. Product Features of 60x60 LED Panel Light 54W.

    • Superior Aluminum Alloy materials. Stylish everlasting color aluminum frame with advanced anodized and oxidation treatment. Advanced designing makes the ceiling lighting more elegant.

    • Ultra thin and super bright, aluminum frame is only 10mm thick.

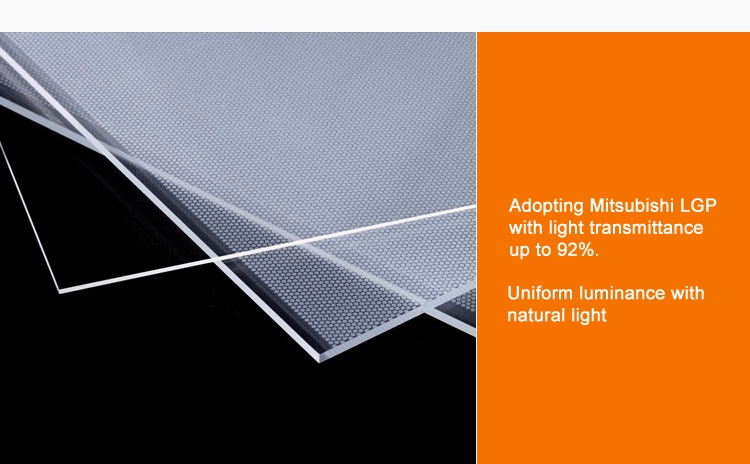

    • Lightman led panel light is with high efficiency, good uniformity by MITSUBISHI LGP; CHIMEI diffuser and TORAY light reflector.

    • 110lm/W high lumen efficacy, with high CRI 82Ra, energy saving LED panel.

    • Lightman office led panel has TUV CB, GS, EMC and ROHS certified etc.

    • Lightman led panel light is easy to be installed. Ideal to be built into system ceilings, offices, and can be used as a hanging fixture.

    • 600x600 LED panel light can directly replace normal T8 and T5 light fixtures.

    • Our led panels has 3 years or 5 years warranty.

    2. Product Specification:

    Model No

    PL-6060-36W

    PL-6060-40W

    PL-6060-48W

    PL-6060-54W

    Power Consumption

    36 W

    40 W

    48 W

    54 W

    LED Qty(pcs)

      204pcs

    204 pcs

    252 pcs

    280 pcs

    LED Type

    SMD 2835

    Color Temperature (K)

    2700 - 6500K

    Color

    Warm/Natural/Cool White

    Light Efficiency (lm/w)

    85lm/w~120lm/W

    Dimension

    595x595x10mm

    Beam Angle (degree)

    >120°

    CRI

     >80Ra / >90Ra

    Power Factor

    >0.95

    Input Voltage

    AC180V - 260V/100~240Vac

    Frequency Range (Hz)

    50 - 60Hz

    Working Environment

     Indoor

    Material of Body

    Aluminum alloy frame and PS Diffuser

    Frame Color RAL

    Pure white/RAL9016; Silver

    IP Rating

    IP20

    IK Grade

    IK06

    Operating Temperature

    -20°~65°

    Dimmable Solution

      Dali/0~10V/PWM/Triac Optional

    Life span

    60,000hours

    Warranty

    3 Years or 5 Years



    3. LED Panel Light Pictures:

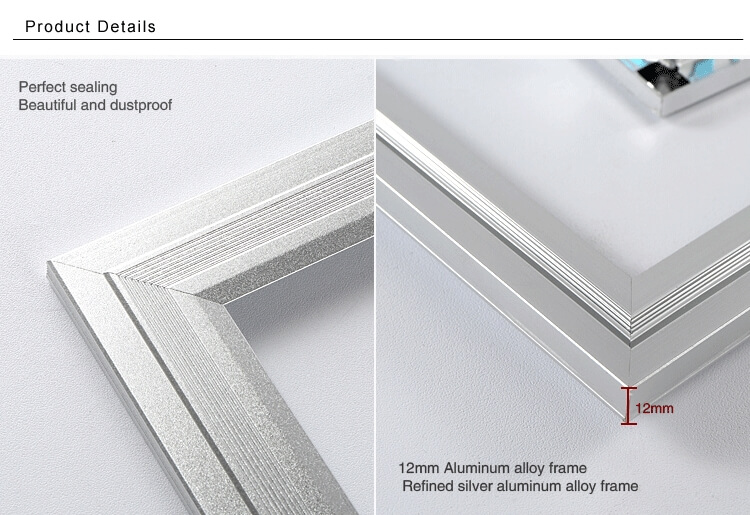

    1. led panel light-Product Detail

    2. led panel lamp-Product Detail

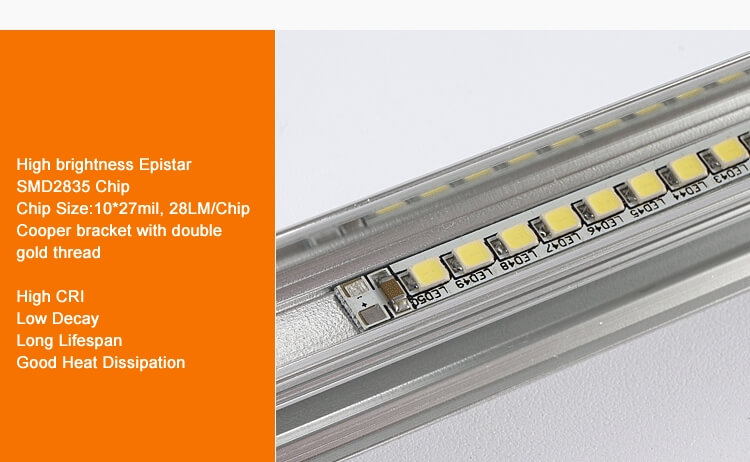

    3. led panel 60x60-Product Detail

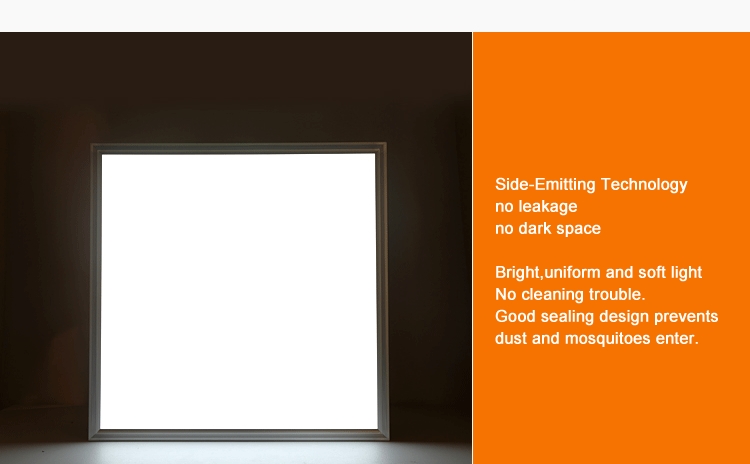

    4. led panel 600x600-Product Detail

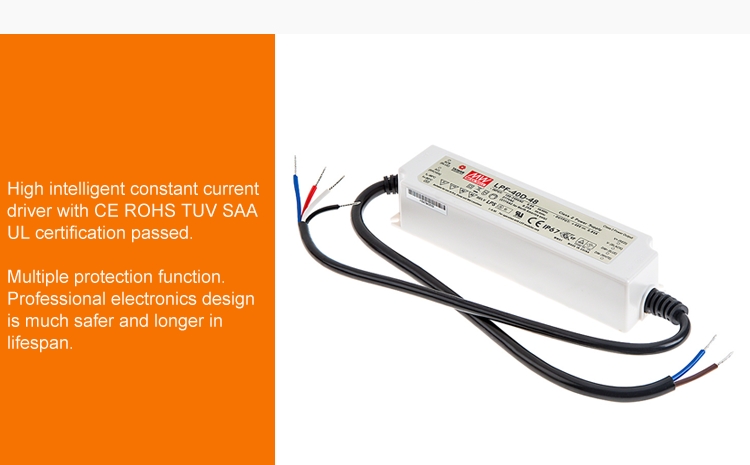

    5. led 600x600-Product Detail

    6. led 60x60-Product Detail

    7. led 595x595-Product Detail

    4. LED Panel Light Application:

    Our led panel light is widely used for commercial lighting, office lighting, hospital lighting, clean room lighting etc. It is popular to be installed in office, school, supermarket, hospital, factory and institution building etc.

    Recessed Installation Project:

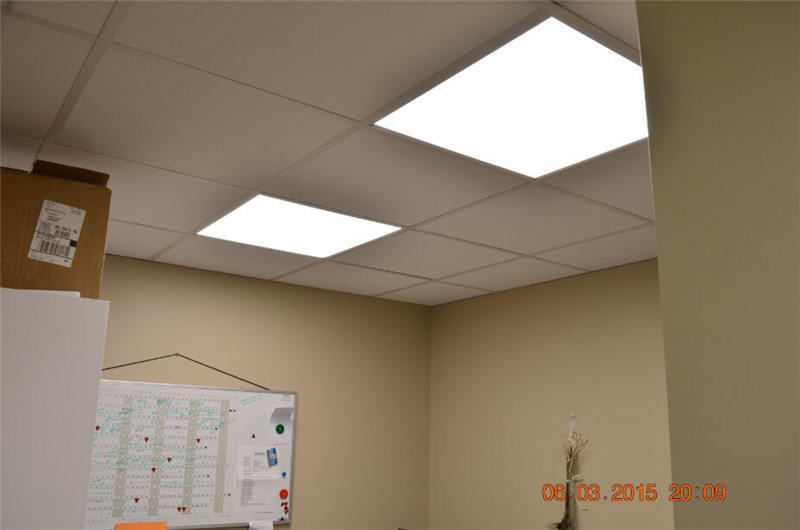

    8. recessed led panel installation example



    Surface Mounted Project:

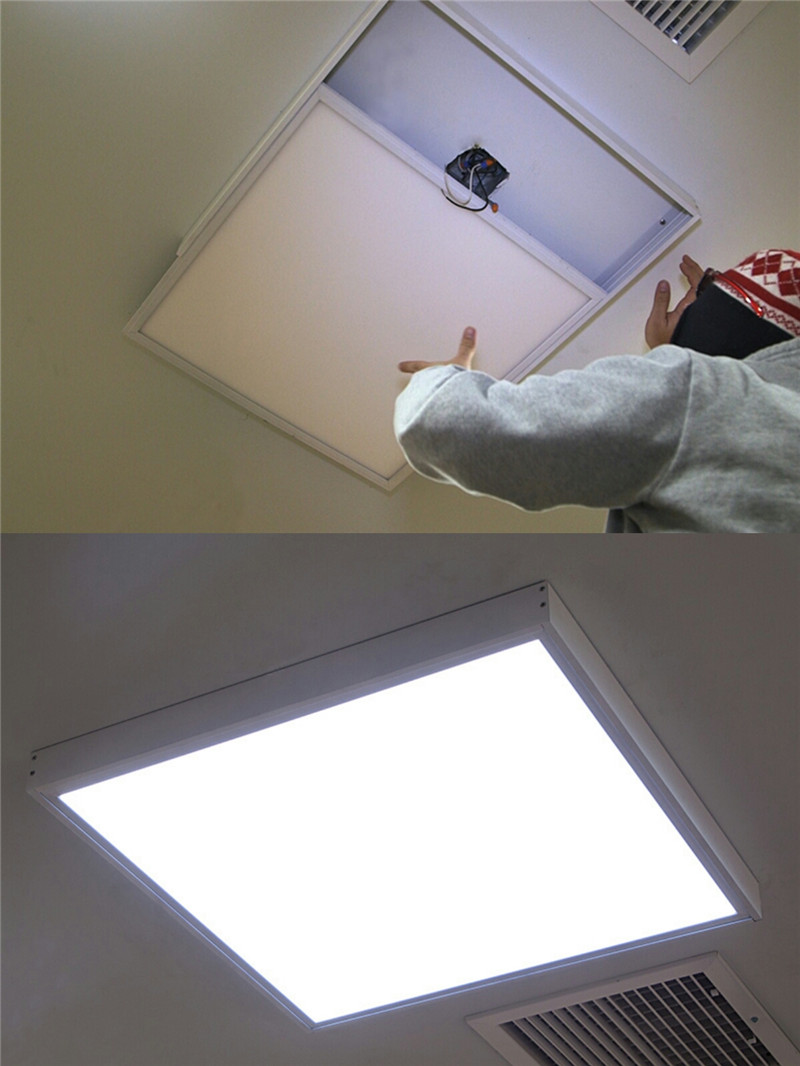

    9. surface mounted installation example



    Suspended Installation Project:

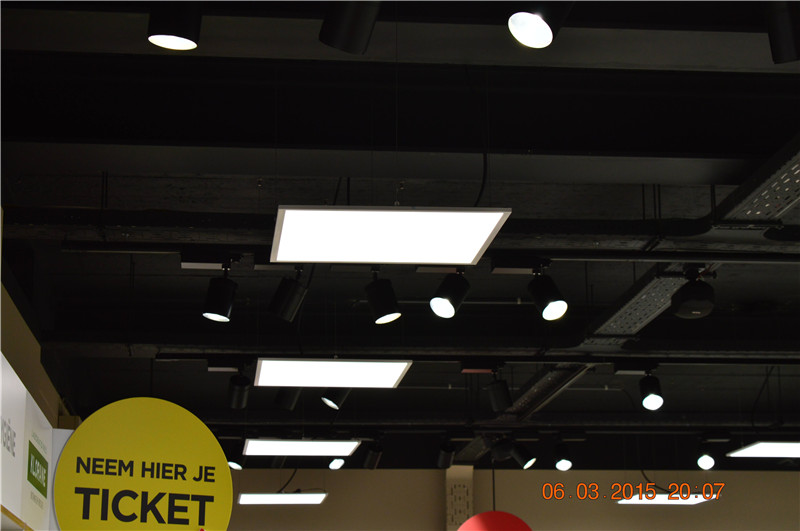

    10. suspended led panel installation example



    Wall Mounted Installation Project:

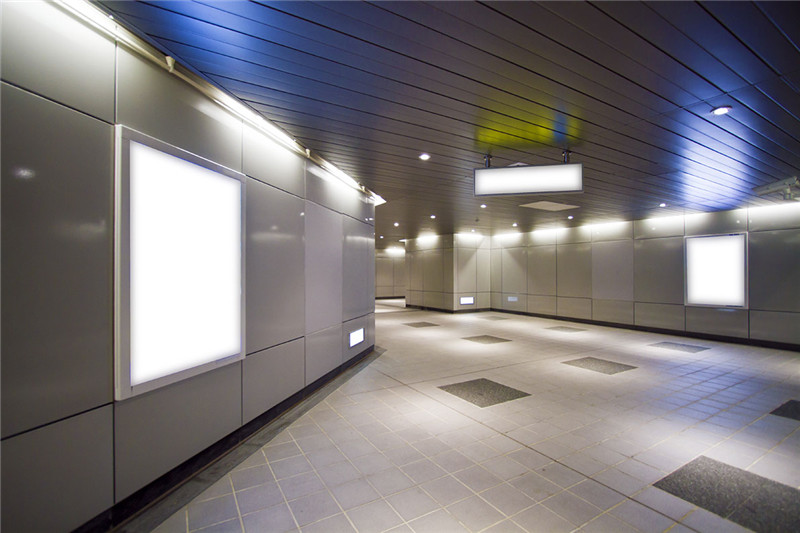

    11. wall mounted led panel installation example




  • Previous:
  • Next:

  • For led panel light, there are ceiling recessed, surface mounted, suspended installation, wall mounted etc installation ways for options with corresponding installation accessories. Customer can choose according to their requirements. 12. Installation Guide

    Suspension Kit:

    The suspended mount kit for LED panel allows panels to be suspended for a more elegant look or where there is no traditional T-bar grid ceiling present.

    Items included in the Suspended Mount Kit:

    Items

    PL-SCK4

    PL-SCK6

    3030

    3060

    6060

    6262

    3012

    6012

    001

    X 2

    X 3

    002

    X 2

    X 3

    003

    X 2

    X 3

    004

    X 2

    X 3

    005

    X 4

    X 6

    Surface Mount Frame Kit:

    This surface mount frame is perfect to install Lightman LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

    First screw the three frame sides to the ceiling.  The LED panel is then slid in.  At last complete the installation by screwing the remaining side.

    The surface mount frame has enough depth to accommodate the LED driver, which should be placed in the centre of the panel to get good heat dissipation.

    Items included in the Surface Mount Frame Kit:

    Items

    PL-SMK3030

    PL-SMK6030

    PL-SMK6060

    PL-SMK6262

    PL-SMK1230

    PL-SMK1260

    Frame Dimension

    302x305x50  mm

    302x605x50 mm

    602x605x50 mm

    622x625x50mm

    1202x305x50mm

    1202x605x50mm

    006

    Frame A

    L302 mm X 2 pcs

    L302mm X 2 pcs

    L602 mm X 2 pcs

    L622mm X 2 pcs

    L1202mm X 2 pcs

    L1202 mm X 2 pcs

    007

    Frame B

    L305 mm X 2 pcs

    L305 mm X 2 pcs

    L605mm X 2 pcs

    L625 mm X 2 pcs

    L305mm X 2 pcs

    L605mm X 2 pcs

    008

    X 8 pcs

    009

    X 4 pcs

    X 6 pcs

    Ceiling Mount Kit:

    The ceiling mount kit is specially designed, the other way to install SGSLight TLP LED panel lights in locations without suspended ceiling grid, such as the plasterboard or concrete ceilings or wall.  It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

    First screw the clips to the ceiling / wall,  and the corresponding clips to the LED panel.  Then couple the clips .  At last complete the installation by placing the LED driver at the back of the LED panel.

    Items included in the Ceiling Mount Kits:

    Items

    PL-SMC4

    PL-SMC6

    3030

    3060

    6060

    6262

    3012

    6012

    010

    X 4

    X 6

    011

    X 4

    X 6

    012

    X 4

    X 6

    013

    X 4

    X 6

    014

    X 4

    X 6

    015

    X 4

    X 6

    016

    X 4

    X 6

    Spring Clips:

    The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

    First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

    Items included:

    Items

    PL-RSC4

    PL-RSC6

    3030

    3060

    6060

    6262

    3012

    6012

    017

    X 4

    X 6

    018

    X 4

    X 6


    13. led panel light in TV station lighting-Application

    TV Station Lighting (Israel)

    15. 600x600mm panel light at customer home-Application

    Home Lighting (USA)

    14. led wall panel light-Application

    Gym Lighting (Austria)

    16. surface led panel 60x60-Application

    Kitchen Lighting (Germany)
