36W 40W 48W Recessed 600×600 LED Panel Light 60×60 for Plasterboard Ceiling

LED Recessed flat panel light 60x60cm is designed to recessed frame with spring clips. It can be used in gird ceiling of corridors, offices in hospitals etc. While it is also able to be installed in ceiling without grid. Then it needs to cut hole correspondingly for this installation.

Item: 600x600 LED Panel Light

Power: 36W /40W /48W /54W /60W /72W /80W

Input Voltage: AC85~265V, 50/60HZ

Color Temperature: Warm White, Natural White, Cool White

Lifespan: ≥50000 Hours

Send email to us Download as PDF

Products categories

Product Detail

Installation Guide

Project Case

Product video

1. Product Features of 60x60 Embedded LED Panel Light.

• Using imported guide plate from Japan Mitsubishi /Taiwan CHIMEI, which is more than 90% for the rate of light guide.

• LED panel light, Material environmental protection, low power consumption, luminous efficiency and brightness illumination are superior to LED tube light.

• Unique optical design: even light distribution, without dizzy light and no light pollution and no frequent.

• LED panel light have radiation protection, anti-fog functions. Light soft, beautiful appearance.

• LED panel light use environment-friendly semiconductor light source, light color uniform, there is conducive to people's eyesight protection and health. No radiation, No ultraviolet, No stroboscopic.

2. Product Specification:

Model No	PL-6060-36W	PL-6060-40W	PL-6060-48W	PL-6060-54W
Power Consumption	36W	40W	48W	54W
Luminous Flux (Lm)	2880～3240lm	3200～3600lm	3840～4320lm	4320～4860lm
LED Qty (pcs)	192pcs	204pcs	252pcs	300pcs
LED Type	SMD 2835
Color Temperature (K)	2700 – 6500K
Color	Warm/Natural/Cool White
Dimension	61261212mm Cutting Hole: 595*595mm
Beam Angle (degree)	>120°
Light Efficiency (lm/w)	>80lm/w
CRI	>80
Power Factor	>0.95
Input Voltage	AC 85V - 265V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and PS diffuser
IP Rating	IP20
Operating Temperature	-20°~65°
Life span	50,000hours
Warranty	3 Years

3. LED Panel Light Pictures:

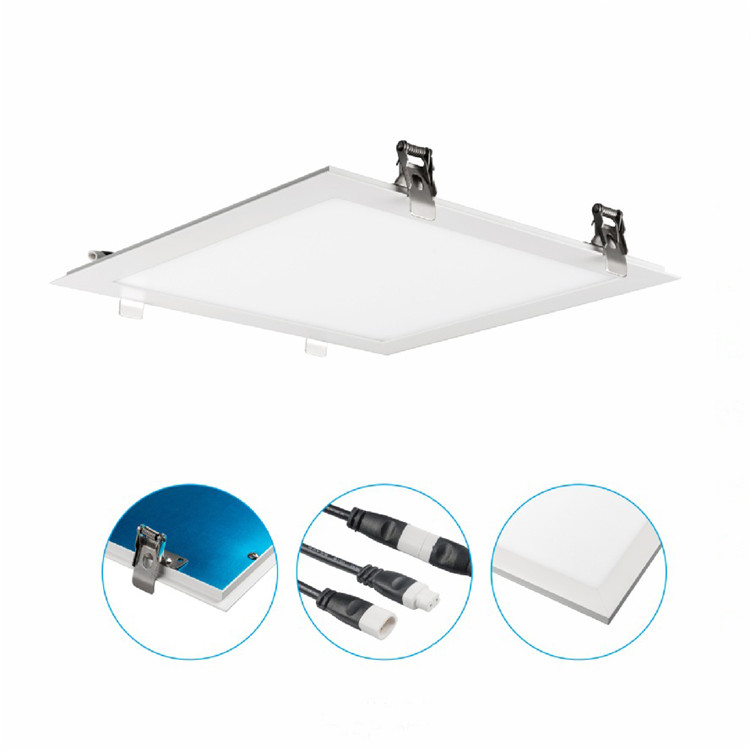

1.recessed led panel light 2. light fixture 60x60cm 3. Spring Clip for recessed led panel light 4. shenzhen led panel lamp

6. led 60x60-Product Detail

7. led 595x595-Product Detail

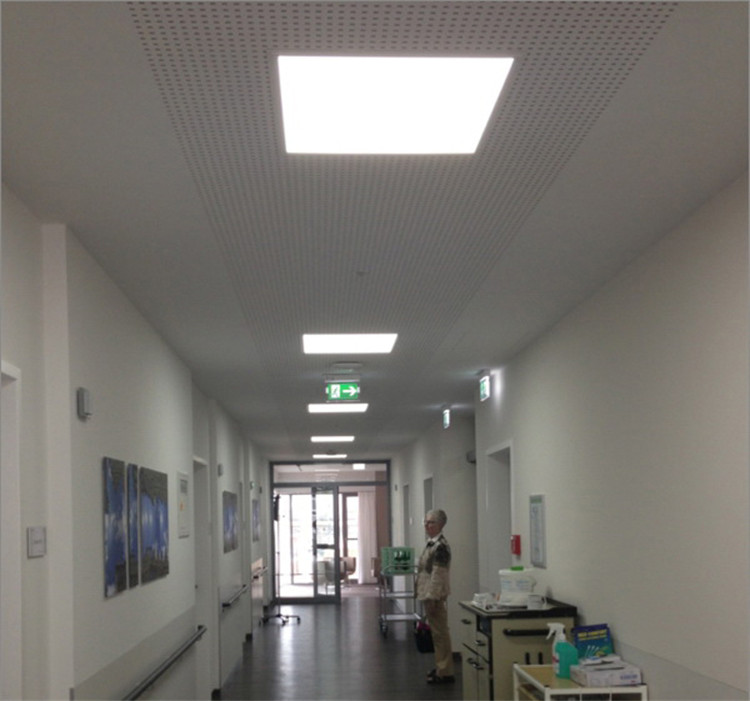

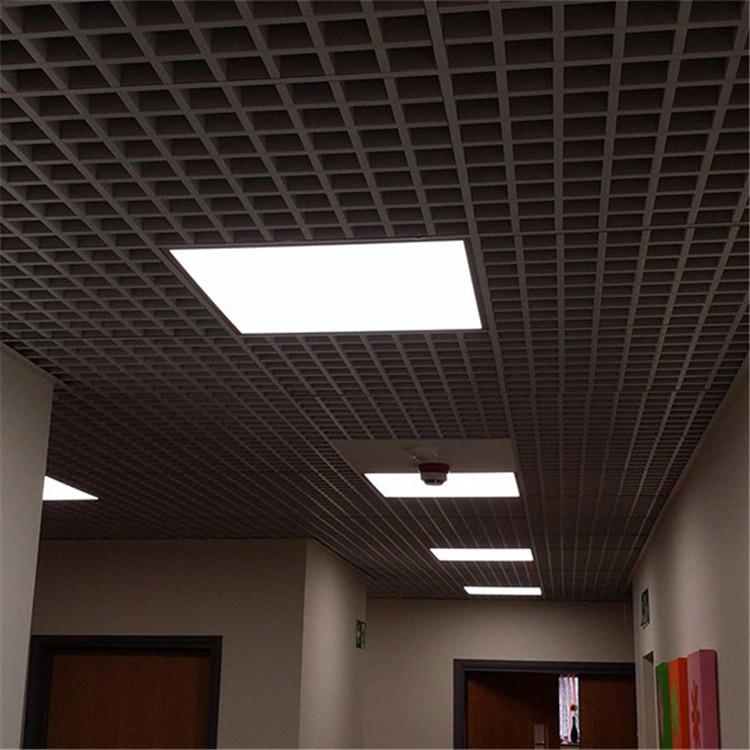

4. LED Panel Light Application:

Recessed led panel light is widely used for Retail shops and Supermarkets, Commercial buildings, Hotels and Restaurants, Commercial, Schools, Colleges, Hospitals, offices etc, places where energy saving and high color rendering index lighting are needed.

7. led 6060 slim panel light

8. panel led slim

Previous: 20W 300×300 Surface Mounted LED Flat Light Panel Fixture Warm White

Next: 36W 40W 60W 300×1200 Recessed LED Ceiling Light Panel 30×120

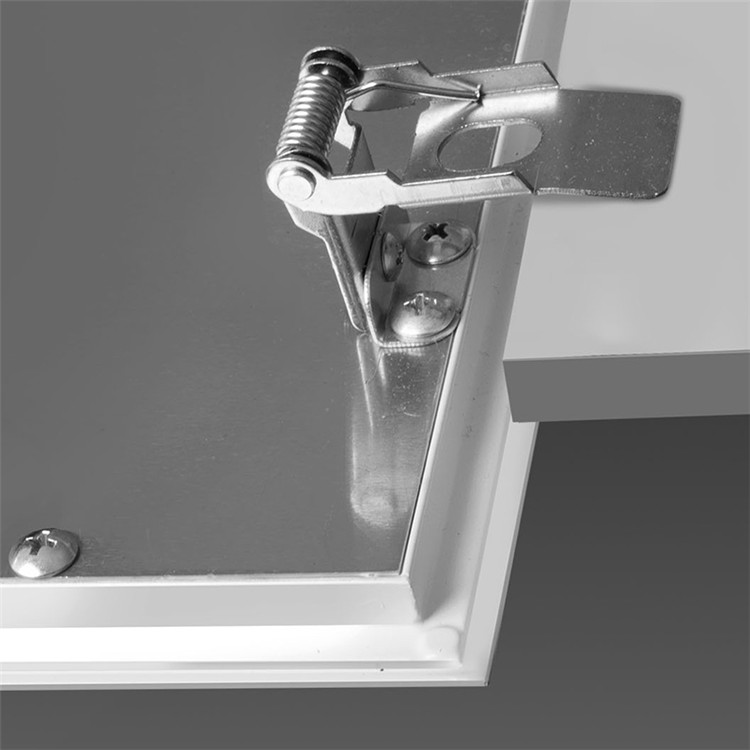

Installation Guide: For led panel lamps, the recessed frame with spring clips. This one need to cut hole size according to the inner frame size. 9. Spring Clip Installation

Spring Clips:

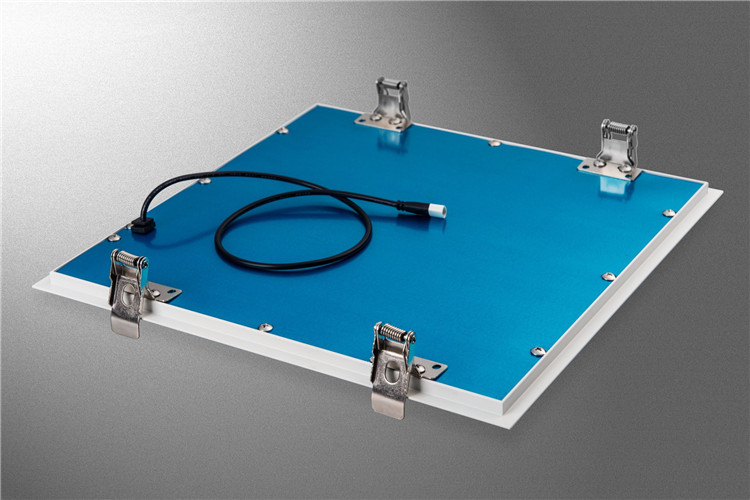

The spring clips are used to install the LED panel in the plasterboard ceiling with cut hole. It is ideal for offices, schools, hospitals etc. where recessed mounting is not possible.

First screw the spring clips to the LED panel. The LED panel is then inserted into the cut hole of the ceiling. At last complete the installation by adjusting the position of the LED panel and make sure the installation is firm and safe.

Items included:
