16W China Panel Light Supplier 6 9 12 18 24 Watt Surface BIS CE Ceiling Mounted LED Light Fixtures Square Surface Panel Light

The surface mount LED panel light is specially used where there is NO provision for false ceiling. LED Panel light are manufactured with very high quality metal enclosure which helps LED Panel light to withstand physical damage as well corrosion due to moisture. The diffuser of this Panel light has latest technology anti-glare diffuser that helps LED light to dispense equally on the area of light. The LED technology could save upto 70% of the electricity that is consumed every month.


  • Item: Square Surface LED Panel Light
  • Power: 24W
  • Input Voltage: AC85-265V, 50/60 HZ
  • Color Temperature: Warm / Natural / Pure White
  • Lifespan: ≥50000 Hours
  • Product Detail

    Installation Guide

    Project Case

    1.Product Introduction of 600x600mm Square LED Surface Flat Panel Light 40W.

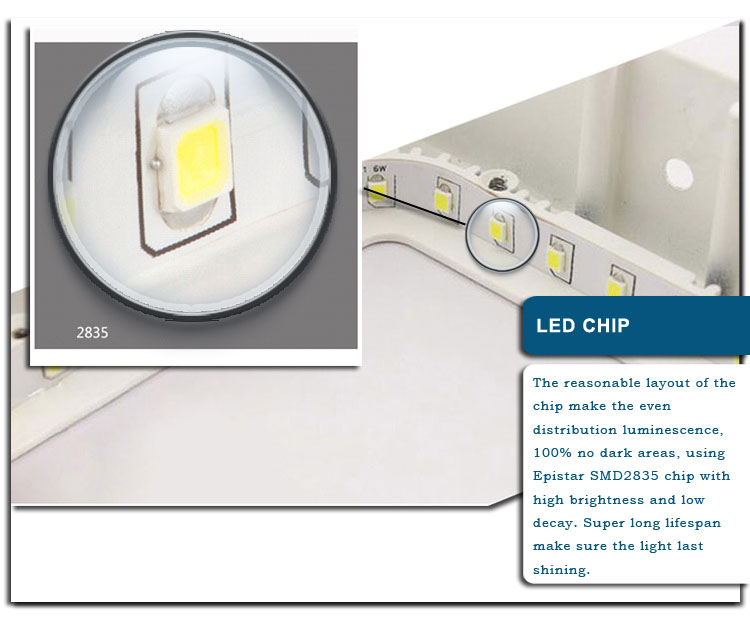

    • 60×60 led surface panel light use Epistar SMD2835 chip with high lumen is 100lm/w.

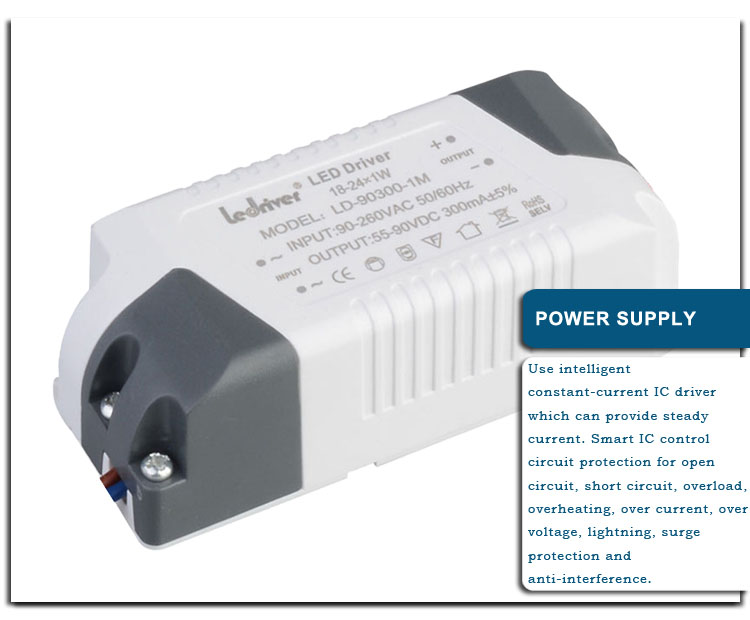

    • No flick driver with our thick material box has long lifespan.

    • Light transmission, bright and soft, warm white, natural white and pure white light color for your choice.

    • For square led surface panel lamp, fashionable appearance and save space. Perfectly match your bathroom, living room, office and so on.

    • Surface mounted. Safe and easy to install with some screws included, no need to open the hole.

    • Lower maintenance costs. 50000 hours average extremely long life reduces re-lamp frequency and save your effort to replace lights.

    2. Product Parameter:

    Model No

    Power

    Product Size

    LED Qty

    Lumens

    Input Voltage

    CRI

    Warranty

    DPL-MT-S5-6W

    6W

    120*40mm

    30*SMD2835

    >480Lm

    AC85~265V

    50/60HZ

    >80

    3 Years

    DPL-MT-S7-12W

    12W

    170*40mm

    55*SMD2835

    >960Lm

    AC85~265V

    50/60HZ

    >80

    3 Years

    DPL-MT-S9-18W

    18W

    225*40mm

    80*SMD2835

    >1440Lm

    AC85~265V

    50/60HZ

    >80

    3 Years

    DPL-MT-S12-24W

    24W

    300*40mm

    120*SMD2835

    >1920Lm

    AC85~265V

    50/60HZ

    >80

    3 Years

    PL-S600-40W

    40W

    600*40mm

    204*SMD2835

    >3600Lm

    AC85~265V

    50/60HZ

    >80

    3 Years

    3.LED Panel Light Pictures:

    1. 6w surface panel light

    2. square led panel 120x120mm

    3. 6w square led surface panel light

    4. white frame led panel downlight

    5. 6w led panel downligt

    6. 6500k dimmable led panel downlight

    7. round led surface mounted panel light 6w

    8. square led flat panel light 85x85mm

    9. cct adjustable led panel downlight

    10.  3000k led flat panel light

    4. LED Panel Light Application:

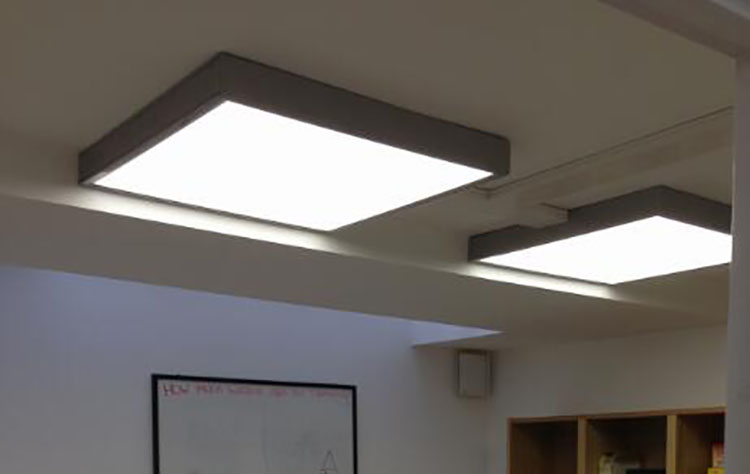

    LED panel lighting can be used in hotel lighting, restaurant lighting, supermarket lighting, home lighting, exhibition lighting, meeting room lighting, multi-function room lighting, exclusive shop lighting and shopping mall lighting etc.

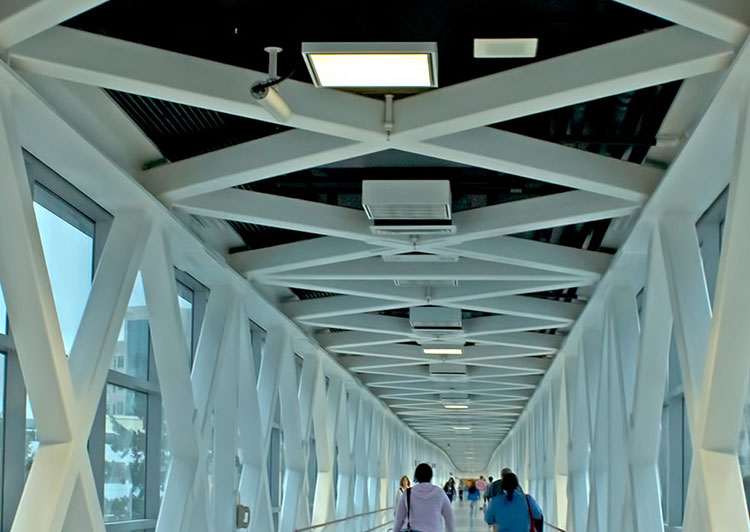

    Platform Corridor Picture

    12. led panel light 600x600


  • Previous:
  • Next:

  • 1.Accessory.

    2.Drill a hole and install the screws.

    3.Connect the power supply cable with the electricity.

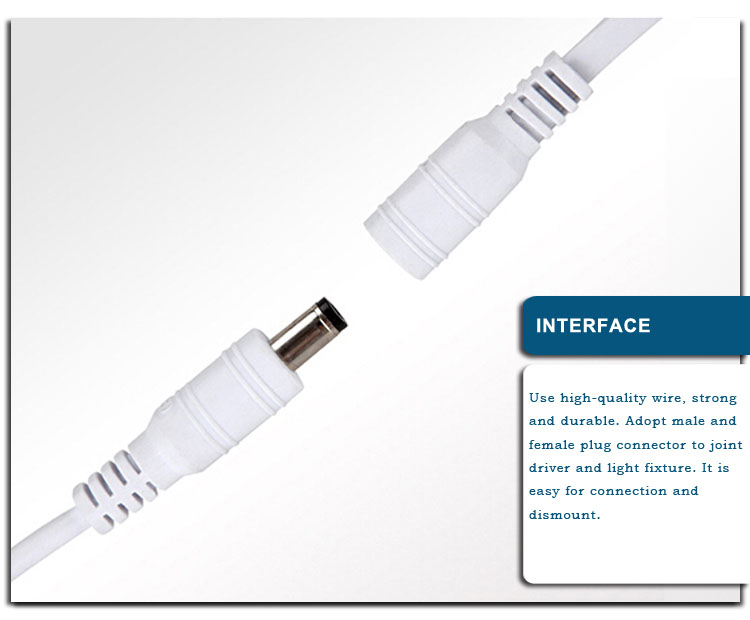

    4.Connect the power supply plug with the panel light plug, install the panel light screws.

    5.Finish the installation.

    13. round led surface panel light installation guide


    14. surface mounted led panel 36w

    Clinic Lighting (UK)

    15. surface led panel 60x60

    Kitchen Lighting (Germany)

    16. square led panel light 18w

    Office Lighting (Germany)

    17. recessed square led panel 18w

    Hotel Lighting (China)
