Reasonable price Led Panel Light Osram - 40W 300×1200 CCT Tunable White Frameless LED Ceiling Sky Panel Light – Lightman Detail:
1.Product Introduction of 598×598 Frameless LED Sky Panel Light
• The frameless led panel light can be used to stitch many panel lights to be a big led panel light size. And it has Reflective area larger. What’s more, we can paint different patterns according to customer requirements.
• Size, image can be custom, not only sky clouds, can be more natural and realistic to show the sky
and cloud, no RF interference.
• Low power consumption, high power efficiency, >70LM/W, RA>80, PF>0.95.
• All aluminum back-plate dissipation feature prolongs the lifespan of LEDs, 25℃ temperature rising, 600*600mm dissipation area.
2. Product Parameter:
|
Model No |
PL-6060-45W-FP |
PL-6262-45W-FP |
PL-3060-40W-FP |
PL-3030-20W-FP |
PL-30120-45W-FP |
|
Power Consumption |
45W |
45W |
40W |
20W |
45W |
| Dimension (mm) | 598*598*17mm |
620*620*17mm |
298*598*17mm |
298*298*17mm |
298*1198*17mm |
|
Luminous Flux (Lm) |
3150～3420lm |
3150～3420lm |
2800～3040lm |
1400～1560lm |
3150～3420lm |
|
LED Qty (pcs) |
238pcs |
238pcs |
238pcs |
126pcs |
476pcs |
| LED Type |
SMD4014 |
||||
|
Color Temperature (K) |
2800K-6500K |
||||
| Output Voltage |
DC24V |
||||
| Input Voltage |
AC 85V - 265V, 50 - 60Hz |
||||
|
Beam Angle (degree) |
>120° |
||||
| CRI |
>80 |
||||
|
Power Factor |
>0.95 |
||||
|
Working Environment |
Indoor |
||||
|
Material of Body |
Aluminum Alloy + Acrylic + PS Diffuser |
||||
|
IP Rating |
IP20 |
||||
|
Operating Temperature |
-20°~65° |
||||
|
Installation Option |
Recessed/Suspended/Surface Mounted |
||||
|
Life span |
50,000hours |
||||
|
Warranty |
3 Years |
||||

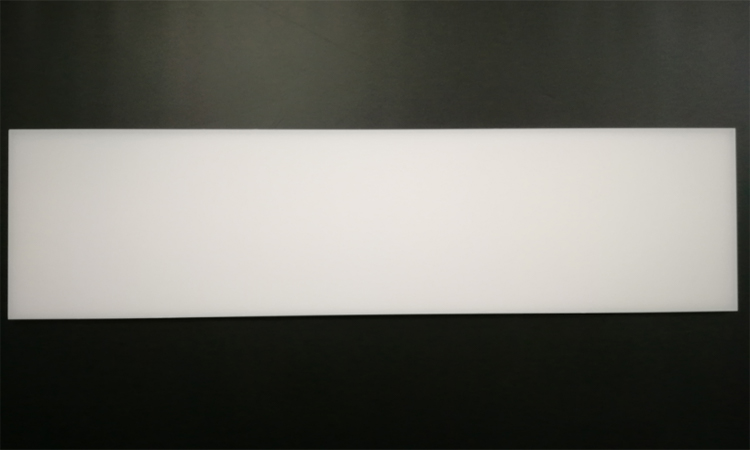

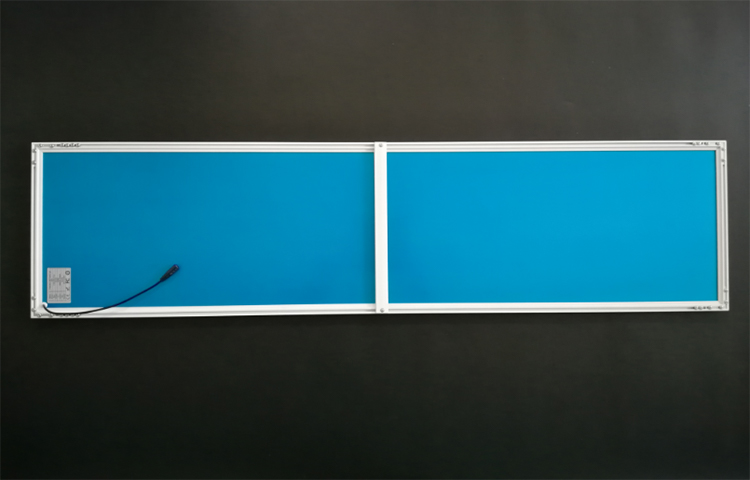

3.LED Panel Light Pictures:
4. LED Panel Light Application:
Frameless LED Sky Panel Light is widely used for office, hospital, bedroom, shopping mall, schools, factories, gym, hotel, anime city etc.
