Popular Design for Led Panel 30×120 - Ultra Slim 72W 80W Sound & Light Sensor LED Panel Lamp 1200×600 – Lightman Detail:

1. Product Features of 600×1200 Sound & Light Sensor LED Panel Light.

•Lights on both sides, primary ray is very soft after diffuse light through light guide plate .

•Stainless steel frame and aluminum back plate, ensure good heat dissipation.

•The appearance is thin, beautiful and clean, occupies less space, the workmanship is fine and also has soft light.

• Long lifespan capacitance, external driver, sharply increase the lifespan of driver, modular design, easy to replace once the driver failed.

•Four plugs of screw hole is made of white EVA foam , ensure waterproof ,dustproof , rustproof and beautiful appearance.

2. Product Specification:

Model No

Pl-60120-48W

PL-60120-60W

PL-60120-72W

PL-60120-80W

Power Consumption

48W

60W

72W

80W

Luminous Flux (Lm)

 3840-4320lm

4500-5100lm

5400-6120lm

6000-6800lm

LED Type

SMD 2835/SMD4014

Color Temperature (K)

2700 - 6500K

Color

Warm/Natural/Cool White

Dimension

295x1195x10mm

Beam Angle (degree)

>120°

CRI

 >80

Power Factor

>0.95

Input Voltage

AC 85V - 265V/AC220-240V

Frequency Range (Hz)

50 - 60Hz

Working Environment

 Indoor

Material of Body

Aluminum alloy frame and PS diffuser

IP Rating

IP20

Operating Temperature

-20°~65°

Dimmable

Optional

Life span

50,000hours

Warranty

3Years or 5 Years

3. LED Panel Light Pictures:

2. 2ft x 4ft emergency led panel light
3. Lightman 1200x600mm led flat panel light
3. sound sensor switch
4. sound light switch for led panel light
5. sound sensor switch for 60x60 led panel
6. LED Panel Light Aging Testing
7. led 60x60-Product Detail
8. led Product Detail

4. LED Panel Light Application:

   Apply to the court, the passage, the corridor, the stairs, the depot, the bathroom, the toilet ,children room, and so on. Its the embodiment of real state management and building intellectualization.

Recessed Installation Project:

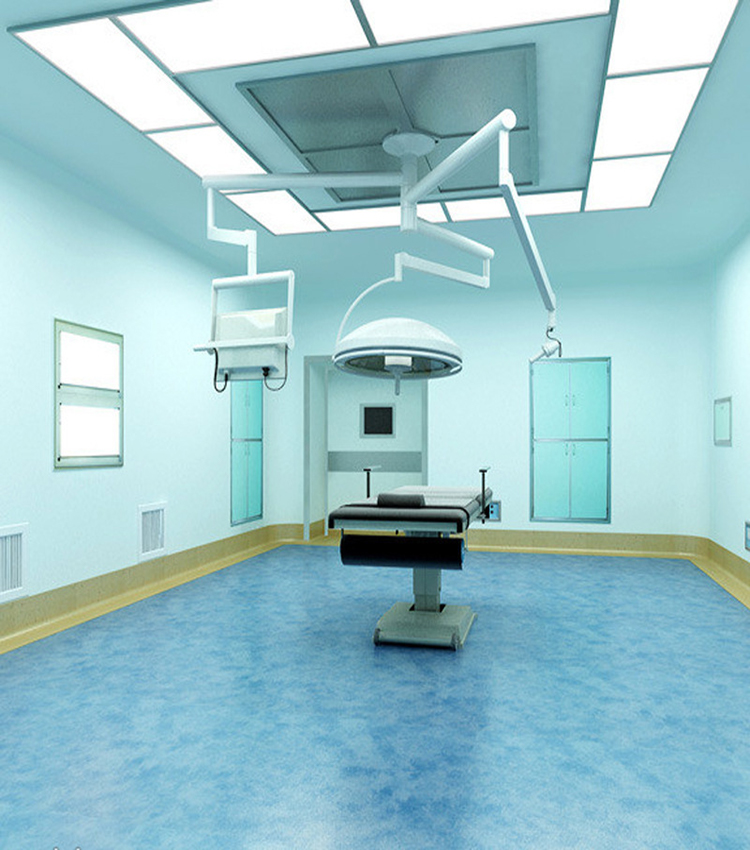

11. Clean room led panel light were installed in operation room of hospital

Wall Mounted Installation Project:

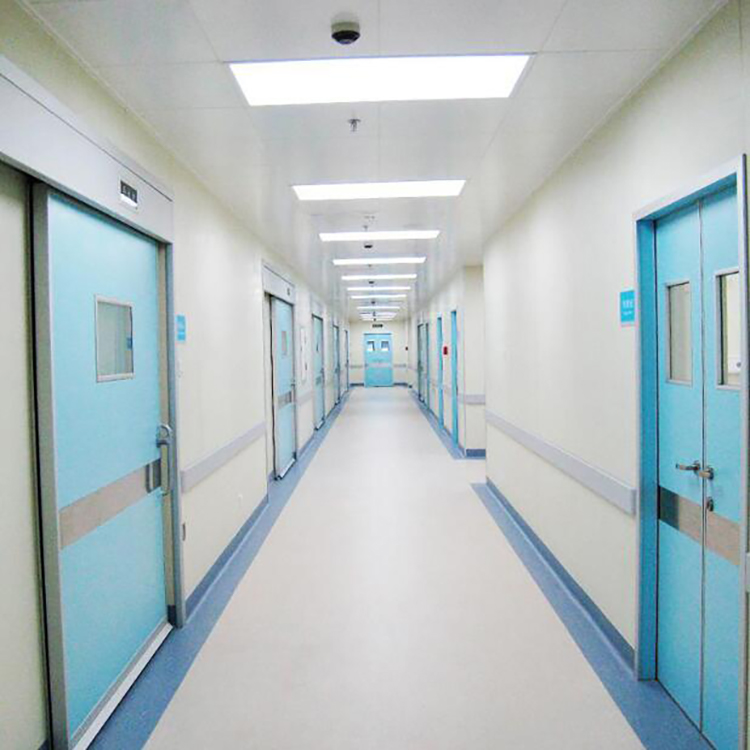

10. wall mounted led panel installation example

Suspended Installation Project:

12. Lightman 120x60 CleanroomLED Panel Light were installed in Hospital

Surface Mounted Installation Project:

11. suspended emergency led panel 595x1195

Product detail pictures:

Popular Design for Led Panel 30×120 - Ultra Slim 72W 80W Sound & Light Sensor LED Panel Lamp 1200×600 – Lightman detail pictures

Popular Design for Led Panel 30×120 - Ultra Slim 72W 80W Sound & Light Sensor LED Panel Lamp 1200×600 – Lightman detail pictures
