One of Hottest for 40w Led Panel Light - Energy Saving 300x600mm CCT Tunable White Anti-glare LED Panel Light – Lightman Detail:

1.Product Introduction of 295x595mm UGR<19 or UGR<16 LED Panel Light.

• LED Panel light frame made of premium oxidation aluminum alloy. The structure is well

designed for heat reduction.

• We use prismatic diffusion plate with no glare. And its transmittance up to 90%.

• 36W 40W Panel Light with Self-protection system inside, which ensure the normal running

in case of unstable voltage.

• LED Panel with Epistar LED as the light source,which with high bright and long lifespan.

• 300*600mm panel light no twinkle and noise, no Hg, Pb pollution, no IR and UV radiation

and interference.

• LED panel light is easy to be installed. Our led ceiling panel lights are ideal to be recessed

in system ceilings, drop ceiling, plasterboard ceiling, cassette ceiling and also can be used as

a suspended light fixture.

• UGR19 led panel lighting can be come with color temperature adjustable and brightness dimmable function.

2. Product Parameter:

Model No	PL-3060-18W-UGR	PL-3060-20W-UGR	PL-3060-36W-UGR	PL-3060-40W-UGR
Power Consumption	18W	20W	36W	40W
Luminous Flux (Lm)	1620～1800lm	1800～2000lm	3240～3600lm	3600～4000lm
LED Qty (pcs)	96pcs	100pcs	192pcs	204pcs
LED Type	SMD 2835
Color Temperature (K)	2800 – 6500K
Color	Warm/Natural/Cool White
Dimension	595x295x11mm
Beam Angle (degree)	90°
Light Efficiency (lm/w)	>90lm/w
CRI	>80
Power Factor	>0.95
Input Voltage	AC 85V - 265V
Frequency Range (Hz)	50 - 60Hz
Working Environment	Indoor
Material of Body	Aluminum alloy frame and Prismatic diffuser
IP Rating	IP20
Operating Temperature	-20°~65°
Dimmable	Optional
Life span	50,000hours
Warranty	3 Years or 5 Years

3.LED Panel Light Pictures:

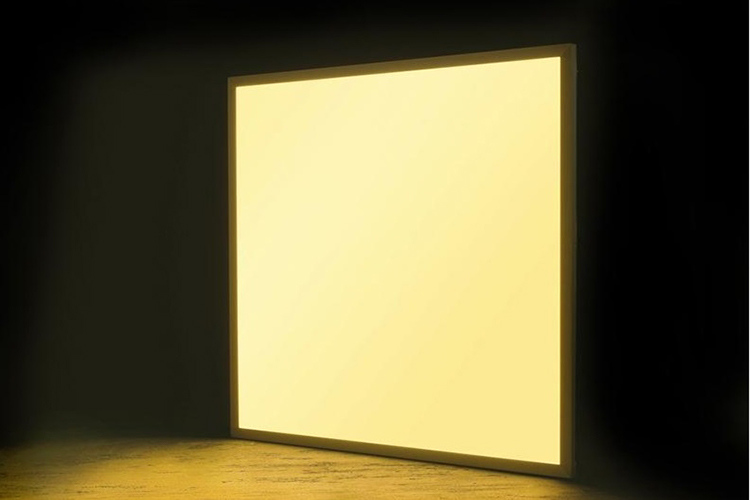

1. ugr19 led panel light 60x60

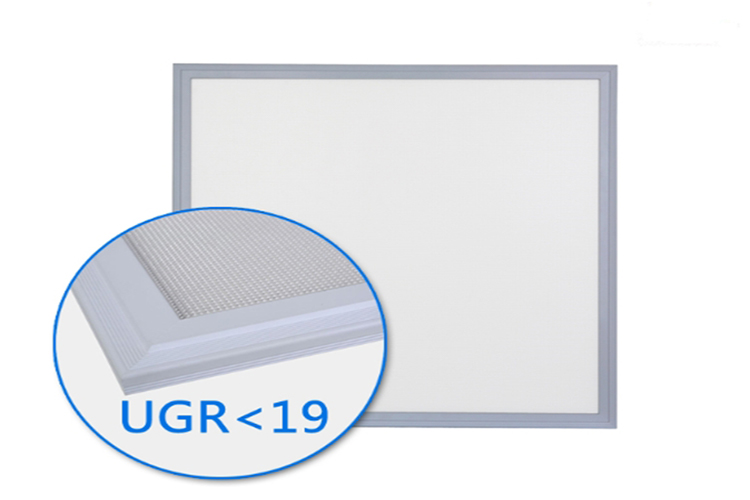

2. UGR19 led panel light

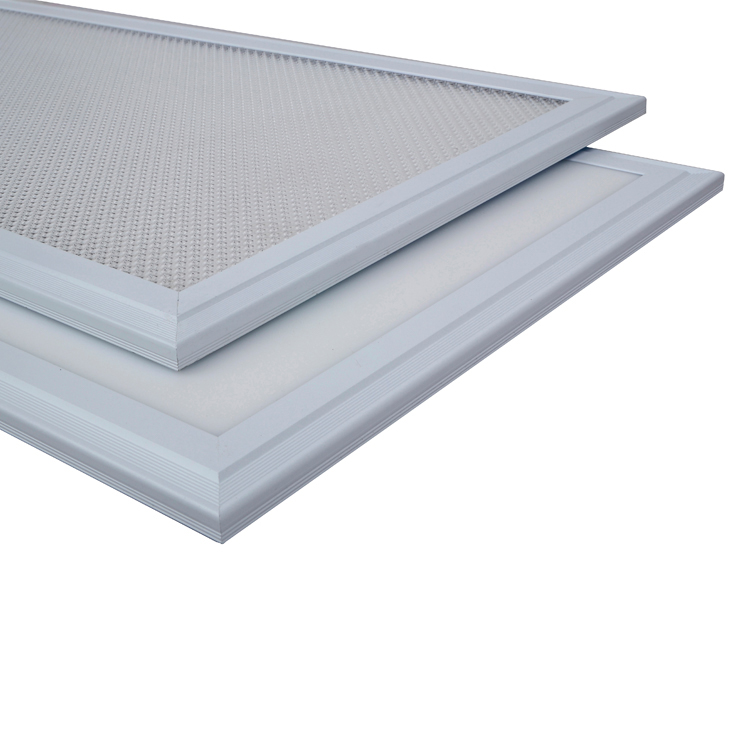

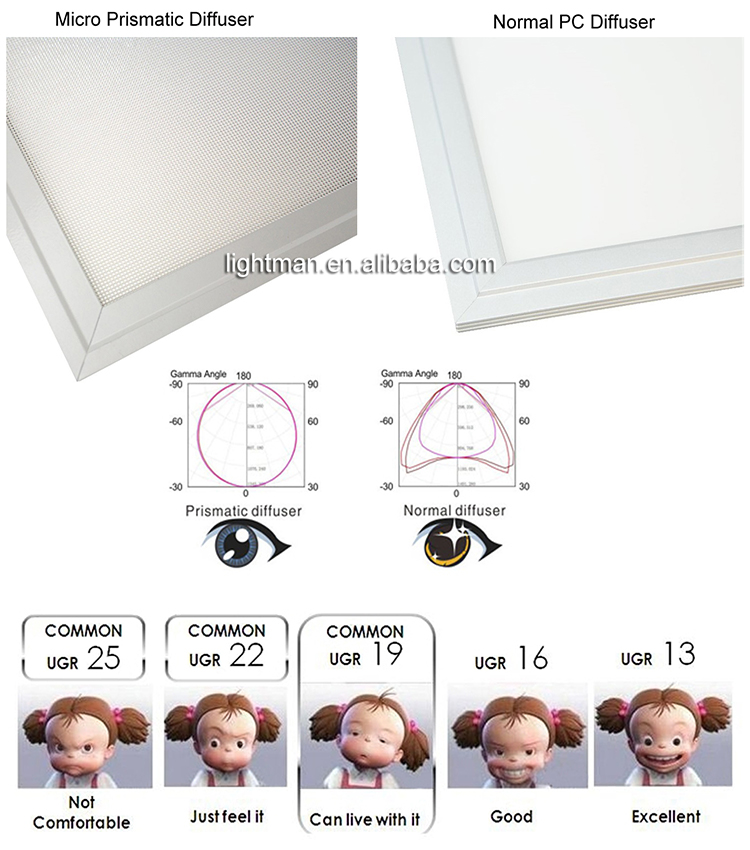

3. Micro Prismatic Diffuser VS Norma PS Diffuser

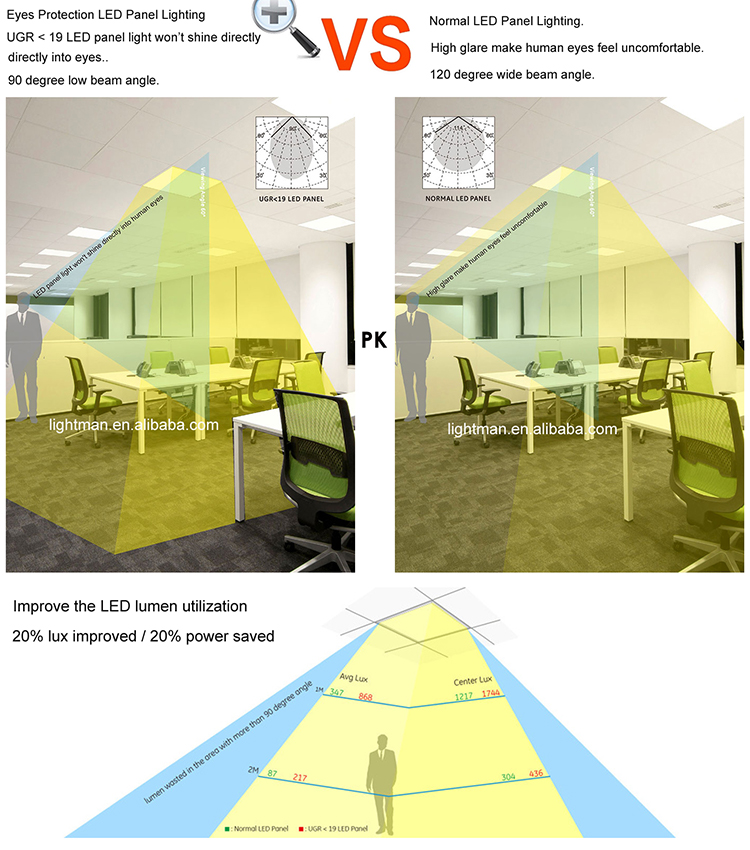

4. UGR19 VS Normal LED Panel Light
5. Prismatic Diffuser VS Normal Diffuser

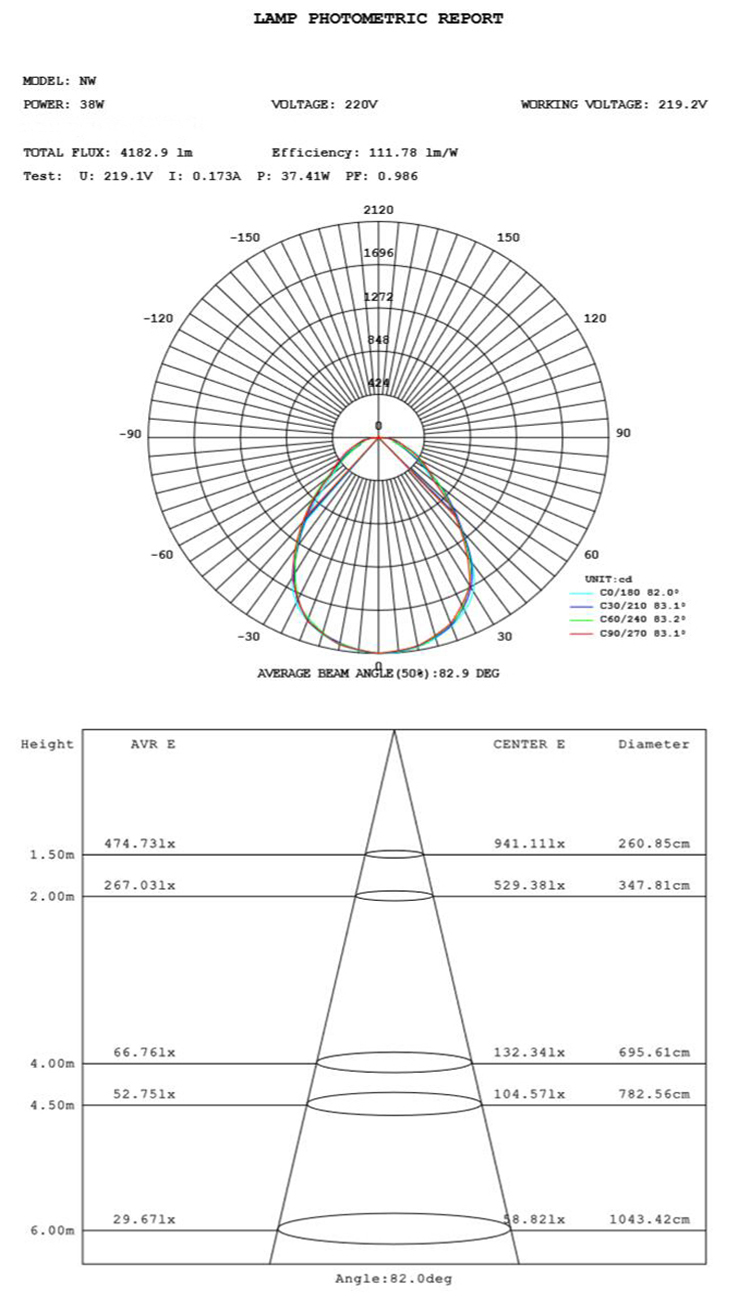

6. UGR19 led Panel Light Photometric Test Report
7. ugr19 led flat panel light
7. led 60x60-Product Detail
8. led Product Detail

4. LED Panel Light Application:

Frameless LED Sky Panel Light is widely used for office, hospital, bedroom, shopping mall, schools, factories, gym, hotel, anime city etc.

Wall Mounted Installation Project:

11. wall mounted ugr16 led panel light

Recessed Installation Project:

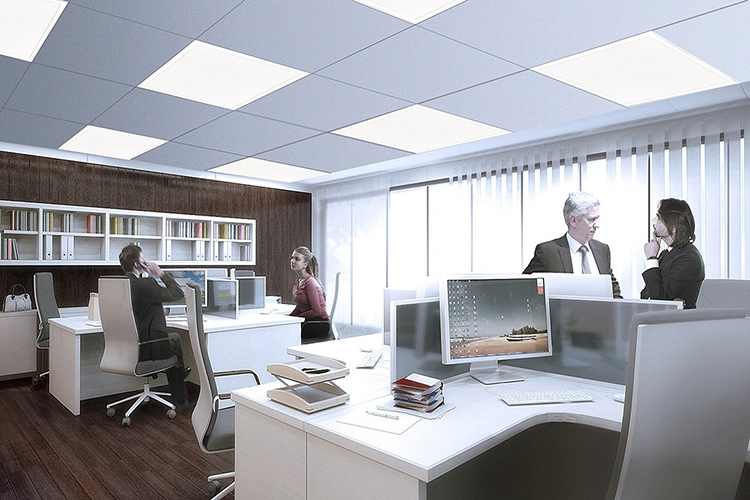

8. recessed ugr16 led panel for office lighting

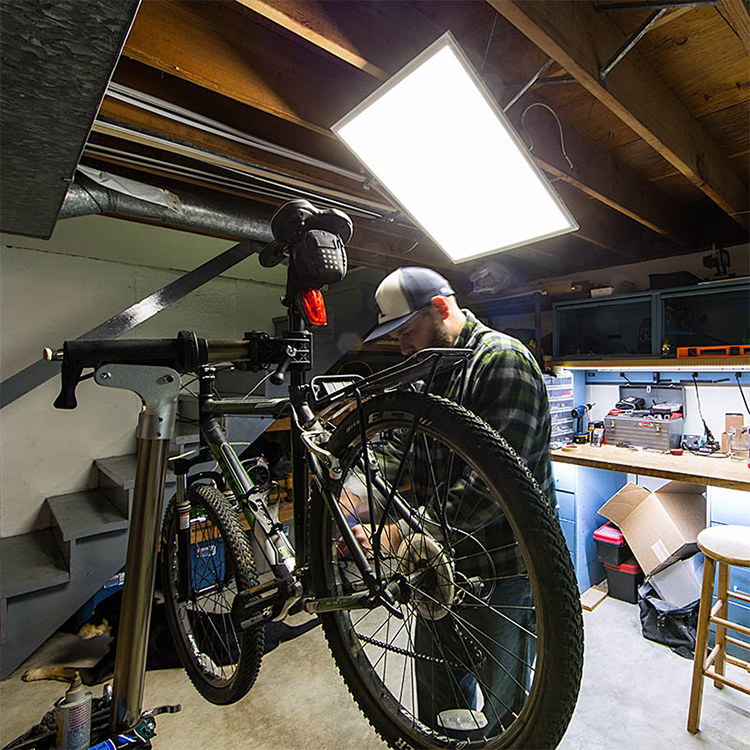

Suspended Installation Project:

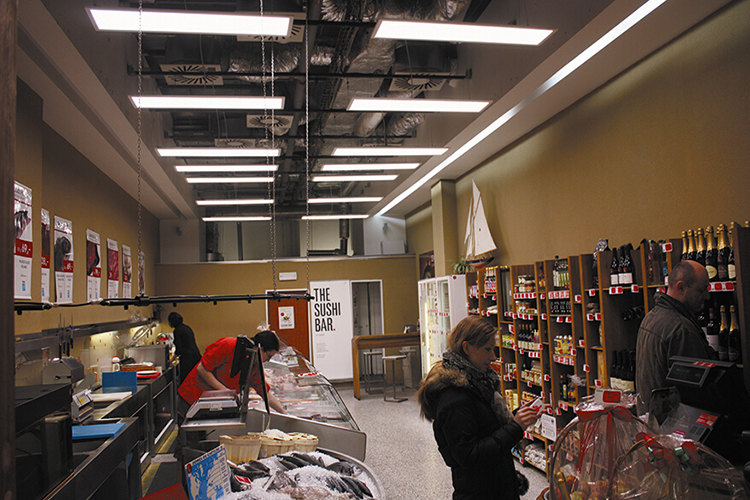

10. suspended led panel light 30x120

Surface Mounted Installation Project:

10. suspending led panel
