Newly Arrival Clean Room Led Panel Light - 20W 40W 30×60 CCT Dimmable Suspended No Frame LED Ceiling Panel Light – Lightman Detail:

1.Product Introduction of 298x598mm Frameless LED Panel Light.

• 30×60 frameless led panel light uses 238pcs*SMD4014 as led chips, high luminous

intensity and efficiency.

• Rimless led panel light, there are 0-10v dimmable, color temperature adjustable and

brightness dimmable, triac dimmable etc.

• Seamless led flat panel light energy saving. Saving 55%-70% electricity cost to traditional panels.

• Special different view angles, mixing lighting design. Great light evenness, no dark zones.

• High light output at a reduced energy consumption of up to 50%. and it has over 50000 hours lifespan.

• Different color temperature for your option, 3000k, 40000k, 5000k, 6000k. The CRI is more than 80, and beam angle is bigger than 120°.The lighting efficiency of our panel light average 3% more than other suppliers.

2. Product Parameter

Model No

PL-6060-45W-FS

PL-6262-45W-FS

PL-3060-40W-FS

PL-3030-20W-FS

PL-30120-45W-FS

Power Consumption

45W

45W

40W

20W

45W

Dimension (mm) 598*598*17mm

620*620*17mm

298*598*17mm

298*298*17mm

298*1198*17mm

Luminous Flux (Lm)

3150~3420lm

3150~3420lm

2800~3040lm

1400~1560lm

3150~3420lm

LED Qty (pcs)

     238pcs

238pcs

238pcs

126pcs

476pcs

     LED Type

SMD4014

Color Temperature (K)

2800K-6500K

Output Voltage

DC24V

Input Voltage

AC 85V - 265V, 50 - 60Hz

Beam Angle (degree)

 >120°

CRI

  >80

Power Factor

 >0.95

Working Environment

 Indoor

Material of Body

Aluminum Alloy + Acrylic + PS Diffuser

IP Rating

IP20

Operating Temperature

-20°~65°

Installation Option

Recessed/Suspended/Surface Mounted

Life span

50,000hours

Warranty

3 Years



3.LED Panel Light Pictures:

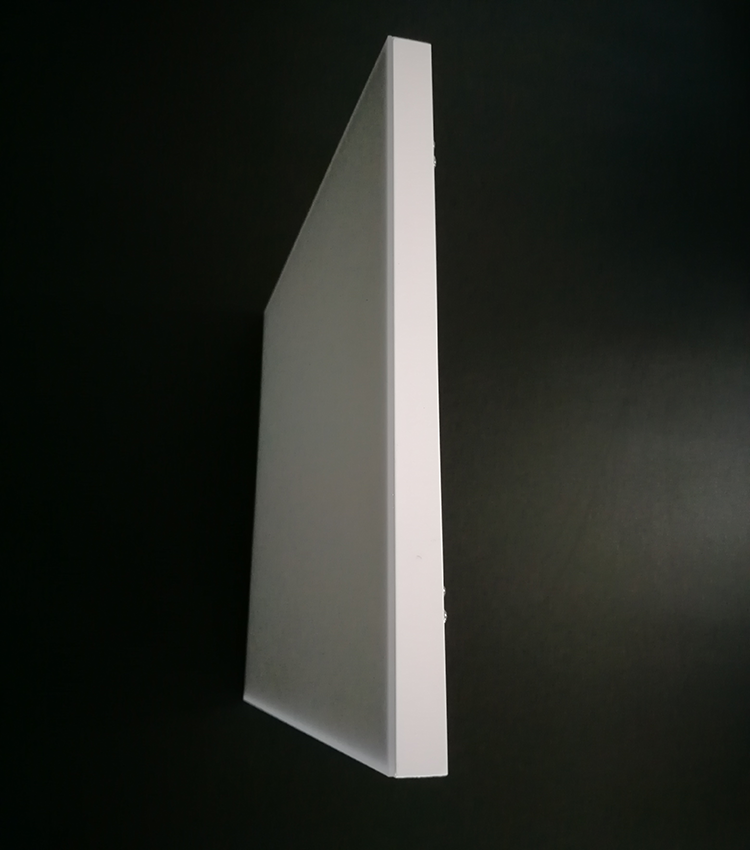

1. frameless led pa nel light

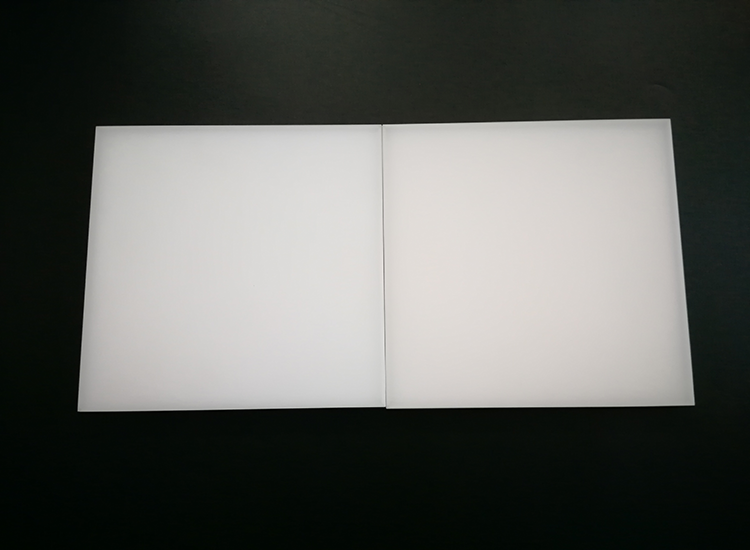

2. frameless led panel light 30x30
3. frameless led panel light 598x598
5. frameless led ceiling panel light

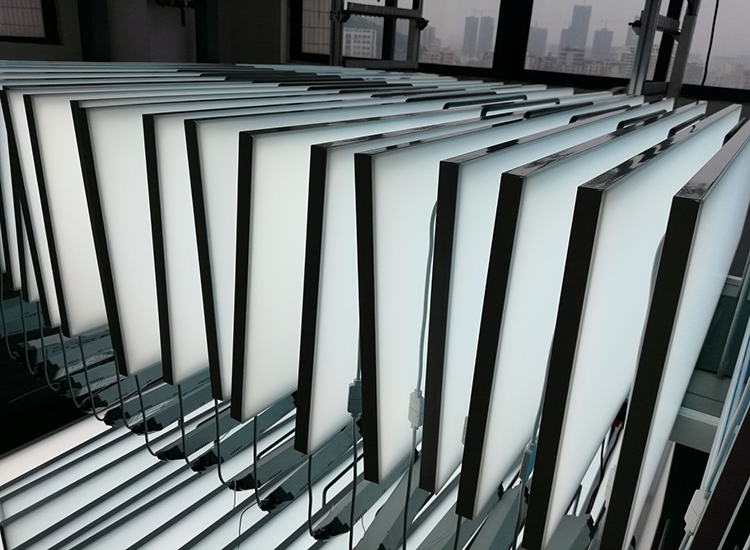

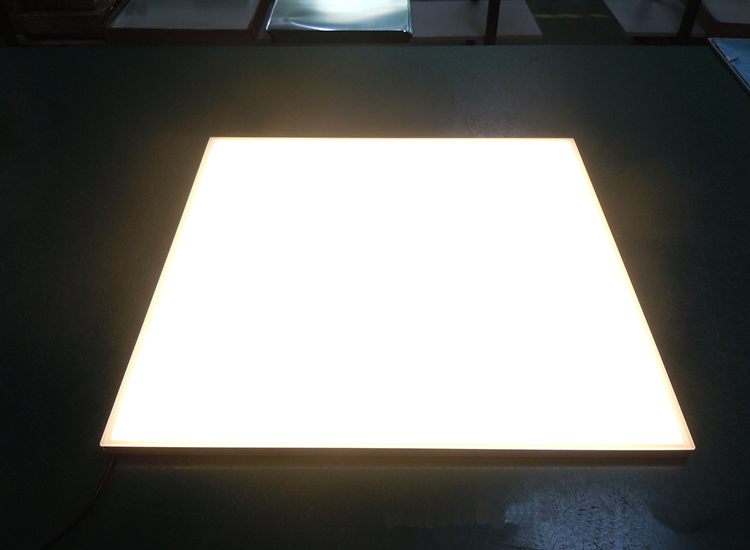

6. frameless led panel light testing
4. no frame led panel light
7. led 60x60-Product Detail
8. led Product Detail

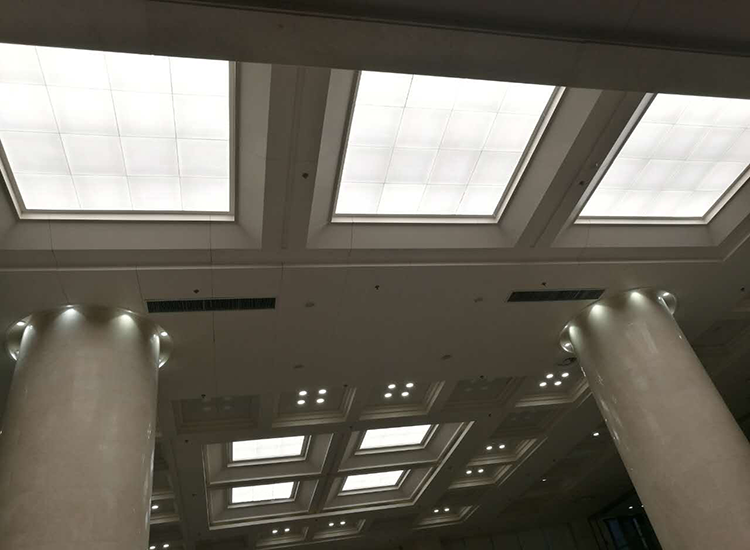

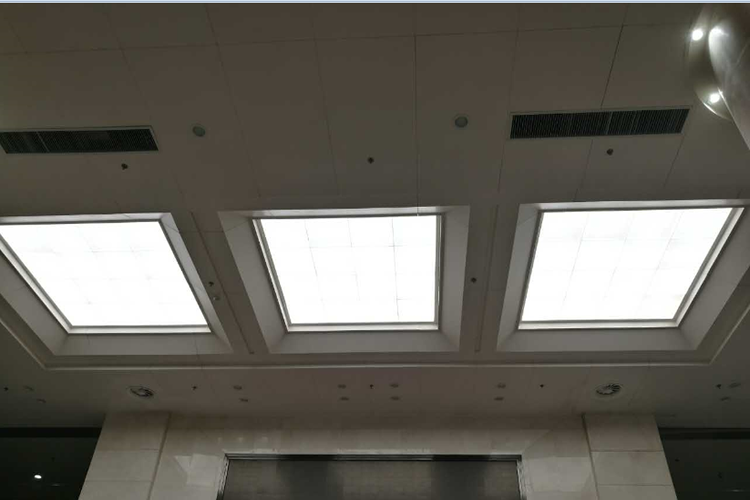

4. LED Panel Light Application:

Frameless led flat panel light is widely used in the offices, workshops, shopping malls, schools, libraries, hospitals, hotels, retail outlets, living rooms, airports, entertainment spaces, etc.

9. frameless led panel 600x600
10. frameless led panel light 60x60cm


Product detail pictures:

Newly Arrival Clean Room Led Panel Light - 20W 40W 30×60 CCT Dimmable Suspended No Frame LED Ceiling Panel Light – Lightman detail pictures

Newly Arrival Clean Room Led Panel Light - 20W 40W 30×60 CCT Dimmable Suspended No Frame LED Ceiling Panel Light – Lightman detail pictures

Newly Arrival Clean Room Led Panel Light - 20W 40W 30×60 CCT Dimmable Suspended No Frame LED Ceiling Panel Light – Lightman detail pictures
