Good Quality Panel Light - 36W 40W 48W 54W Microwave Sensor LED Flat Panel Light 600×600 – Lightman Detail:

1. Product Features of Microwave Sensor LED Ceiling Panel Light.

• Luminous efficacy >80 lm/w for energy savings of up to 50% versus traditional fluorescent fixtures.

• Elegant low profile (10mm ultra-thin frame) for new lighting design concepts.

• Enhanced optics which enable the flat panel to meet low glare requirements

• Unique circuit design to avoid any problem with light output caused or influenced by single faulty LED.

• 120° wide beam angle for even light distribution.

• Full compatibility with intelligent lighting control systems for improved energy efficiency and savings.

•Hassle-free installation – designed to drop directly into your drop ceiling, or can be surface-mounted or suspended.

•No mercury or other hazardous substances; No RF interference.

2. Product Specification:

Model No

PL-6060-36W

PL-6060-40W

PL-6060-48W

PL-6060-54W

Power Consumption

36 W

40 W

48 W

54 W

LED Qty(pcs)

  204pcs

204 pcs

252 pcs

280 pcs

LED Type

SMD 2835

Color Temperature (K)

2700 - 6500K

Color

Warm/Natural/Cool White

Light Efficiency (lm/w)

85lm/w～120lm/W

Dimension

595x595x10mm

Beam Angle (degree)

>120°

CRI

 >80Ra / >90Ra

Power Factor

>0.95

Input Voltage

AC180V - 260V/100~240Vac

Frequency Range (Hz)

50 - 60Hz

Working Environment

 Indoor

Material of Body

Aluminum alloy frame and PS Diffuser

Frame Color RAL

Pure white/RAL9016; Silver

IP Rating

IP20

IK Grade

IK06

Operating Temperature

-20°~65°

Dimmable Solution

  Dali/0~10V/PWM/Triac Optional

Life span

60,000hours

Warranty

3 Years or 5 Years

3. LED Panel Light Pictures:

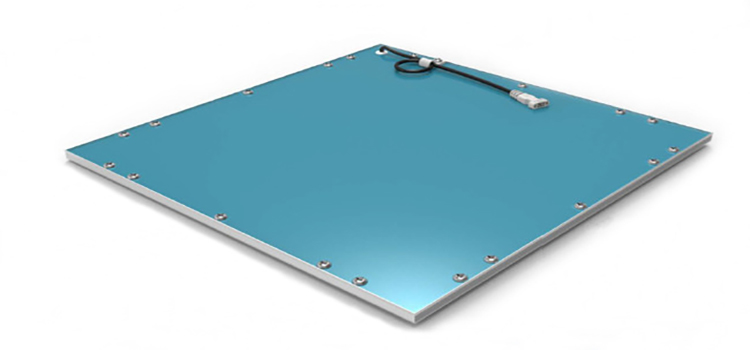

1. led ceiling panel light with frame

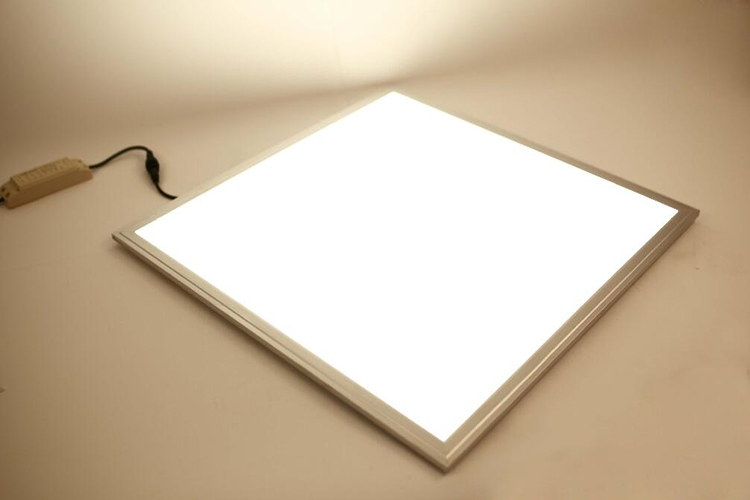

2. microwave sensor led panel light 60x60cm
3. microwave sensor switch for 60x60 led panel
4. microwave sensor led panel light
7. led 60x60-Product Detail
8. led Product Detail

4. LED Panel Light Application:

Our led panel light is widely used for commercial lighting, office lighting, hospital lighting, clean room lighting etc. It is popular to be installed in office, school, supermarket, hospital, factory and institution building etc.

Recessed Installation Project:

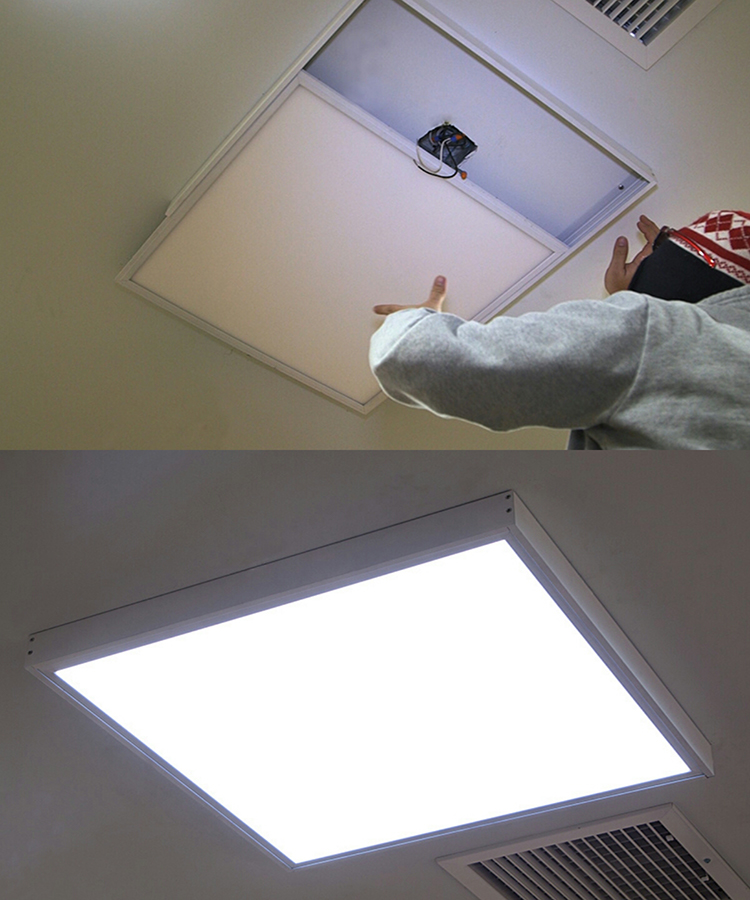

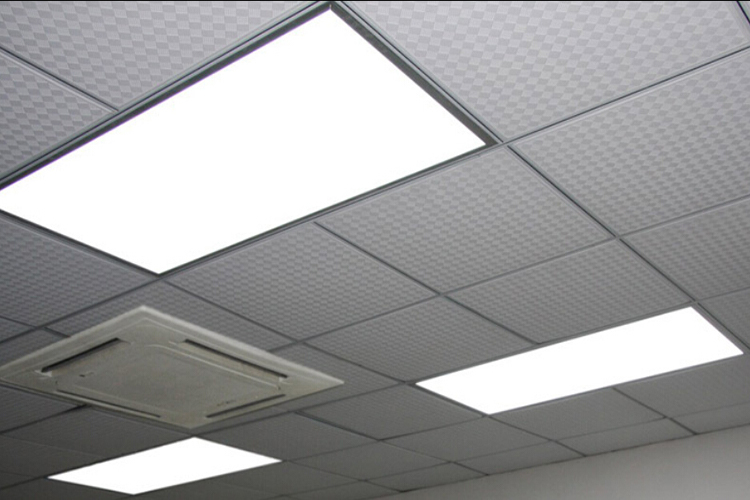

7. recessed led ceiling panel light

Wall Mounted Project:

10. wall mounted led panel installation example

Suspended Installation Project:

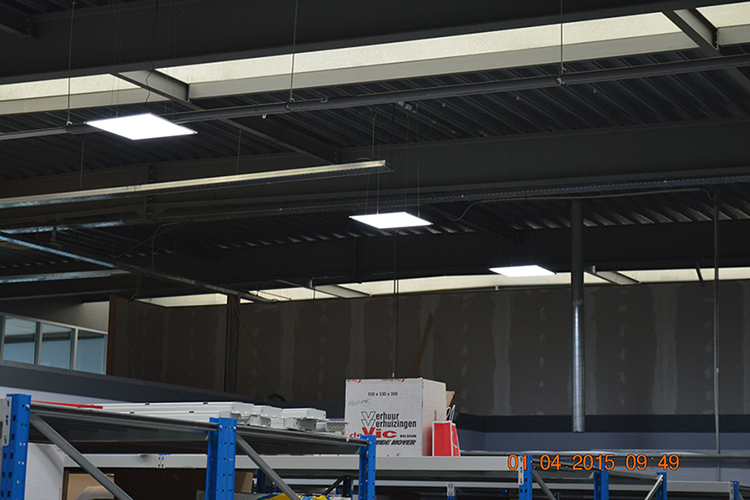

9. suspending led panel

Surface Mounted Installation Project:

8. surface mounted installation example-1

Product detail pictures:

Good Quality Panel Light - 36W 40W 48W 54W Microwave Sensor LED Flat Panel Light 600×600 – Lightman detail pictures

Good Quality Panel Light - 36W 40W 48W 54W Microwave Sensor LED Flat Panel Light 600×600 – Lightman detail pictures

Good Quality Panel Light - 36W 40W 48W 54W Microwave Sensor LED Flat Panel Light 600×600 – Lightman detail pictures
