Excellent quality Led Panel Light 2×2 - IP44 1 Hour 2Hours Emergency Time 295×295 Dimmable Square LED Panel Lamp – Lightman Detail:
1.Product Introduction of 30×30 Emergency LED Panel Light.
• LED Lighting Panel adopts aircraft aluminum 6063 wire drawing technology, elegant edges
ultra thin design.
• Nano-diffusion technology excellent PMMA transparency perfect luminous efficiency.
• Lightman led ceiling light panel uses high quantity SMD LEDs, luminous uniformity with long lifespan.
• Electrical saving up to 50% compared to Fluorescent lamp, high brightness, lights up evenly
• With FCC, CE, SAA, ROHS certificates etc, no UV/IR radiation, anti interference, lead free and environmental friendly.
• 3 years or 5-years warranty, long lifespan, reducing replacement costs.
2. Product Parameter:
|
Model No |
PL-3030-12W |
PL-3030-18W |
PL-3030-20W |
|
Power Consumption |
12 W |
18 W |
20 W |
|
Luminous Flux (Lm) |
1080~1140lm |
1620~1710lm |
1800~1900lm |
|
LED Qty (pcs) |
50pcs |
96pcs |
100pcs |
|
LED Type |
SMD 2835 |
||
|
Emergency Time |
1Hour, 2Hours, 3Hours for options |
||
|
Color Temperature (K) |
3000-6500K |
||
|
Color |
Warm/Natural/Cool White |
||
|
Dimension |
295*295*11mm |
||
|
Beam Angle (degree) |
>120° |
||
| Light Efficiency (lm/w) |
>85lm/w |
||
|
CRI |
>80 | ||
|
Power Factor |
>0.95 |
||
|
Input Voltage |
AC 85V - 265V |
||
|
Frequency Range (Hz) |
50 - 60Hz |
||
|
Working Environment |
Indoor |
||
|
Material of Body |
Aluminum alloy frame and PS diffuser |
||
|
IP Rating |
IP20 |
||
|
Operating Temperature |
-20°~65° |
||
|
Dimmable |
Optional |
||
|
Life span |
50,000hours |
||
|
Warranty |
3 Years or 5 Years |
||

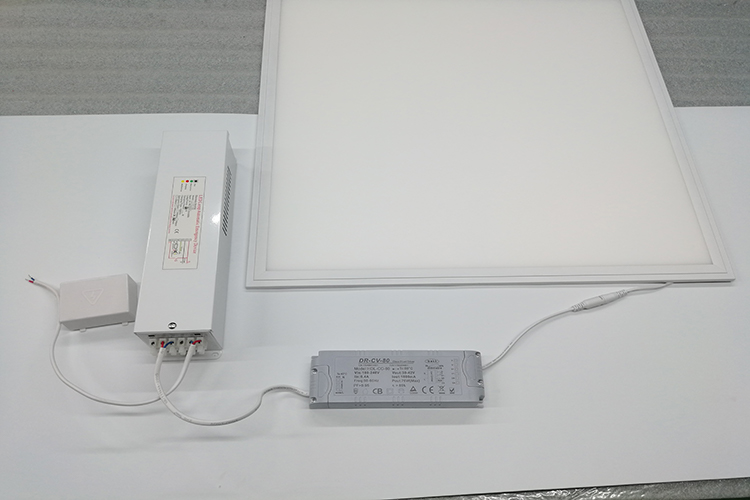

3.LED Panel Light Pictures:







4. LED Panel Light Application:
Frameless LED Sky Panel Light is widely used for office, hospital, bedroom, shopping mall, schools, factories, gym, hotel, anime city etc.

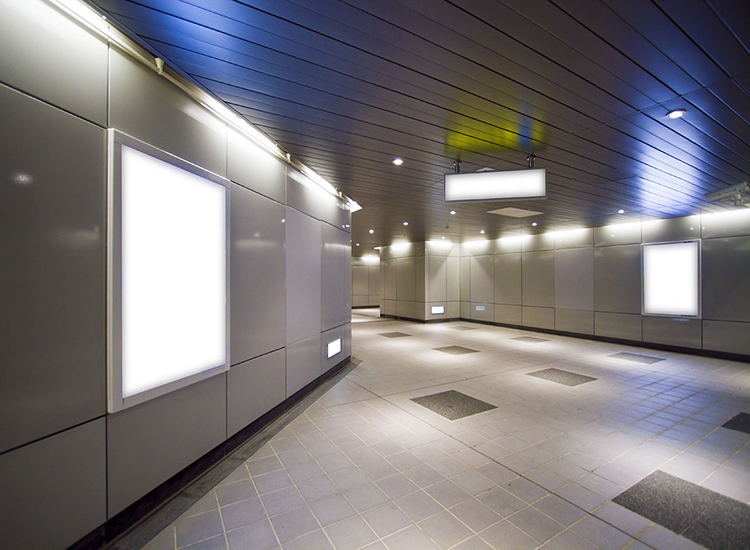

Wall Mounted Installation Project:

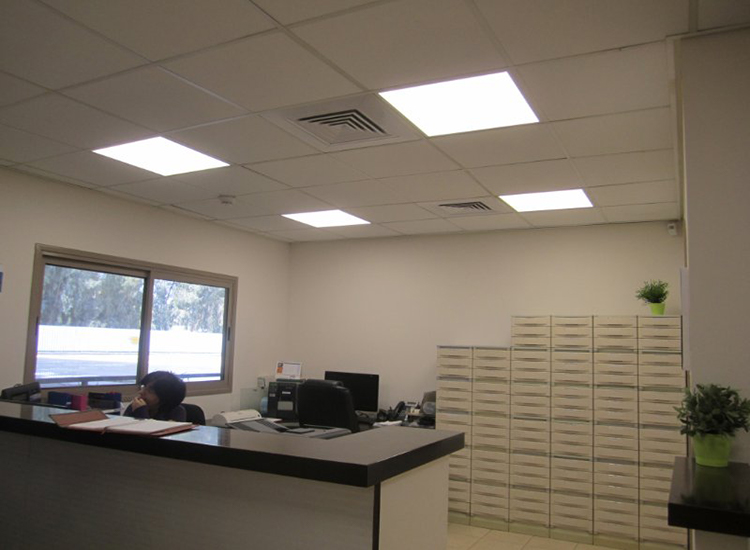

Recessed Installation Project:

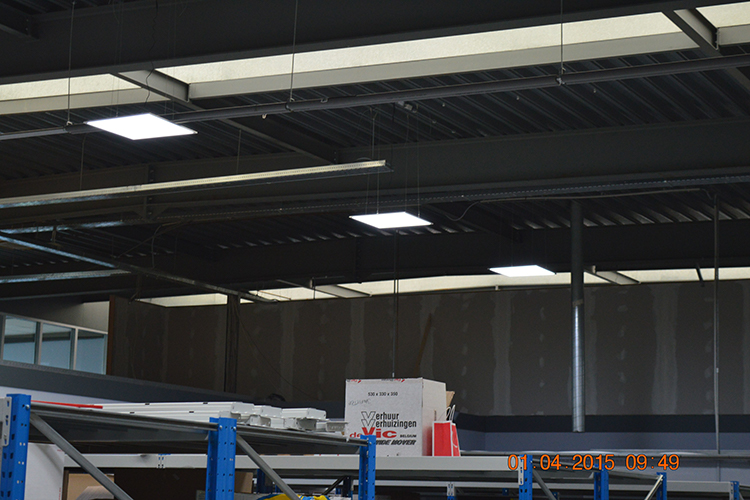

Suspended Installation Project:

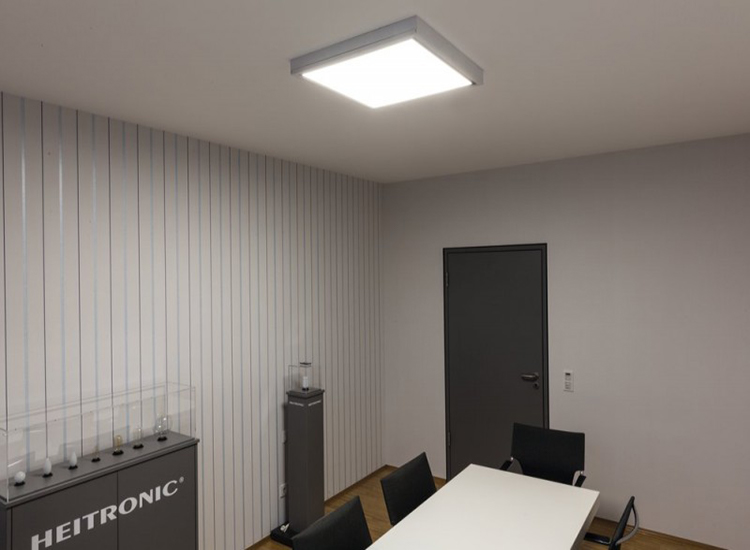

urface Mounted Installation Project:

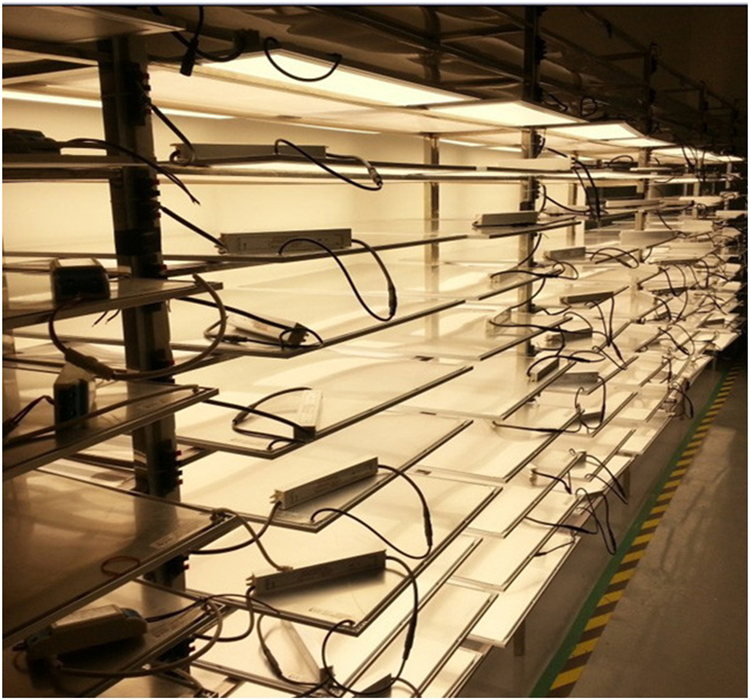

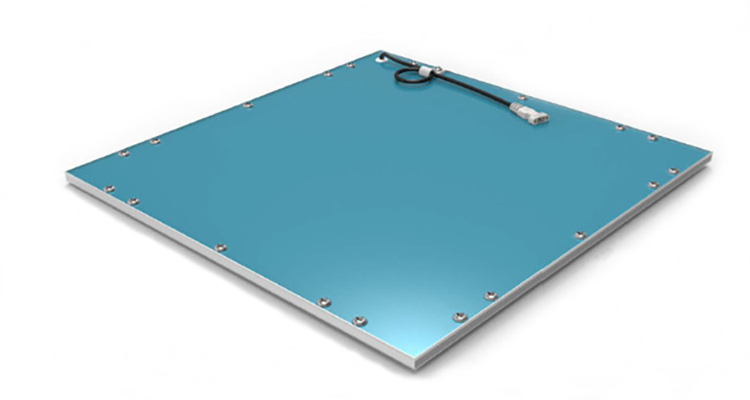

Product detail pictures:
