60×120 Badminton Hall Special LED Panel Light Table Tennis Volleyball Hall Lighting

Designed specifically for Badminton Court etc, our panel lights use backlit solution to emit light evenly across the entire area. This ensures that every corner of the venue is well-lit, creating the perfect environment for athletes and spectators. In addition, our led panel lights are equipped with professional anti-glare diffuser to provide optimal protection for people’s eyes and enhance the overall experience.

Item:: 60x120 Badminton Court Back-lit LED Panel Light

Power: : 120W /240W

CRI:: >80

Input Voltage:: AC220~240V,50/60HZ

Lifespan:: ≥50000 Hours

Send email to us Download as PDF

Products categories

Product Detail

Installation Guide

Project Case

video

1.Product Introduction of 30x120 Backlit LED Panel Light.

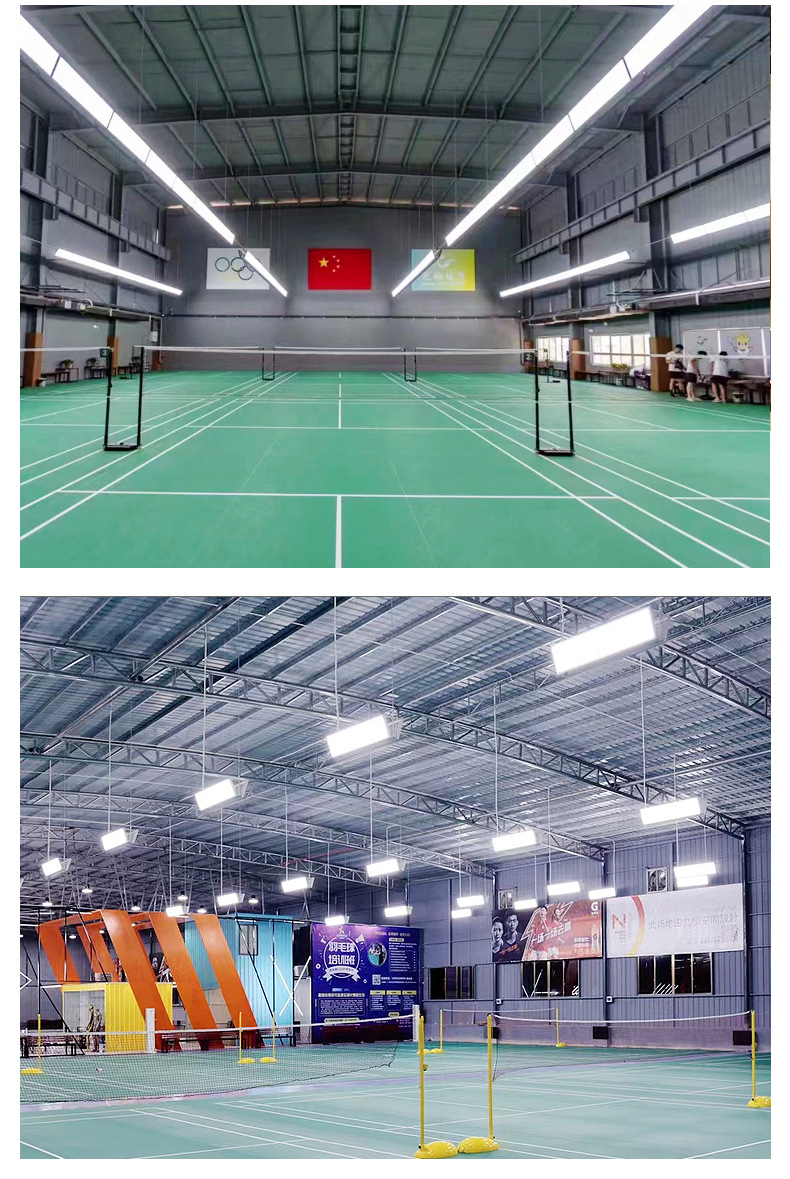

● Using for badminton hall, table tennis court, basketball court, volleyball court and other stadium places.

● The patent designed backlit led panel light is CE TUV approved. Distributing light through perfectly PP diffuser, the panel light shines evenly.

● High luminous efficiency, low power consumption.

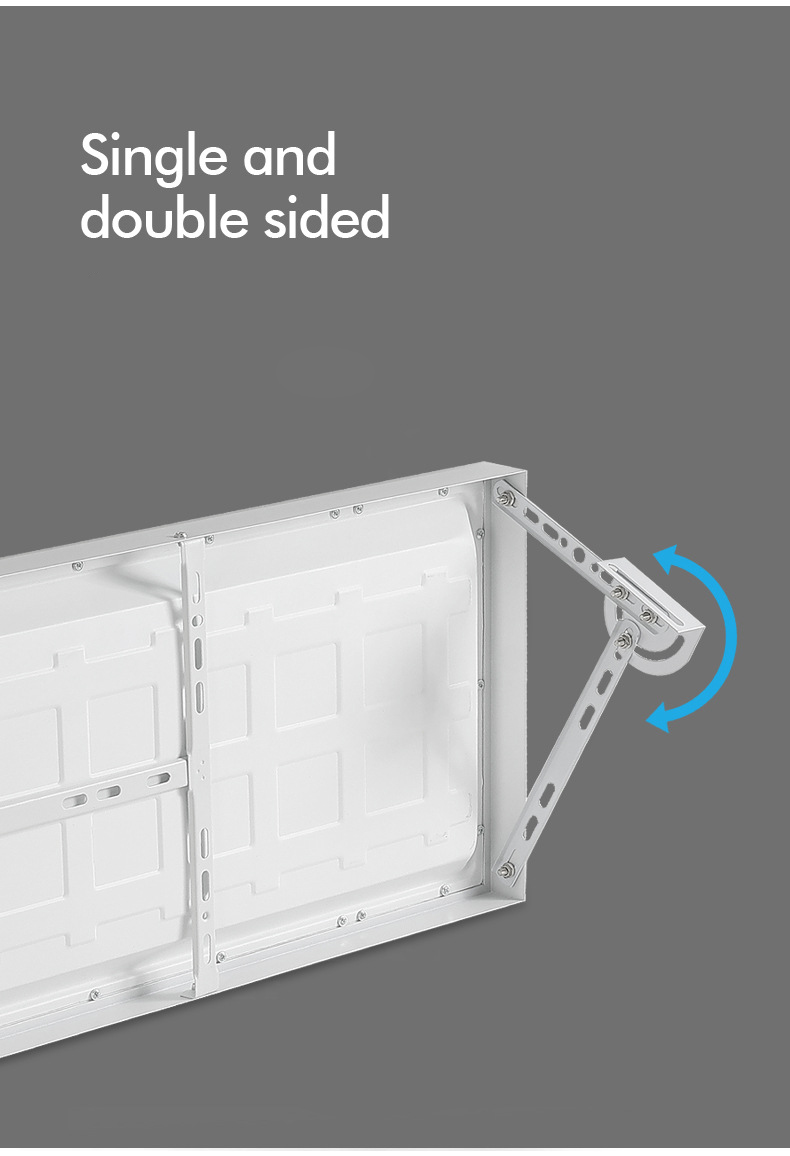

● There are single sided and double sided structure options.

● Using professional anti-glare diffuser.

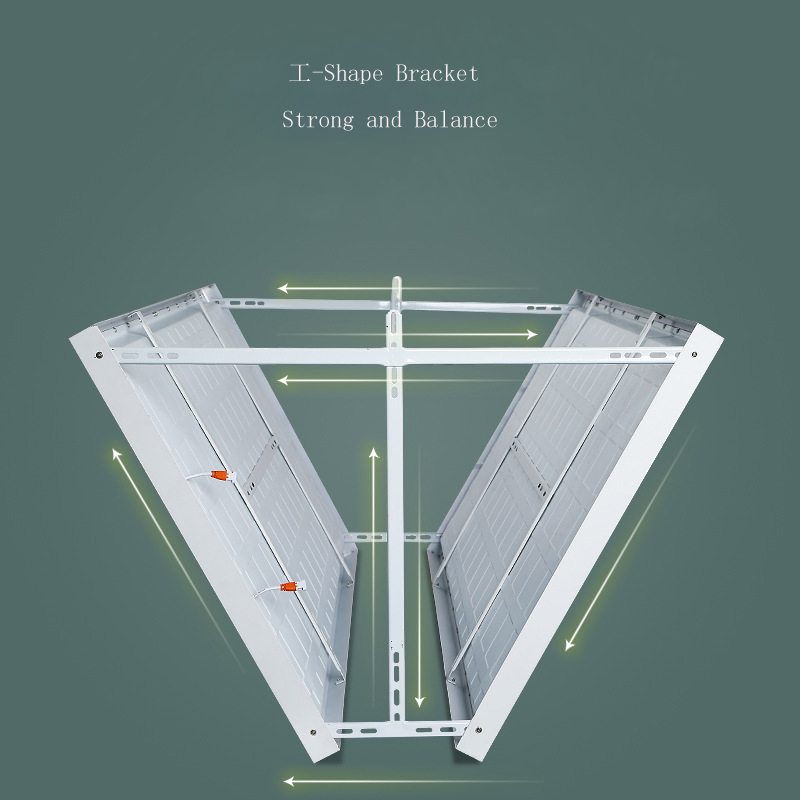

● Backlit led panel supports single sided wall mounted, single sided hanging, double sided hanging and surface installation ways.

2. Product Parameter:

Model No	PL-30120-60W	PL-30120-120W	PL-60120-120W	PL-60120-240W
Power Consumption	60W	120W	120W	240W
Dimension (mm)	300120030mm	300120030mm	600120030mm	600120030mm
LED Type	SMD2835
Color Temperature(K)	3000K/4000K/6000K
Luminous Flux(Lm/w)	90lm/w
Input Voltage	AC 220V - 240V, 50 - 60Hz
CRI	>80
Power Factor	>0.9
Working Environment	Indoor
Material of Body	Aluminum
IP Rating	IP20
Operating Temperature	-20°~65°
Installation Option	Wall Mounted/Suspended
Life span	50,000hours
Warranty	3 Years
